ACD-2064

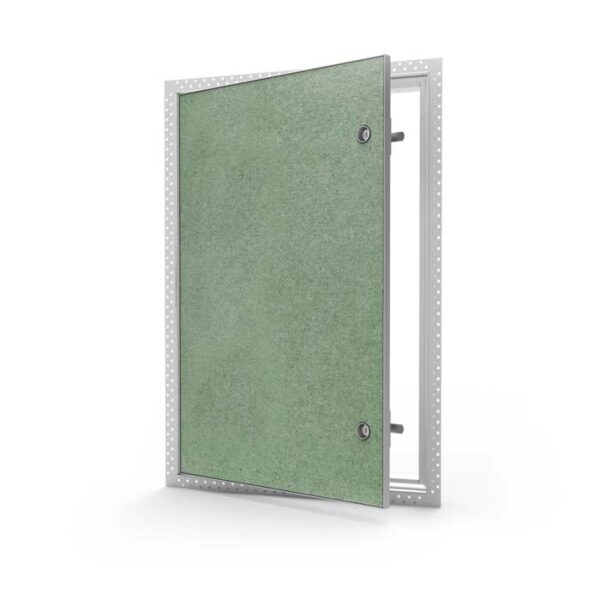

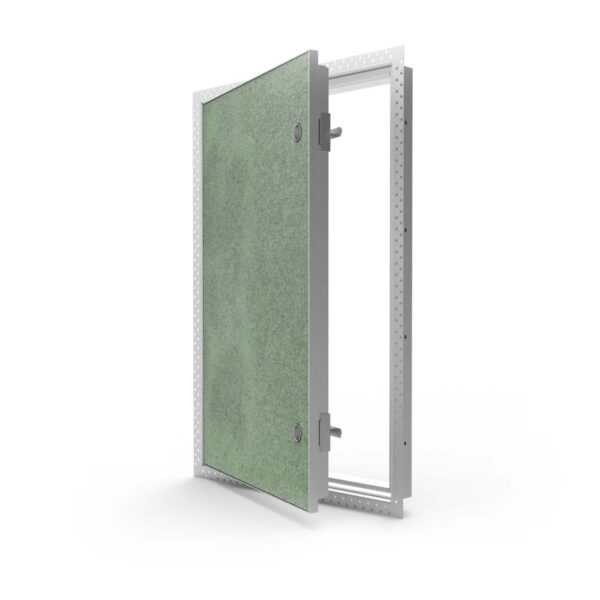

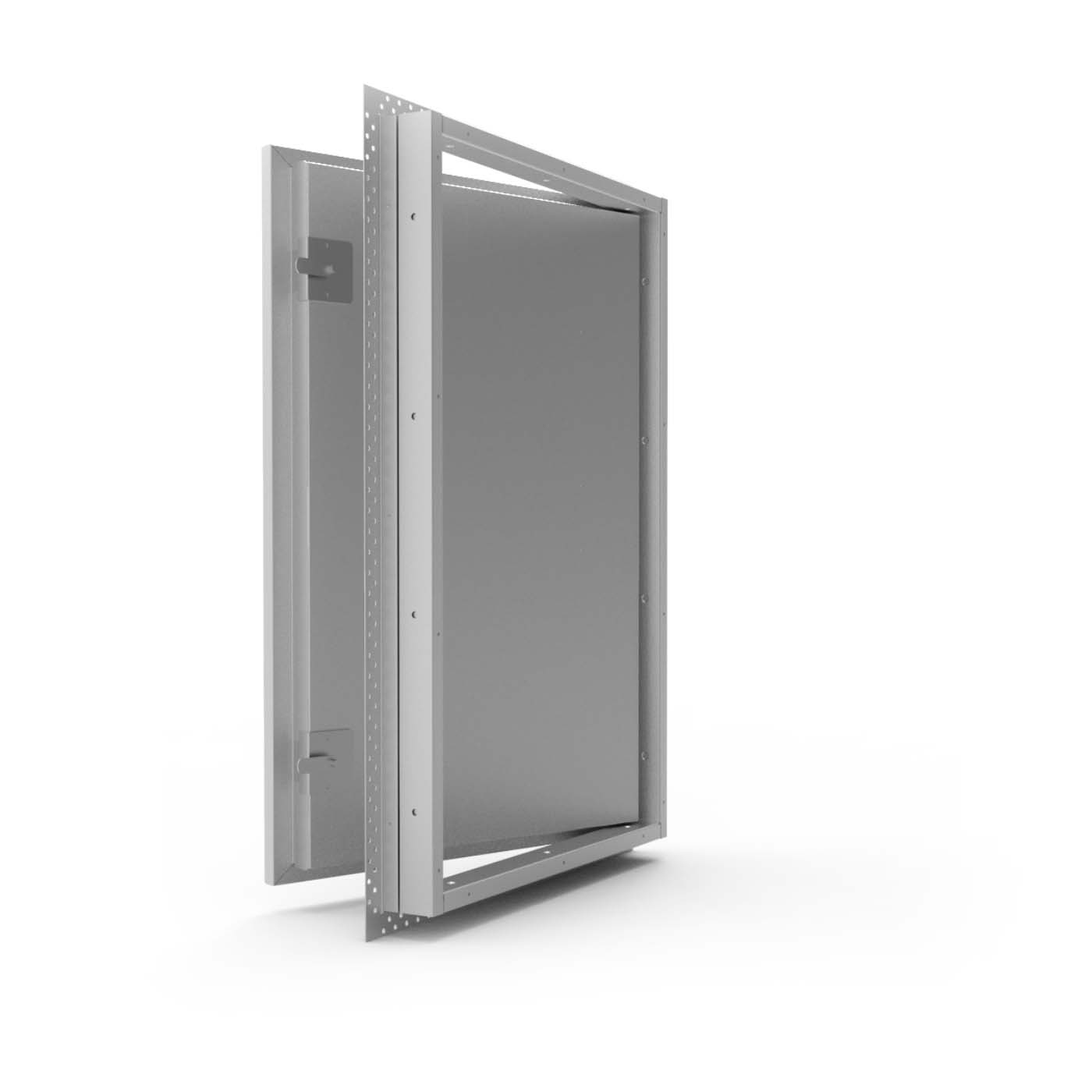

Acudor ACD-2064 : This recessed access door is ideal for use on acoustic drywall walls and ceilings where STC (sound transmission class) and OITC (exterior-indoor transmission class) are maintained
- Material:
18-gauge satin steel
- Lid:
18-gauge, encapsulated design with 2 “thick acoustic mineral liner and 0.11” thick mineral-filled vinyl barrier
- Frame:
18-gauge, press-bent for strength and rigidity, with 1 “wide molding flanges 1” thick acoustic mineral plating
- Packaging:
1/8 “x 1/2” neoprene rubber with adhesive.
- Hinge:
Stainless steel piano hinge with continuous exposure.
- Standard Lock:
Screwdriver operated Compression Latch
- Acoustic Rating:
This cap has been tested and evaluated for ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16) and certified for STC Classification 64 and OITC Classification 54.
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | |||
|---|---|---|---|---|
| In. | mm | Bolt | lbs.kg | . |
| 12 X 12 | 305 X 305 | 1.0 | 14.0 | 6.4 |
| 16 X 16 | 400 X 400 | 1.0 | 22.0 | 10.0 |
| 18 X 18 | 457 X 457 | 1.0 | 25.0 | 11.3 |
| 24 X 24 | 610 X 610 | 1.0 | 38.0 | 17.2 |
| 24 X 36 | 610 X 914 | 2.0 | 60.0 | 27.2 |
What is the value for you?
Wide range of models designed for specialized applications, including flush doors, recessed, interior, exterior, airtight, waterproof, anti-ligature, acoustic, tile, marble, plaster, fan-coil doors, doors for Air Handling Units, Clean Rooms and Laboratories
The highest STC (Sound Transmission Class) and OITC (Outdoor to Indoor Transmission Class) acoustic ratings on the market
Custom designs available upon request, including automatic opening, inward opening, vandal-resistant, and special materials or finishes
Available in Aluminum, Steel, Stainless Steel, Galvanized Steel, Galvanneal Steel
Product Features
Zinc-coated steel provides superior corrosion resistance.
18-gauge door panel, encapsulated design with 2 “thick acoustic mineral coating and 0.11” thick mineral filled vinyl barrier
Recessed door fitted with 5/8″ thick drywall, ensures a finish similar to the surroundings
Tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16) and certified to STC Classification 64 and OITC Classification 53
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
