AL-9500

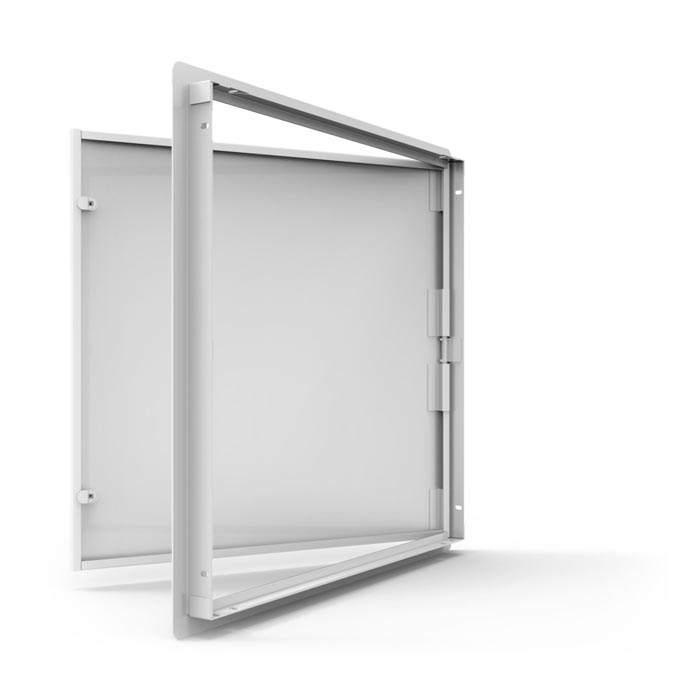

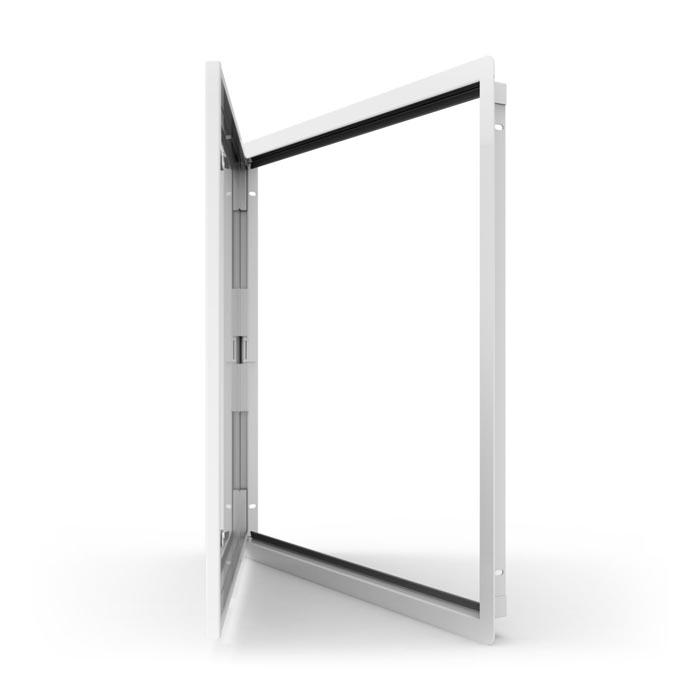

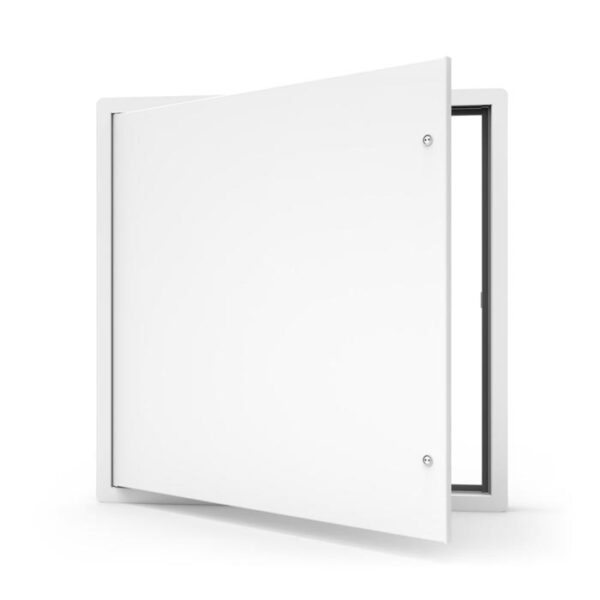

Acudor AL-9500 : Designed for anti-ligature installation. Designed to provide a fully sealed fit on all types of walls and ceilings. This cap is commonly used in prisons, correctional facilities, psychiatric hospitals, etc.
- Door Frame:
Stainless Steel or Steel: 14-gauge lid, 14-gauge mounting frame, flange will be 1″ wide
- Hinge:
Hidden
- Packaging:
Pemko S88 Adhesive Backed Bulb Silicone Gasket
- Standard Deadbolt:
Stainless Steel Cam Bolt Operated with Screwdriver and Key Lock
- Optional deadbolts/locks:
Torx Head, Cylinder Lock, Mortise Lock
- Finishing:
Baked white primer coat (additional finishing paint recommended for increased corrosion resistance)
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 12 X 12 | 305 X 305 | 9.0 | 4.1 |
| 16 X 16 | 406 X 406 | 10.0 | 4.5 |
| 18 X 18 | 457 X 457 | 13.0 | 5.9 |
| 24 X 24 | 609 X 609 | 20.0 | 9.1 |
| 24 X 36 | 609 X 914 | 31.0 | 14.1 |
The wall opening is the nominal size of the door + 3/8″ (9mm)

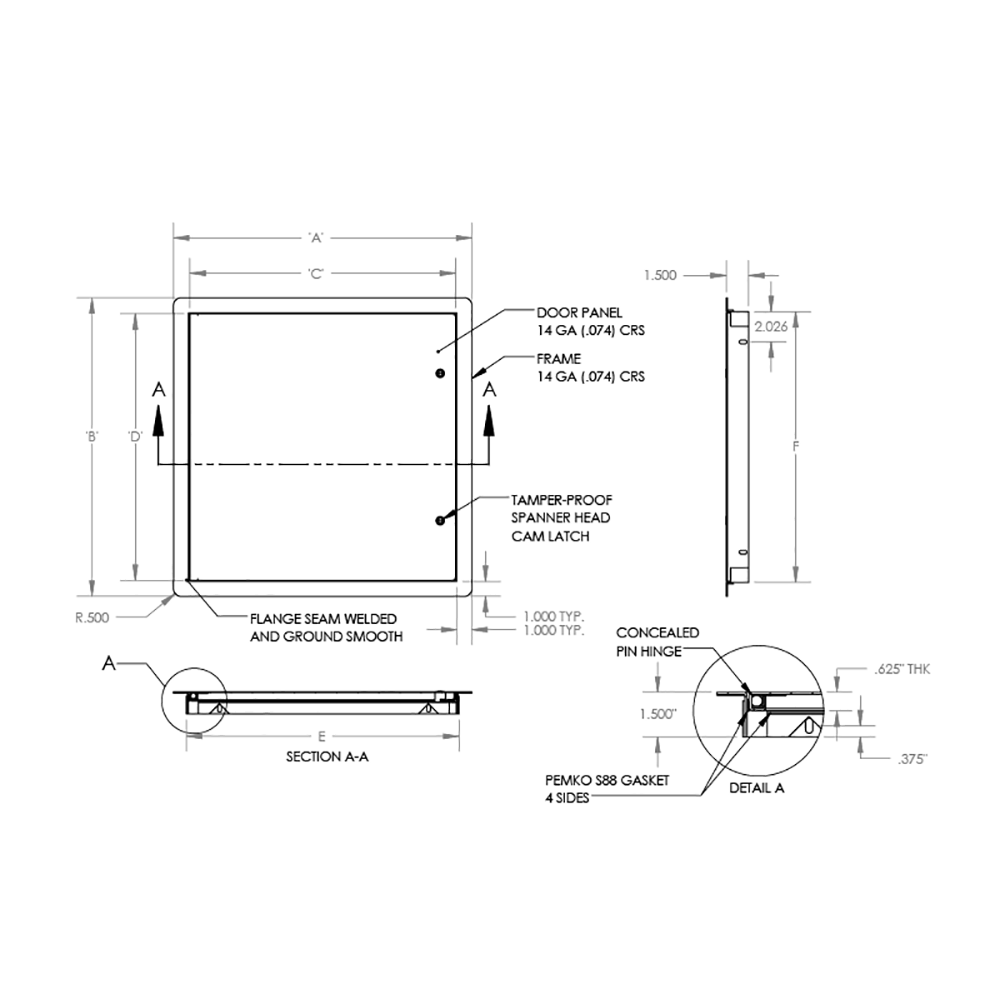

For detailed specifications, see the presentation sheet
What is the value for you?
Wide range of models designed for specialized applications, including flush doors, recessed, interior, exterior, airtight, waterproof, anti-ligature, acoustic, tile, marble, plaster, fan-coil doors, doors for Air Handling Units, Clean Rooms and Laboratories
The highest STC (Sound Transmission Class) and OITC (Outdoor to Indoor Transmission Class) acoustic ratings on the market
Custom designs available upon request, including automatic opening, inward opening, vandal-resistant, and special materials or finishes
Available in Aluminum, Steel, Stainless Steel, Galvanized Steel, Galvanneal Steel
Product Features
Designed for anti-ligature installation
Fully sealed fit on all types of walls and ceilings.
Formed door panel with reinforced edges
Tamper-proof key head cam latch
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
