ASVB

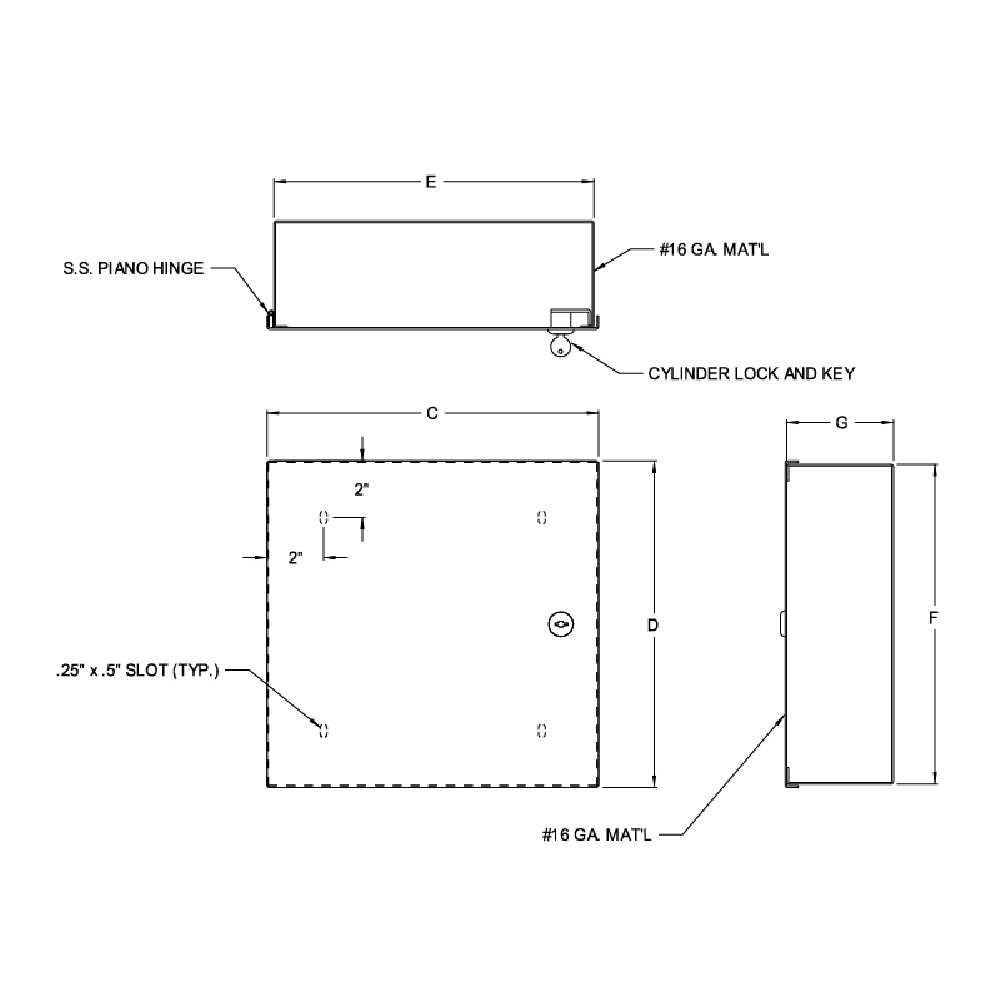

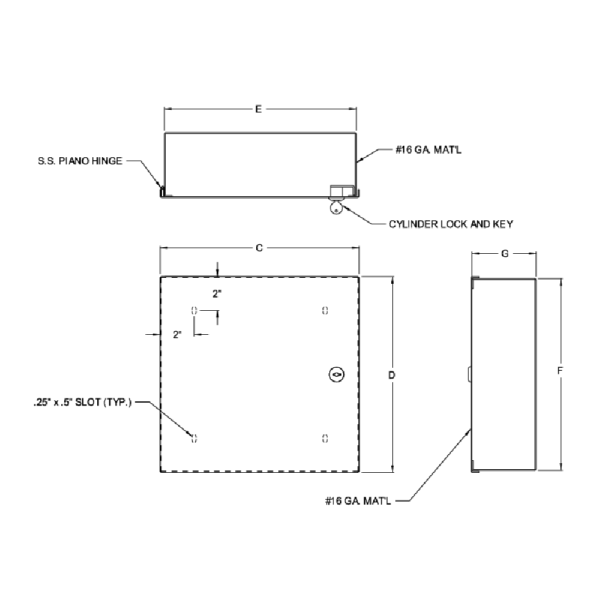

Acudor ASVB : Provides easy access to valves and controls that extend outside the finished wall, requiring protection by means of a closed box.
- Material:
Stainless Steel or Steel: Door and Box
- Door:
16-gauge, overlaps with the case, providing a tight secure fit
- Box:
16 gauge, fully enclosed, fully attached to the frame When required, the case can be made with the back open.
- Hinge:
Continuous and exposed piano hinge
- Standard Deadbolt:
Cylinder lock and key. Also available: Screwdriver Operated Cam Bolt, Allen Head Cam Bolt, Key Cam Bolt, Level Recessed Handle, Butterfly Handle,
- Finishing:
Stainless Steel: Type 304 #4 Satin Polishing or Steel: 5-Stage Iron Phosphate Preparation with Baked White Finish
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
Â
| Nominal Size Door WyH | Weight Per Door | |||
|---|---|---|---|---|
| In. | mm | Opening | lbs.kg | . |
| 8 x 8 x 4 | 203 x 203 x 102 | 1 | 5.2 | 2.4 |
| 8 x 8 x 6 | 203 x 203 x 152 | 1 | 6.4 | 2.9 |
| 8 x 8 x 8 | 203 x 203 x 203 1 | 7.3 | 3.3 | |
| 12 x 12 x 4 | 305 x 305 x 102 | 1 | 9.2 | 4.2 |
| 12 x 12 x 6 | 305 x 305 x 152 | 1 | 11.0 | 5.0 |
| 12 x 12 x 8 | 305 x 305 x 203 | 1 | 12.7 | 5.8 |
wall opening is W+3/8″ (9mm)
For detailed specifications, see the presentation sheet
What is the value for you?
Provides safe and convenient access to Valves and Controls
Available in a model for recessed, surface-mounted and front-of-wall installations
Constructed with materials suitable for different corrosion environments
Offers a wide range of Lock options
Product Features
The depth of the valve box can be modified to meet all valve and control requirements
When required, peepholes, blinds, etched plates can be supplied, along with special holes for pipes or ducts.
16-gauge, flush-frame door with rounded safety corners
Fully enclosed box, fully attached to the frame. When necessary, the box can be made with the back open.
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
