AT-5020

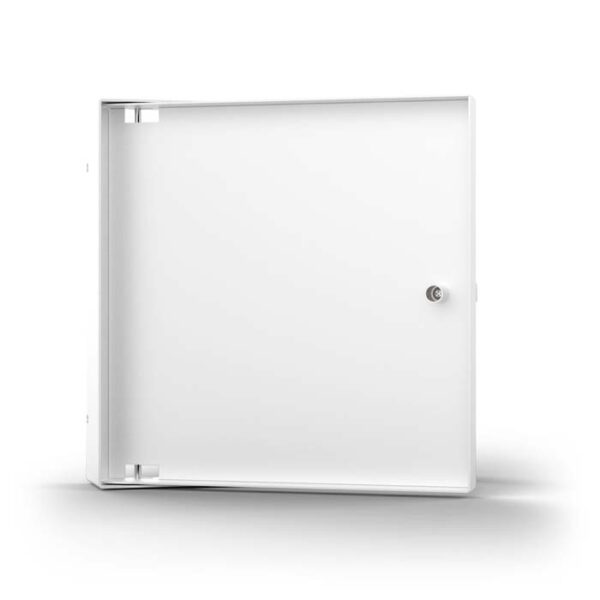

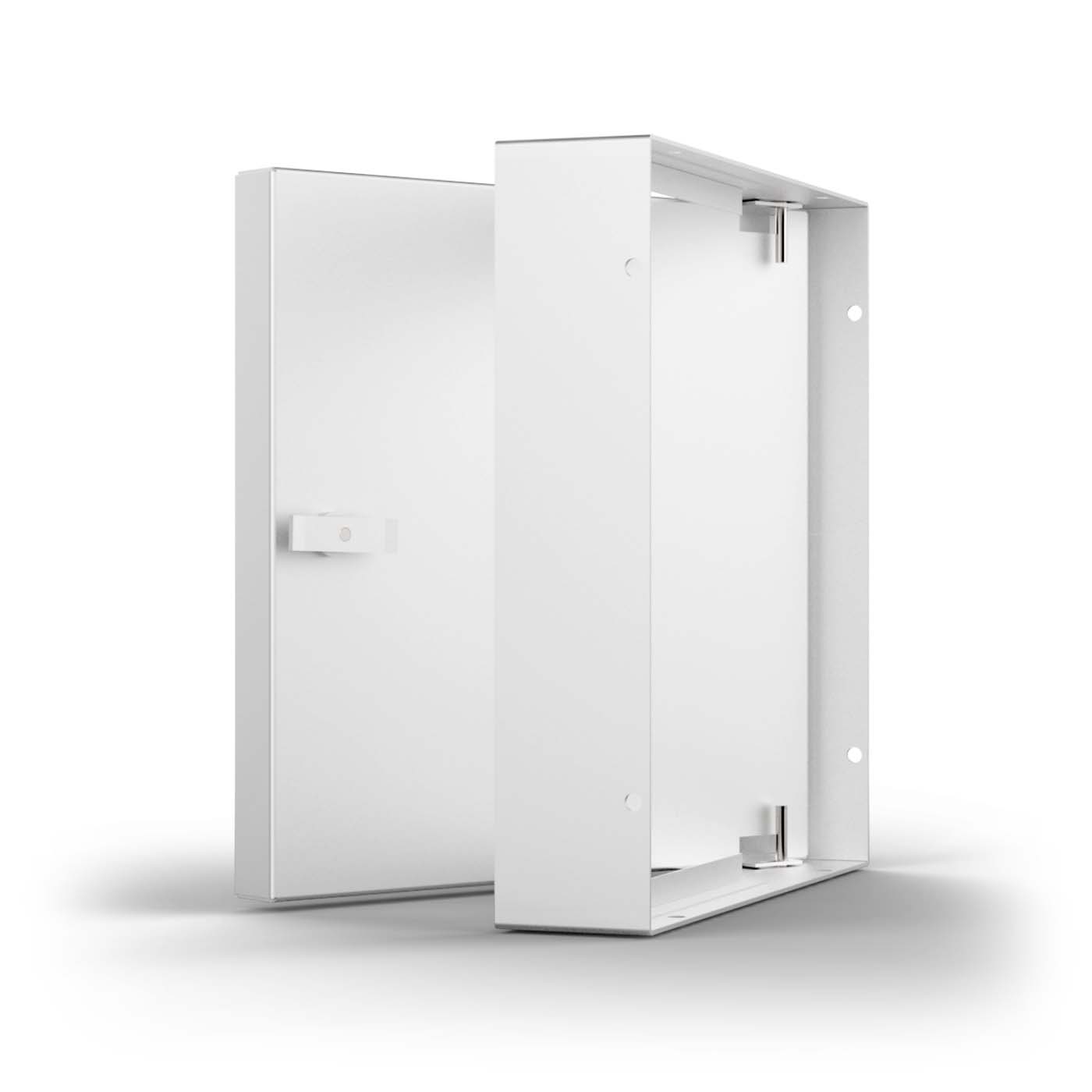

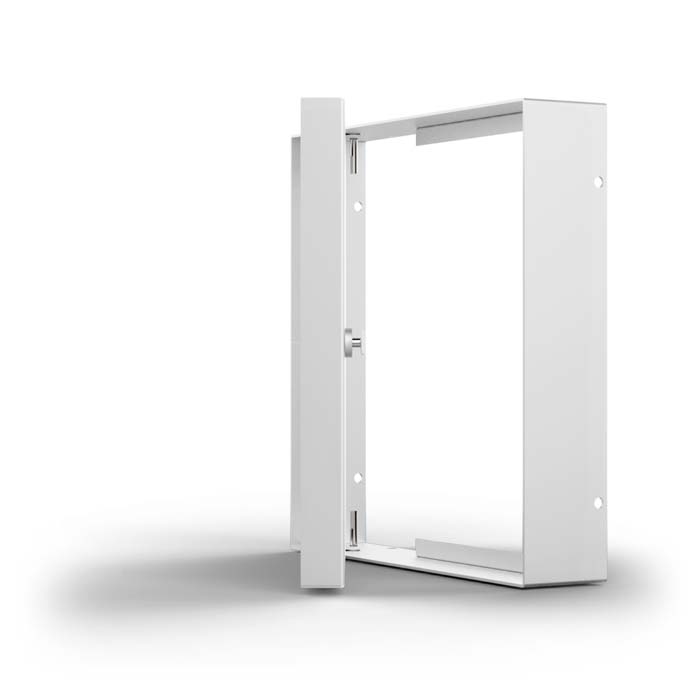

Acudor AT-5020 : Designed to provide a completely sealed fit on all types of walls and ceilings. This door is commonly used in clean rooms, laboratories, operating rooms, etc
- Material:
Material: Steel
- Door:
16 Gauge, Recessed 1″
- Mounting Frame:
14 gauge
- Hinge:
concealed, pivot rod type, for wall applications over 24″ x 24″ we supply a concealed pin hinge
- Standard Latch:
flush with the surface, screwdriver-operated cam latch
- Optional latches/locks:
Lock and key cylinder, Allen head cam latch, key head cam latch
- Finishing:
Baked white primer coat (additional finishing paint recommended for increased corrosion resistance)
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
Â
| The wall opening is the nominal size of the door | Weight Per Door | |||
|---|---|---|---|---|
| In. | mm | Bolt | lbs.kg | . |
| 12 X 12 | 305 X 305 | 1.0 | 5.9 | 2.7 |
| 18 X 18 | 457 X 457 | 2.0 | 10.8 | 4.9 |
| 24 X 24 | 610 X 610 | 2.0 | 21.0 | 9.5 |
| 24 X 36 | 610 x 914 | 2.0 | 30.0 | 13.6 |
The wall opening is the nominal size of the door + 3/8″ (9mm)
For detailed specifications, see the presentation sheet
What is the value for you?
Wide range of models designed for specialized applications, including flush doors, recessed, interior, exterior, airtight, waterproof, anti-ligature, acoustic, tile, marble, plaster, fan-coil doors, doors for Air Handling Units, Clean Rooms and Laboratories
The highest STC (Sound Transmission Class) and OITC (Outdoor to Indoor Transmission Class) acoustic ratings on the market
Custom designs available upon request, including automatic opening, inward opening, vandal-resistant, and special materials or finishes
Available in Aluminum, Steel, Stainless Steel, Galvanized Steel, Galvanneal Steel

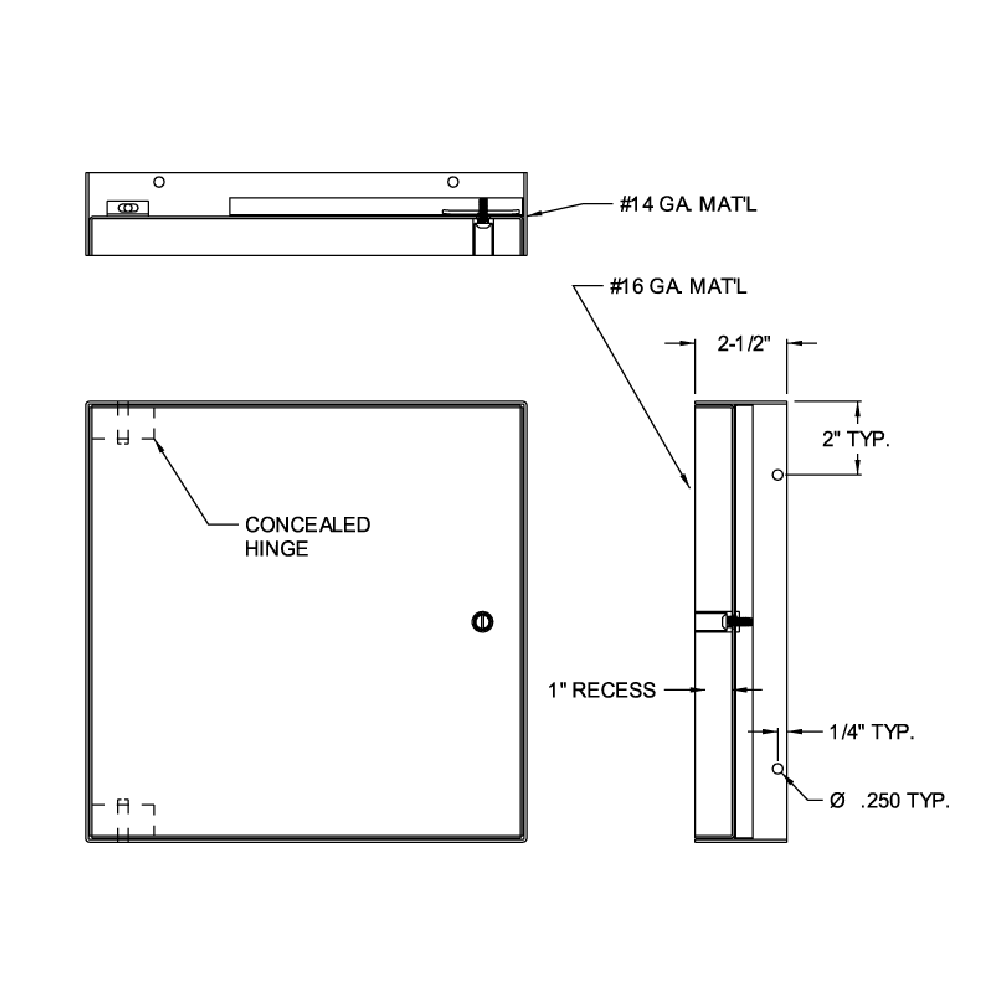

Product Features
Door panel is recessed 1″
Concealed hinge, pivoting rod type
Screwdriver-actuated cam latch, flush with the surface
5-Stage Iron Phosphate Preparation with a White Alkyd Baked Enamel Finish Primer Coat
