CD-5080-F
Acudor CD-5080-F : Economical access to fiberglass ductwork
- Material:
Galvanized steel
- Door:
24 Gauge
- Mounting Frame:
24 Gauge
- Packaging:

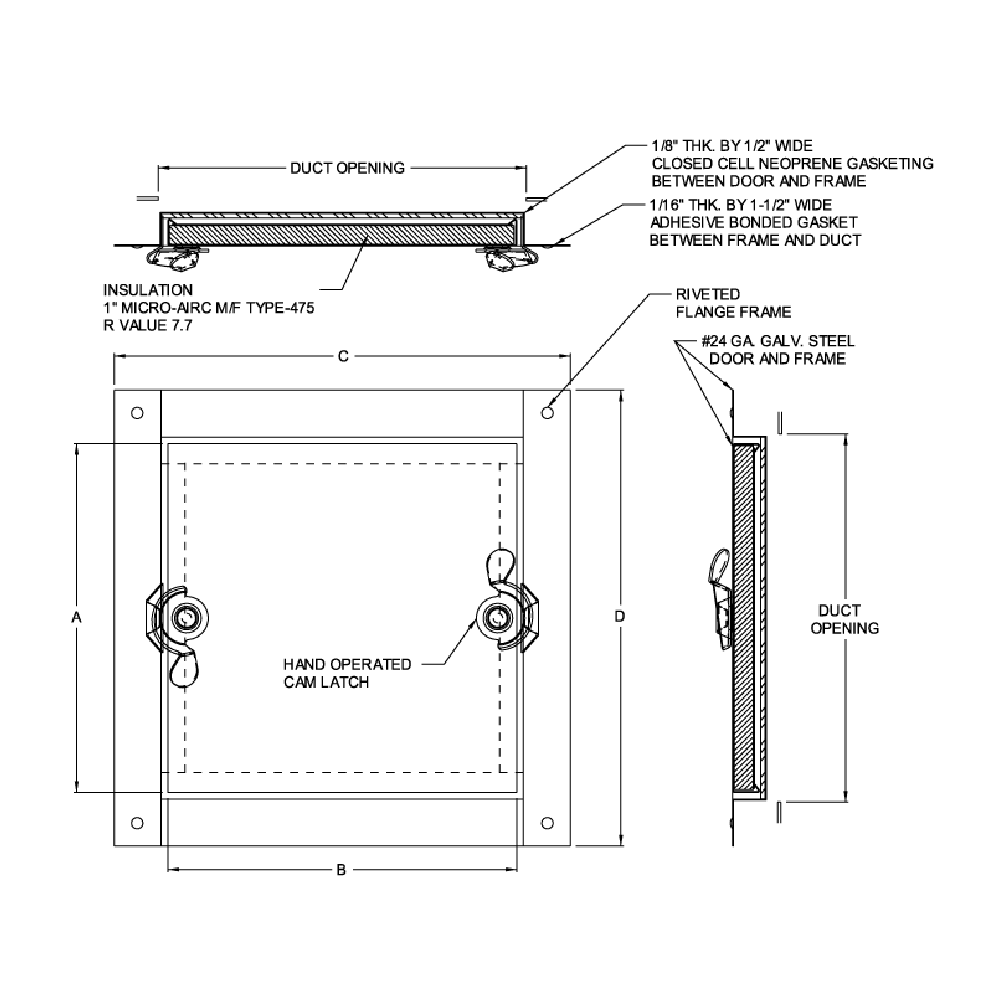

1/8 “thick by 1/2” wide closed-cell neoprene gaskets between door and frame. 1/16 “thick by 1-1/2” adhesive bonded gasket between frame and duct
- Isolation:
Micro-Airc M/F 1″ Type 475, R-Value 7.7
- Bolt:
Self-tightening cam bolt, hand operated
- Options:
Aluminum, stainless steel
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Wall Fitting | |||
|---|---|---|---|---|
| In. | mm | Apetura | lbs.kg | . |
| 6 x 6 | 152 x 152 | 2 | 1.00 | 0.5 |
| 8 x 8 | 203 x 203 | 2 | 1.25 | 0.6 |
| 10 x 10 | 254 x 254 | 2 | 2.00 | 0.9 |
| 12 x 12 | 304 x 304 | 2 | 2.50 | 1.1 |
| 14 x 14 | 356 x 356 | 4 | 3.25 | 1.5 |
| 16 x 16 | 406 x 406 | 4 | 4.00 | 1.8 |
| 18 x 18 | 457 x 457 | 4 | 5.50 | 2.5 |
| 20 x 20 | 508 x 508 | 4 | 9.00 | 4.1 |
| 24 x 24 | 610 x 610 | 4 | 12.00 | 5.4 |
The duct opening is the same as the nominal size of the door
For detailed specifications, see the presentation sheet
What is the value for you?
Designed for both Sheet Metal Ducting and Fiberglass Ducting
Available in multiple sizes and shapes to suit installation in Square, Rectangular and Circular Ducts
Flame Retardant Rated Grease Duct Doors are available
Designed for quick and hassle-free installation
Product Features
Economical Access to Fiberglass Ductwork and Ductwork
For use in fiberglass ductwork and low to medium pressure ducting
Dual cam – no hinge, detachable door panel
Micro-AIRC M/F TYPE-475 R insulation 1″ value 7.7
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
