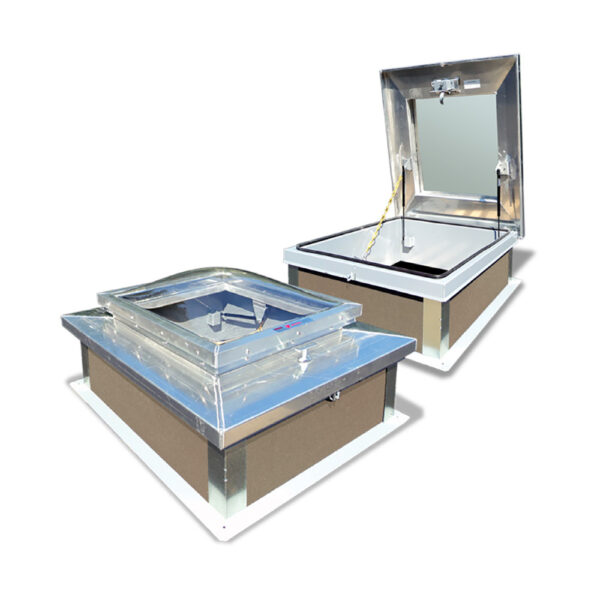

Dome Access (SS)
The roof hatch for access with galvanized dome are designed to provide convenient and economical access to the roof of a building. Polycarbonate domes provide the benefit of a skylight.

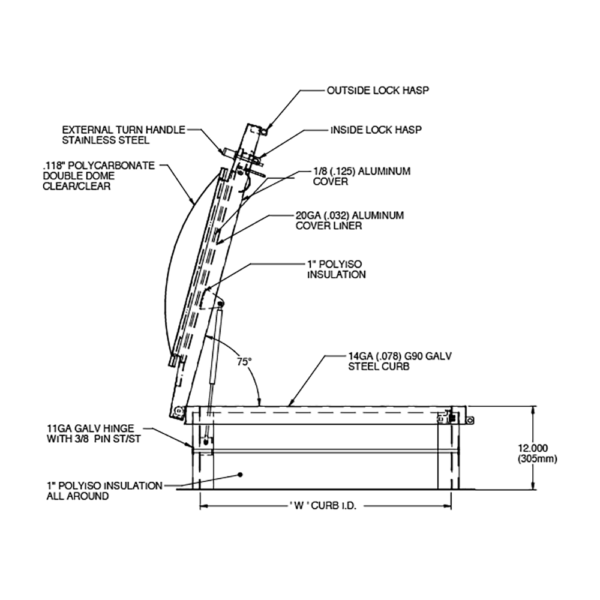

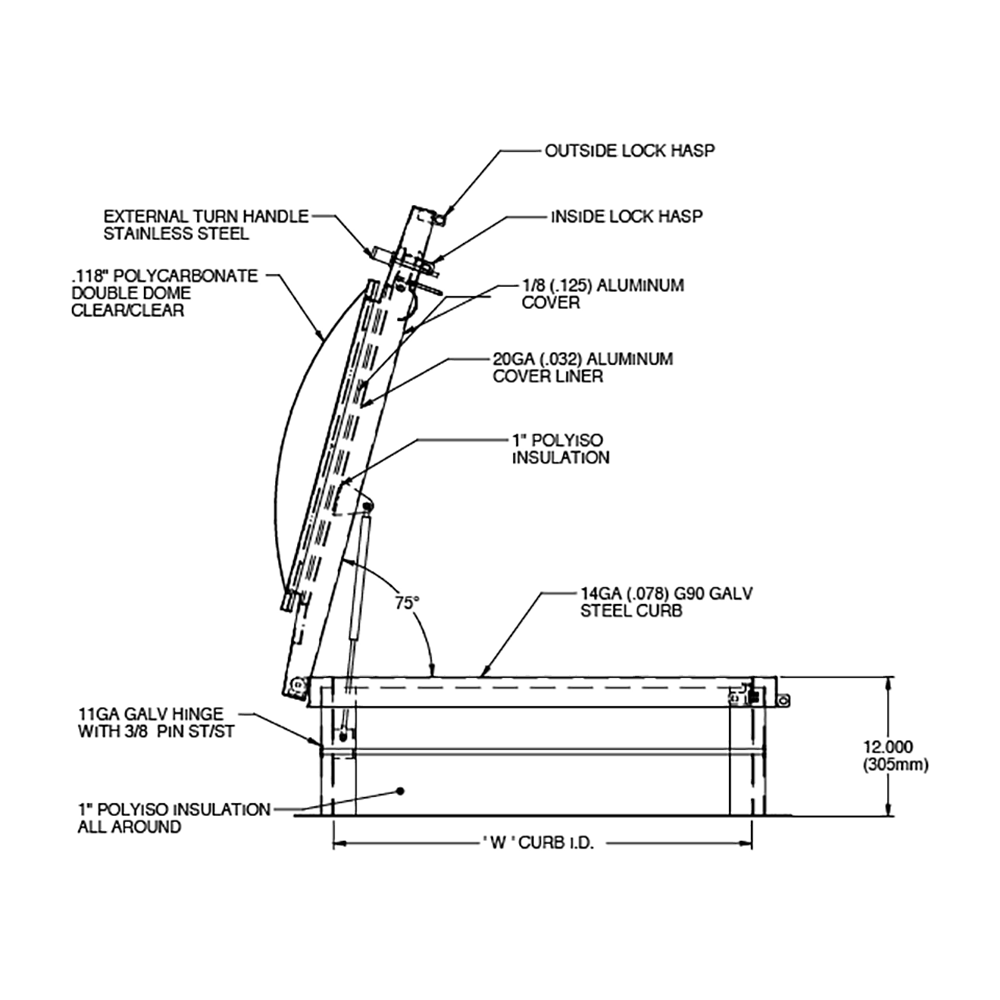

- Cover:
Dual-deck construction (“boxed type design”) with 1 “Polyiso (R-6) insulation and continuous EPDM foam reinforcement/weather seal packaging that bonds to the inside of the deck to provide a flush, tight fit. Designed to support a live load of 40lb/ft2; The cover is 1/8” aluminum with a 20-gauge aluminum interior liner
- Curb:
14-gauge galvanized steel with 1″ thick Polyiso (R-6) insulation on the outside of the curb. The curb is 12″ tall, with a 3.375″ wide bottom flange and pre-drilled mounting holes.
- Hinge:
Heavy-duty galvanized steel pivot hinges with 3/8″ stainless steel pin.
- Aperture:
Gas spring operators allow the cover to open and close with ease. The stainless steel inner handle allows for easy control when closing the cover.
- Door Bolt:
Stainless steel self-locking exterior T-handle with stainless steel interior lock assembly and lever. The unit also has provisions for interior and exterior padlock.
- Finishing:
(Curb) The material is prepared with a wash with iron phosphate, followed by an anti-rust primer and then baked in gray polyester enamel paint.
Product Downloads
Specifications
RHG STANDARD SIZES
(other sizes available)
| Brake ID W&L | Weight per door | |
|---|---|---|
| Model | In(mm) | lbs. (kg.) |
| GD3232 | 24 X 24 (610 X 610) | 125 (56.8) |
| GD3244 | 24 X 36 (610 X 914) | 135 (61.4) |
| GD3838 | 30 X 30 (762 X 762) | 140 (63.5) |
| GD3844 | 30 X 36 (762 X 914) | 155 (70.5) |
| GD4444 | 36 X 36 (914 X 914) | 170 (77.3) |
For detailed specifications, see the presentation sheet
What is the value for you?
Provides safe and easy access for maintenance equipment and equipment transport through the roof
Electrically Powered Models are available
Available in specialized models, including Polycarbonate skylights, Thermal Break designs, high load capacity options
Meets regulatory standards for smoke evacuation in buildings
Product Features
Double skin dome in transparent combined polycarbonate, bronze, white
Standard stainless steel hardware on all hatches
1″ Polyiso (R-6) insulation standard on all hatches
EPDM foam eraser/weatherproof sealing gaskets provide weather-tight construction
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
