DW-5015

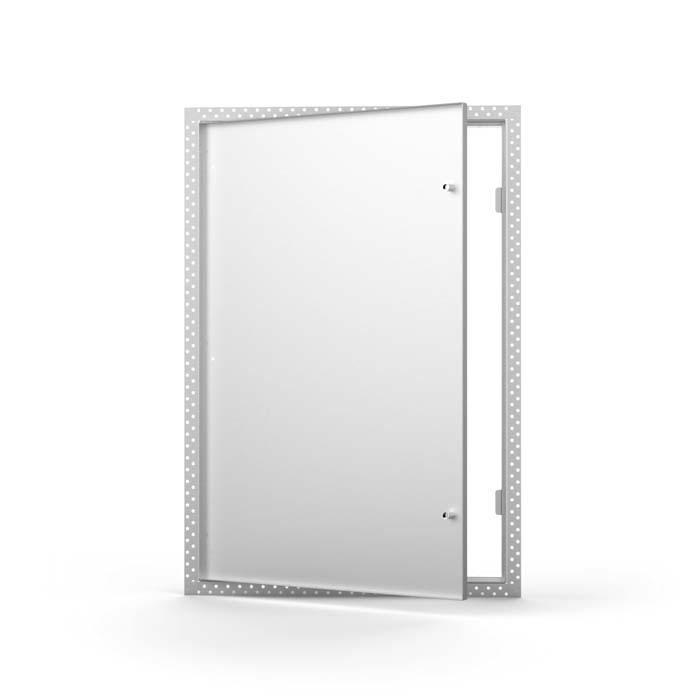

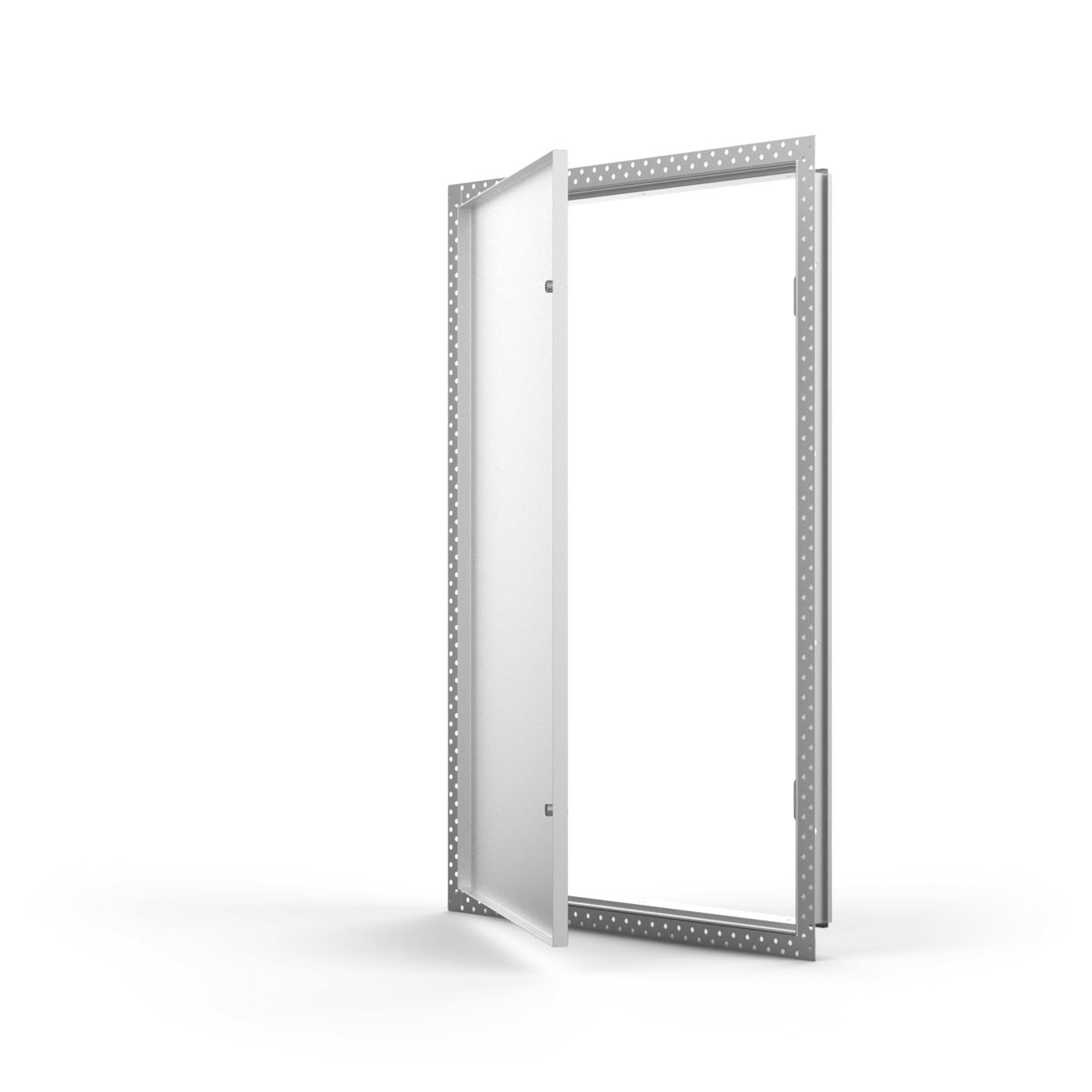

Acudor DW-5015 : For installation on drywall surfaces when hiding the door panel is required
- Material:
22 gauge steel door
- Door:
Recessed 5/8″
- Mounting Frame:
22 gauge
- Hinge:
Hidden
- Standard Deadbolt:
Cam bolt operated with flat screwdriver
- Optional deadbolts/locks:
Cylinder and key lock, allen head cam bolt, key cam bolt
- Finishing:
Satin steel
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Wall Fitting | |||
|---|---|---|---|---|
| In. | mm | Bolt | lbs.kg | . |
| 12 X 12 | 305 x 305 | 1 | 5.20 | 2.4 |
| 16 X 16 | 406 x 406 | 1 | 5.90 | 2.7 |
| 18 X 18 | 457 X 457 | 1 | 8.10 | 3.7 |
| 24 X 24 | 610 X 610 | 1 | 14.50 | 6.6 |
| 24 X 36 | 610 X 914 | 2 | 20.20 | 9.2 |
The wall or ceiling opening is W + 3/8″ (9 mm)

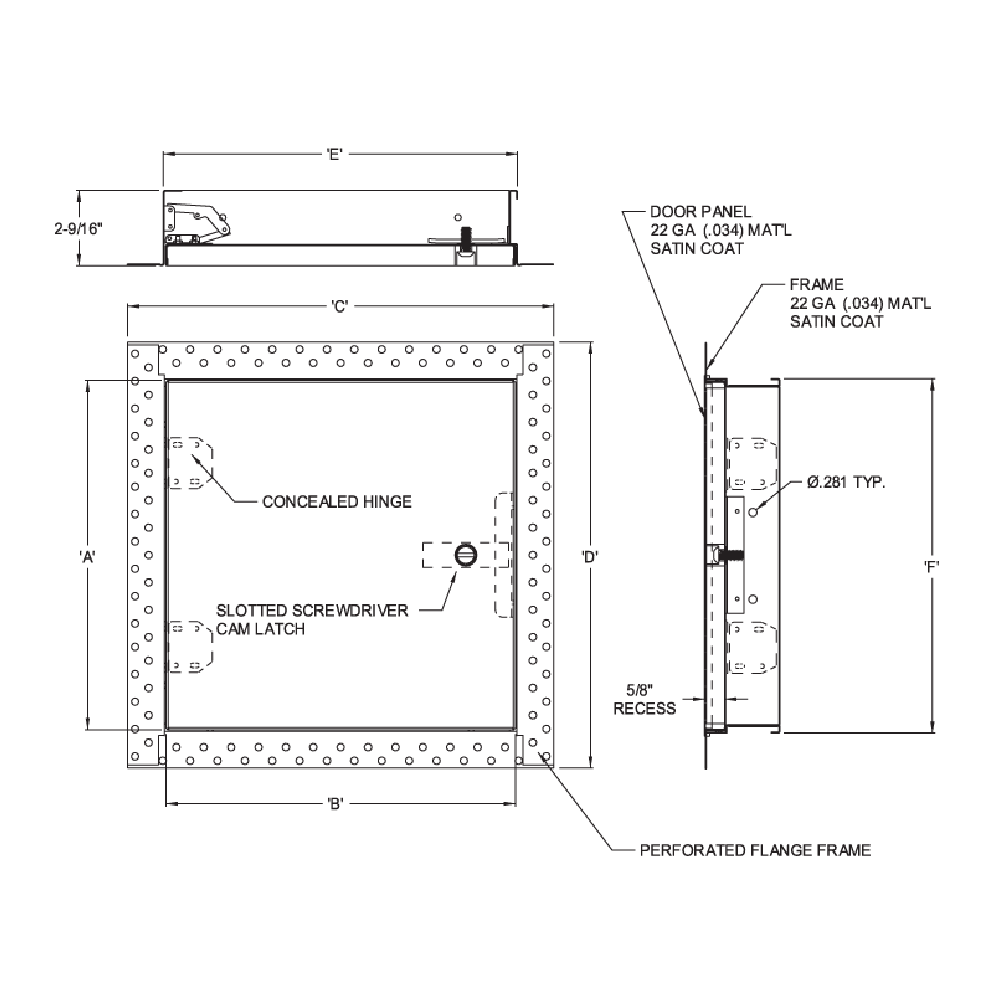

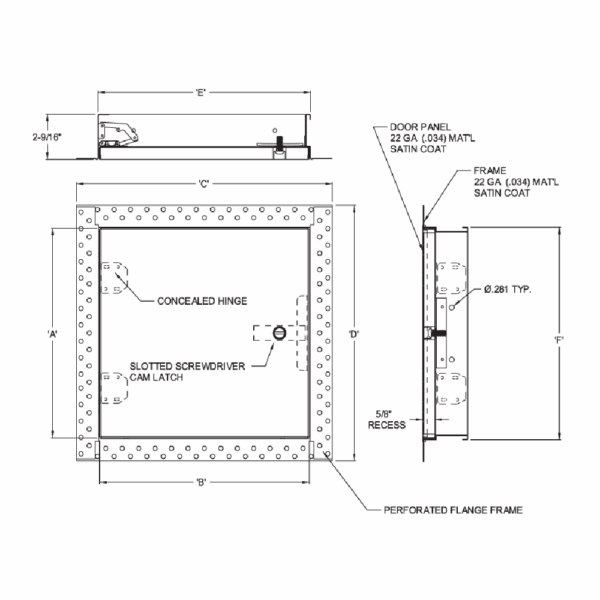

For detailed specifications, see the presentation sheet
What is the value for you?
Creates a seamless, architecturally pleasing look with concealed frame, locks and hinges
Designed to accommodate conventional 1/2 “and 5/8” drywall thicknesses, with option for custom thickness
Door models with built-in drywall reduce installation time
Available in square, rectangular and circular shapes
Product Features

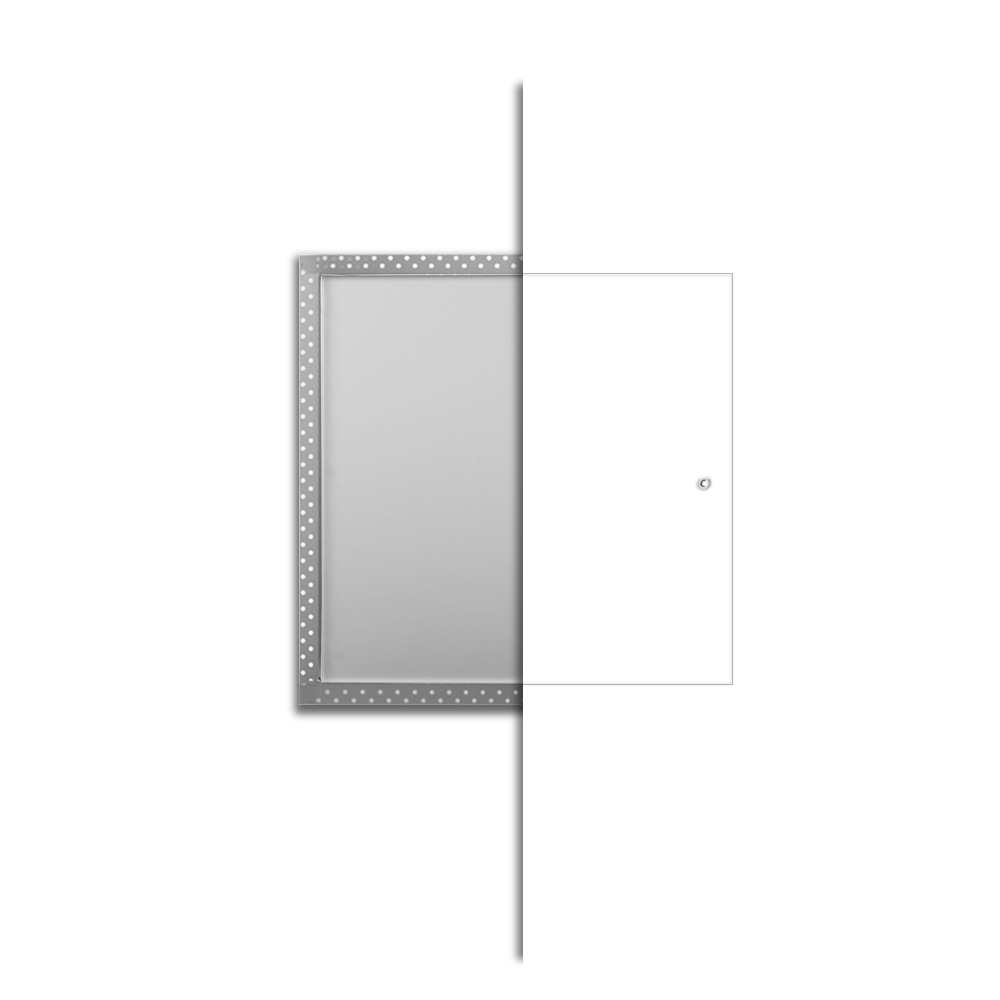

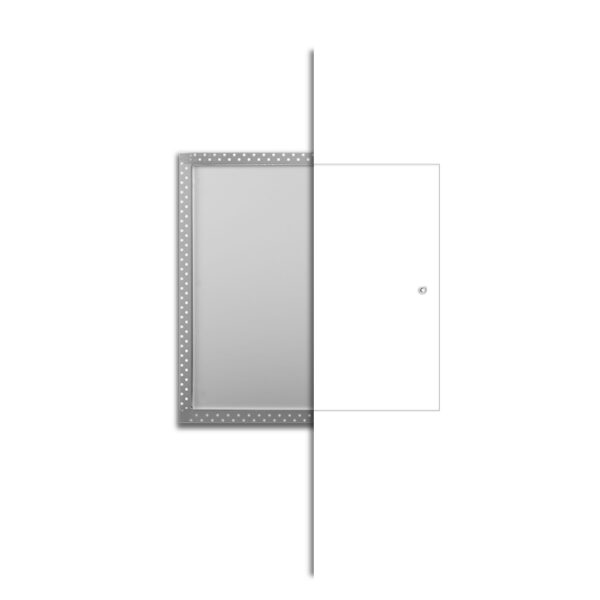

Door panel is recessed 5/8″ to receive drywall
The door flange is a textured galvanized steel tape cord with pre-drilled holes
Cam operated cam latch with slotted screwdriver
Satin steel finish
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
