DW-5058-1

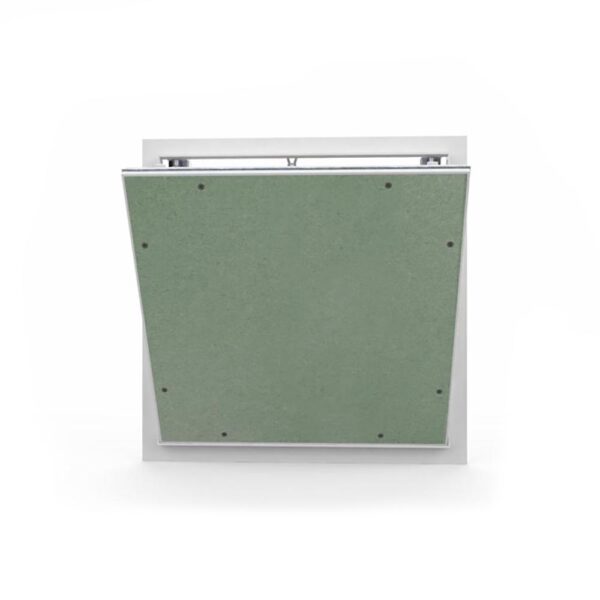

Acudor DW-5058-1 : Designed to provide access on walls and ceilings, maintaining an invisible and architecturally pleasing appearance.
- Material:
Aluminum extrusion with drywall installed on the top panel
- Lid Frame:
Recessed 6063-T6 aluminum extrusion to provide a drywall-like edge to allow wall or ceiling surface finishing.
- Hinge:

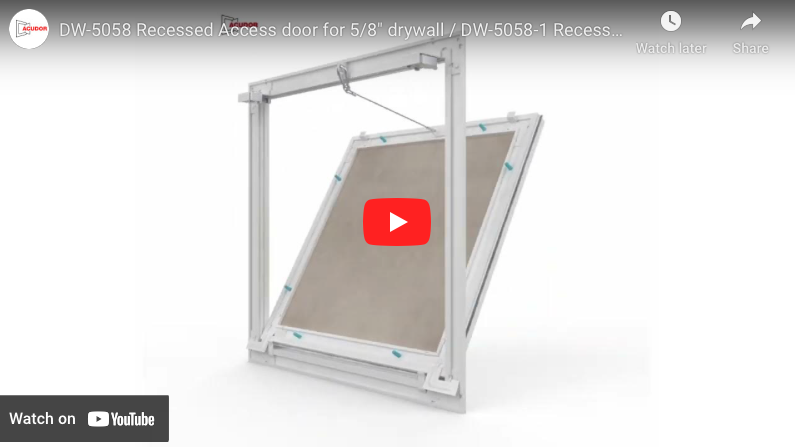

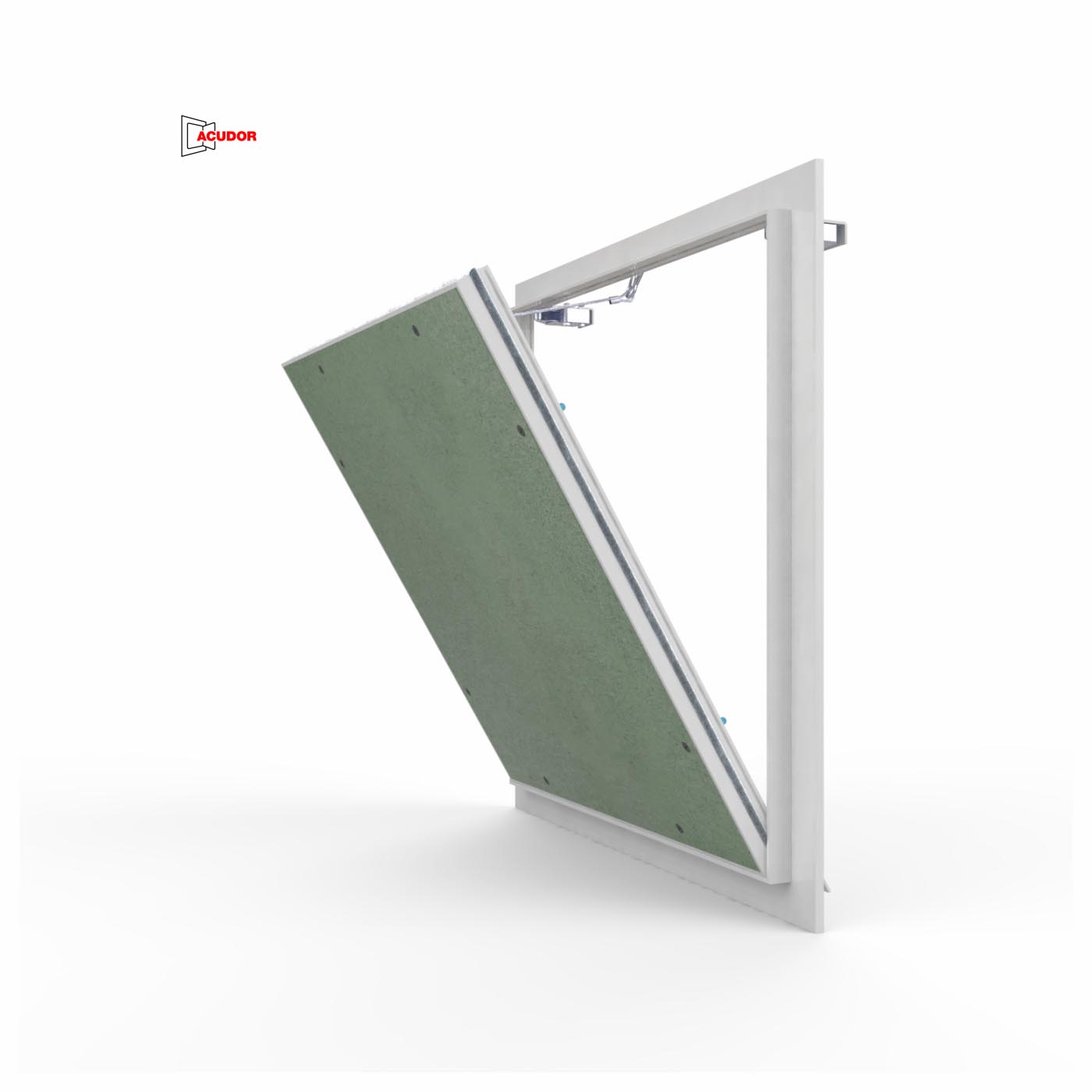

The wing hinge allows the lid panel to open to 90 degrees, and also the lid panel to be removed from the frame. Safety chain installed on lid and frame for added safety.
- Packaging:
Dust Seal Packaging
- Standard Latch:
Concealed contact latches
- Optional Latches/Locks:
Screwdriver operated cam latch, Allen head cam latch, key head cam latch, cylinder lock and key.
- Finishing:
White Powder Painted
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Wall Fitting | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 8 x 8 | 203 x 203 | 1.5 | 0.7 |
| 12 x 12 | 305 x 305 | 2.0 | 0.9 |
| 16 x 16 | 406 x 406 | 5.0 | 2.3 |
| 18 x 18 | 457 x 457 | 6.0 | 2.7 |
| 24 x 24 | 610 x 610 | 12.0 | 5.5 |
| 24 x 36 | 610 x 914 | 21.0 | 9.5 |
Weight per doorWall or ceiling opening is W + 3/8″ (9.5 mm)

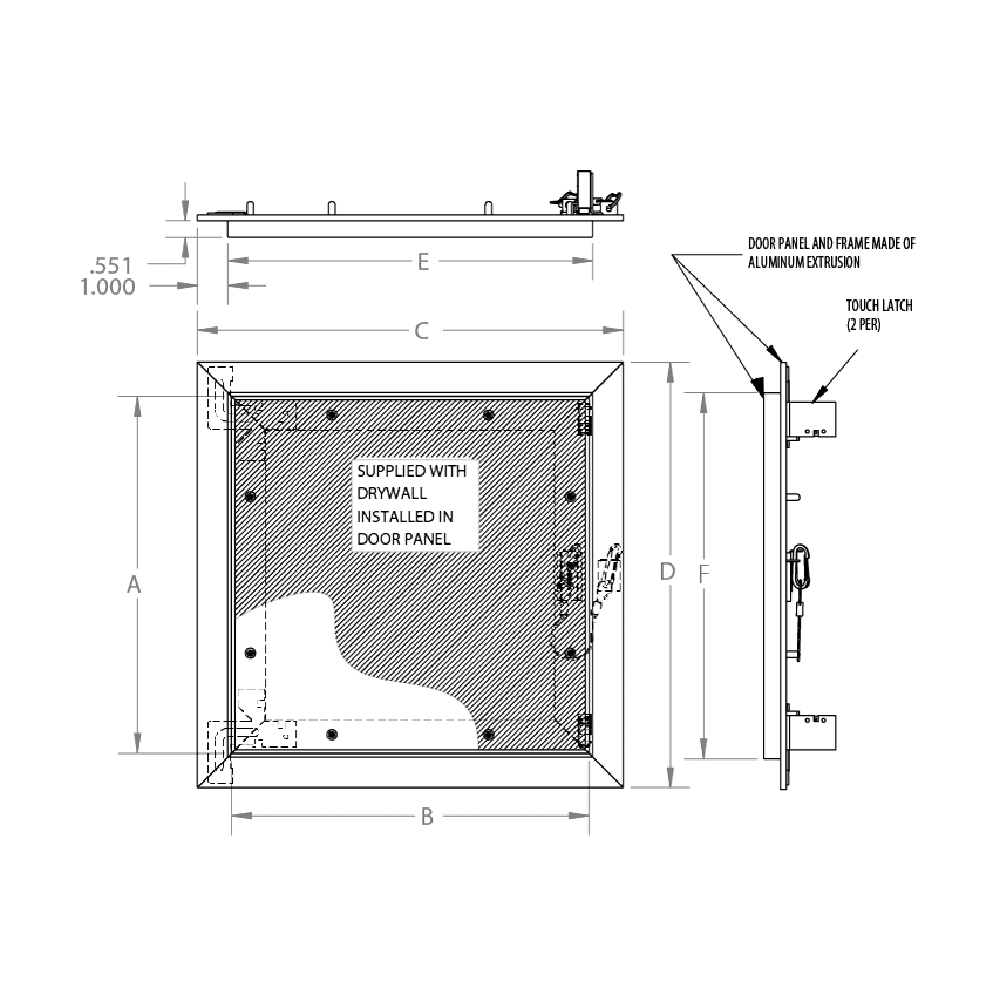

For detailed specifications, see the presentation sheet
What is the value for you?

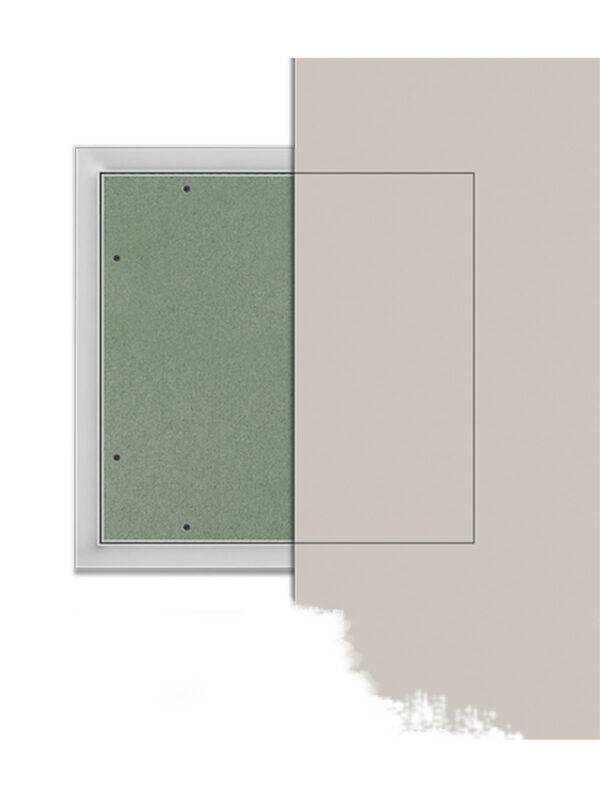

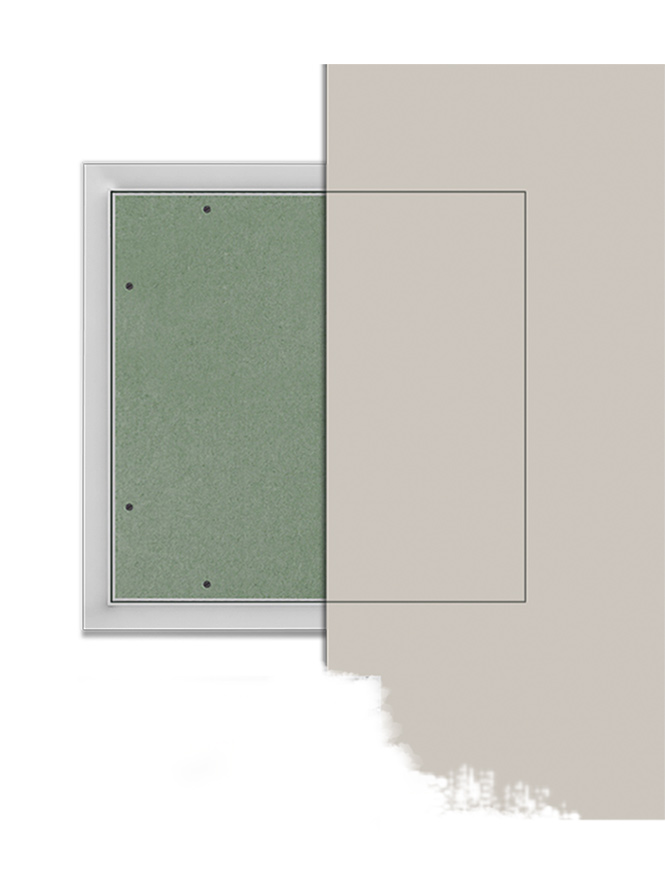

Creates a seamless, architecturally pleasing look with concealed frame, locks and hinges
Designed to accommodate conventional 1/2 “and 5/8” drywall thicknesses, with option for custom thickness
Door models with built-in drywall reduce installation time
Available in square, rectangular and circular shapes
Product Features
Designed for installation on 1/2 “drywall (5/8” also available).
Aluminum extrusion frame and door
Hidden touch latch for easy and reliable operation.
Dust Cover Gasket
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
