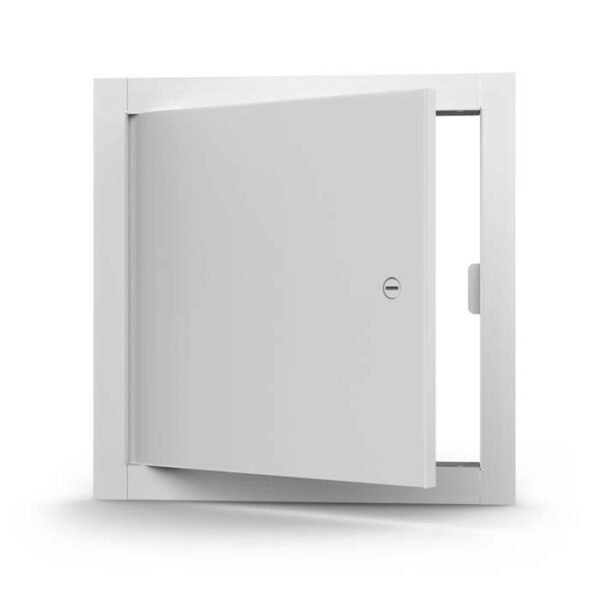

ED-2002
Acudor ED-2002 : Installation in drywall, plaster, masonry, tile or any surface at level economical and attractive access door for walls and ceilings
- Material:
18-gauge steel on door and frame
- Door:
Level with reinforced edged frame
- Door Frame:

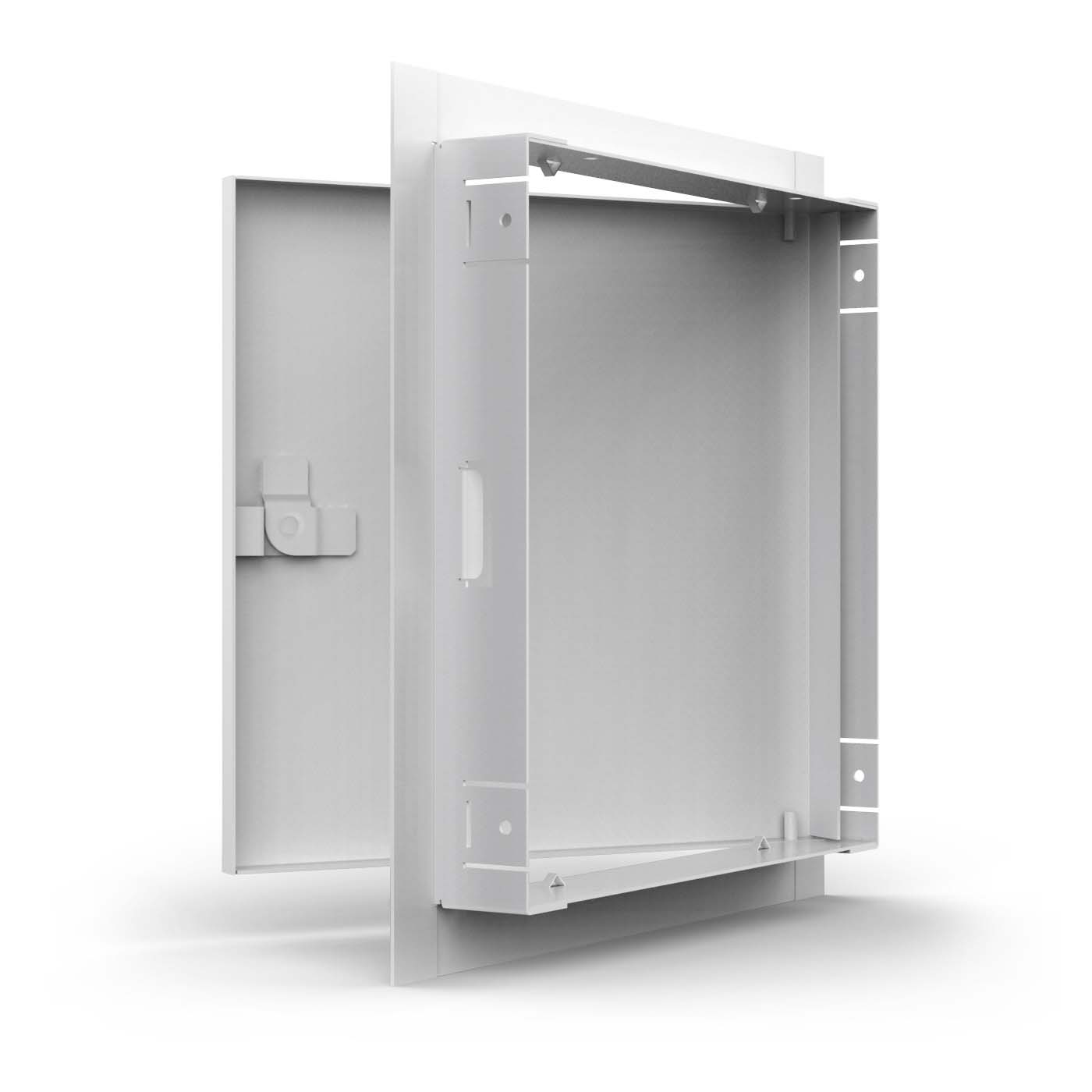

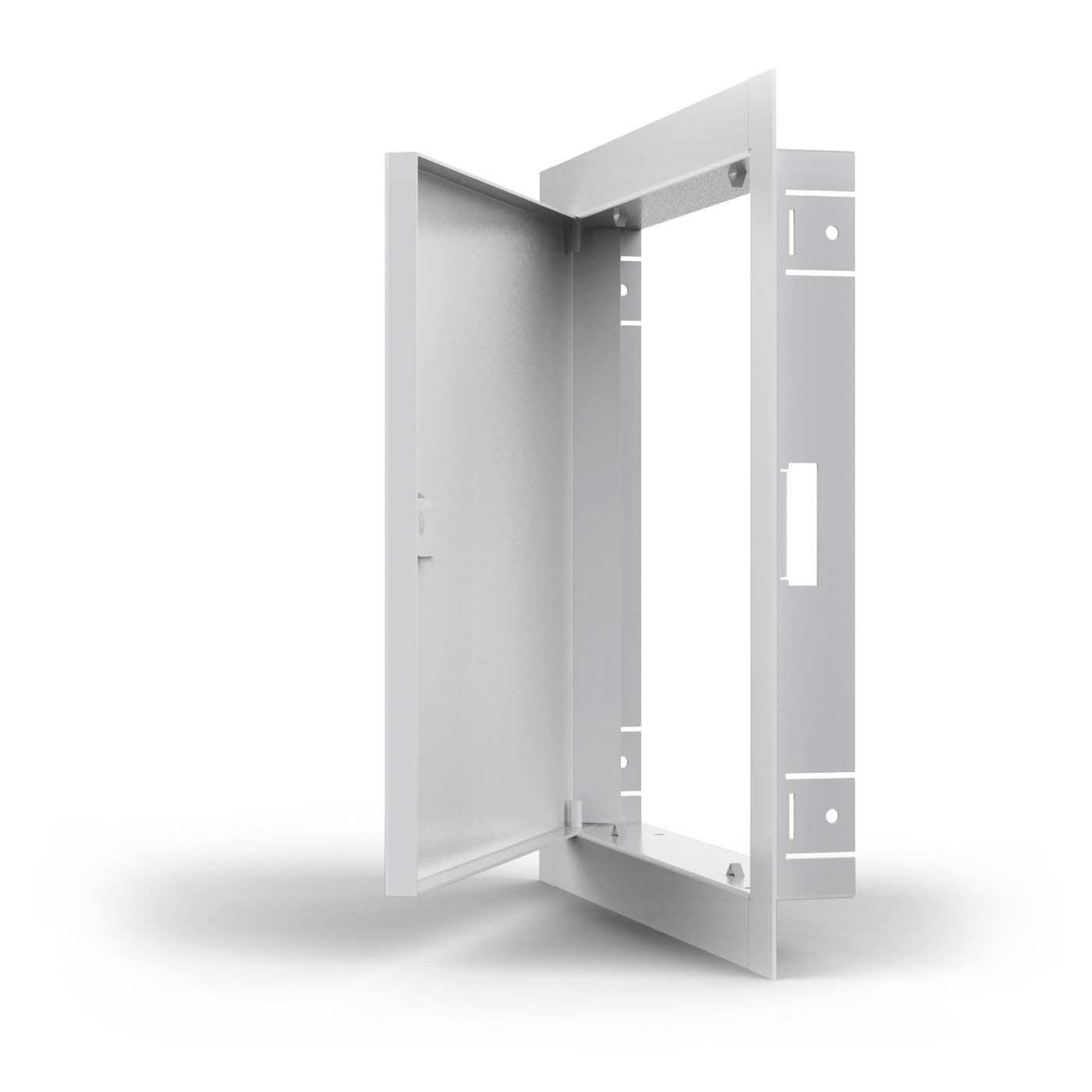

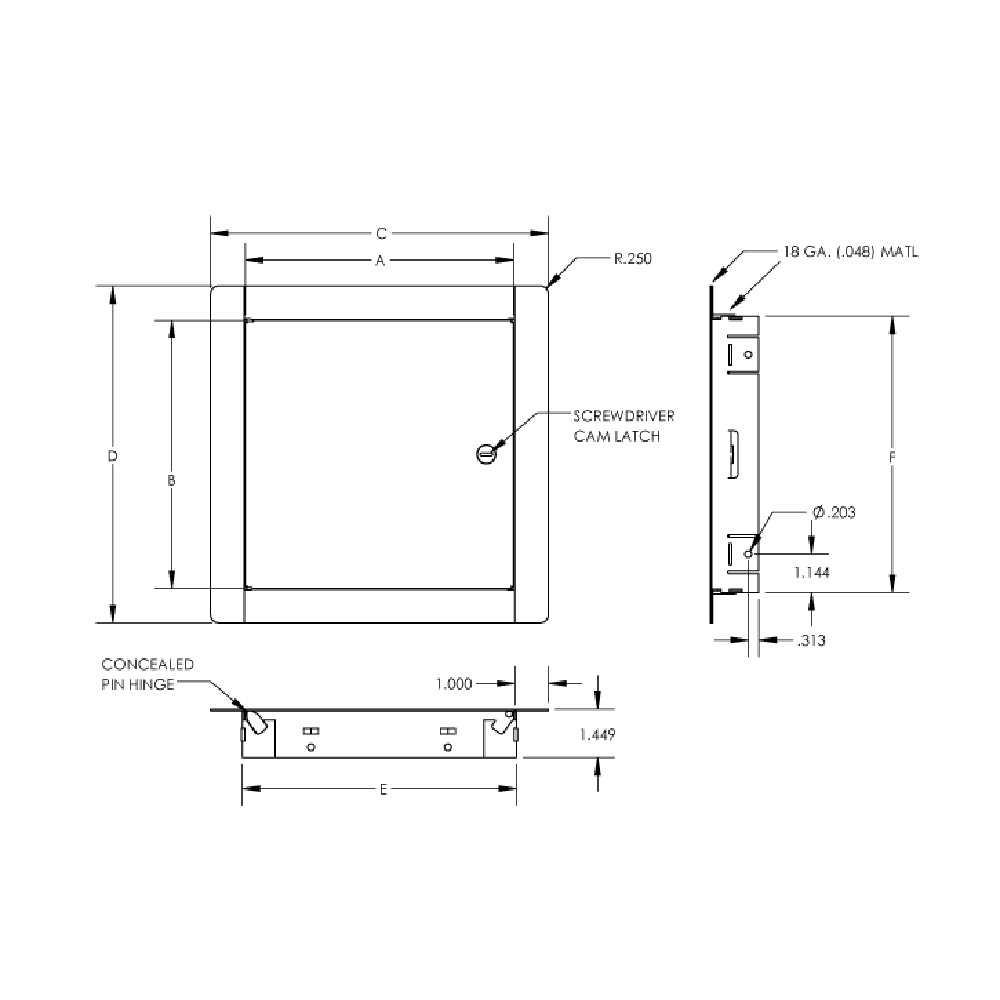

Outer flange 1″ wide with mounting 1 7/16″ deep Frame: Hangover mounting tabs provided over 6×6, 8×8, 10×10 and 12×12
- Hinge:
Concealed Hinge Pin
- Bolt:
Stainless Steel Cam Bolt Operated with Flat Screwdriver
- Finishing:
Baked white primer coat (additional finishing paint recommended for increased corrosion resistance)
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size WyH | Door Deadbolt | Weight Per Door | ||
|---|---|---|---|---|
| In, | mm | , lbs.kg | . | |
| 6 X 6 | 152 X 152 | 1 | 1.5 | 0.7 |
| 8 X 8 | 203 X 203 | 1 | 2.1 | 1.0 |
| 10 X 10 | 254 X 254 | 1 | 2.9 | 1.3 |
| 12 X 12 | 305 X 305 | 1 | 3.7 | 1.7 |
| 14 X 14 | 356 X 356 | 1 | 4.6 | 2.1 |
| 16 X 16 | 406 X 406 | 1 | 5.6 | 2.5 |
| 18 x 18 | 457 x 457 | 1 | 6.8 | 3.1 |
| 20 x 20 | 508 x 508 | 1 | 8.2 | 3.7 |
| 24 x 24 | 610 x 610 | 1 | 10.3 | 4.7 |
| 24 x 36 | 610 x 914 | 2 | 16.9 | 7.7 |
| 30 x 30 | 726 x 762 | 2 | 21.2 | 9.6 |
| 36 x 36 | 914 x 914 | 2 | 24.5 | 11.1 |
The wall or ceiling opening is W + 3/8″ (9 mm)
For detailed specifications, see the presentation sheet
What is the value for you?
Stays flush with the installed surface for a seamless look
Versatile – suitable for installation on walls and ceilings on various surfaces, including masonry, plaster, drywall and tile
Accepts finish paint allowing it to blend into the surrounding surface
Available in multiple design options, including wet areas, corrosive environments, concealed frame, and removable door
Product Features
Installation on drywall, plaster, masonry, tile, or any flush surface
Formed Door Panel
Concealed hinge
12″ x 12″ and smaller doors have folding tabs for easy installation
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
