FA-300-Retrofit

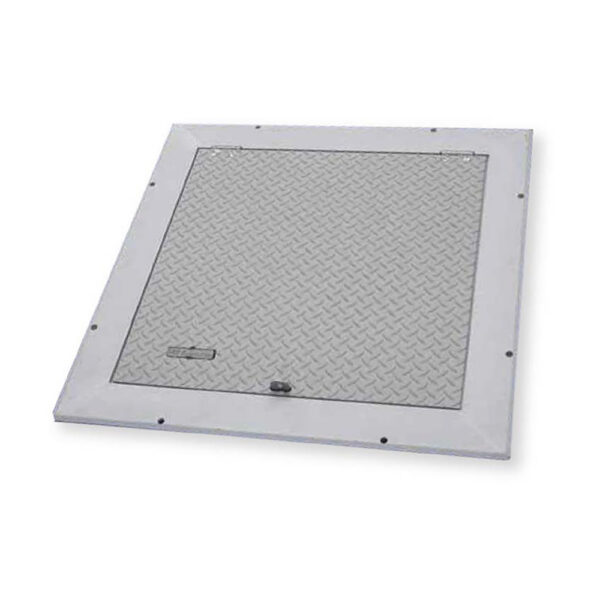

Acudor FA-300-R : Designed for indoor and outdoor applications where water tightness is not required. To be used when the door will not be fixed in concrete, but screwed.
- Material:
Aluminum door and frame; Stainless Steel Hinges and Hardware
- Door:
Reinforced 1/4″ aluminum diamond plate for 300 lb/ft. live load2.
- Frame:
Angle frame made of extruded aluminum
- Hinge:
Flat stainless steel hinges with vandal resistant stainless steel bolts and nuts
- Opening device:
Open and held automatic arm with red vinyl handle allows the door panel to be opened to 90 degrees, locking the door in the open position and allowing easy control when closing the door panel. When required, stainless steel compression rings can be provided to add support for lifting. Available with electric actuators, operated by a wall-mounted push-button switch and remote control.
- Standard Deadbolt:
Level aluminum folding handle with staple for padlock. Also available in recessed padlock arrangement; ST/STL Impact Lock
- Finishing:
Laminated finish, with optional bituminous coating on the outside of the frame.
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 24 x 24 | 610 x 610 | 49 | 22 |
| 24 x 30 | 610 x 762 | 53 | 24 |
| 24 x 36 | 610 x 914 | 57 | 26 |
| 30 x 30 | 762 x 762 | 63 | 29 |
| 30 x 48 | 762 x 1219 | 75 | 34 |
| 36 x 36 | 914 x 914 | 80 | 36 |
| 36 x 48 | 914 x 1219 | 92 | 42 |
| 42 x 42 | 1067 x 1067 | 94 | 43 |
| *48 x 48 | 1219 x 1219 | 123 | 56 |
| *48 x 72 | 1219 x 1829 | 170 | 77 |
| *60 x 60 | 1524 x 1524 | 177 | 80 |
* Double blade

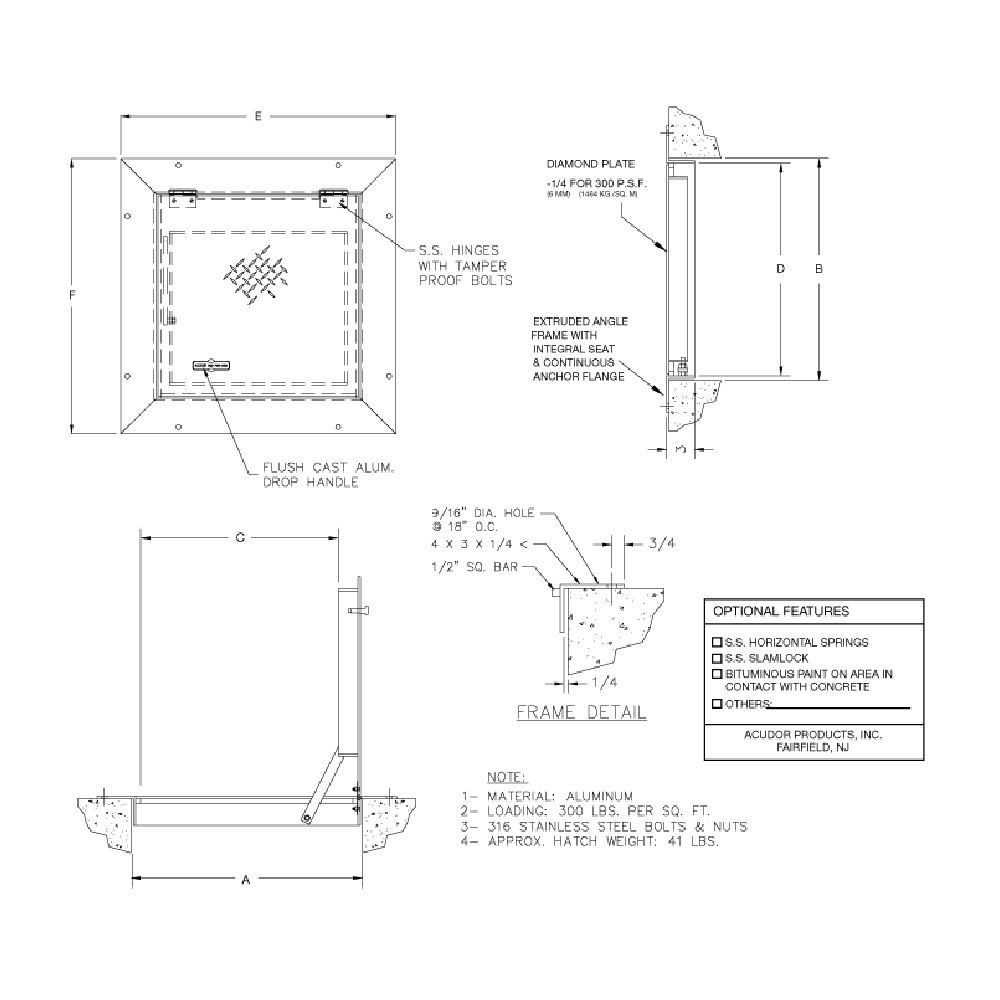

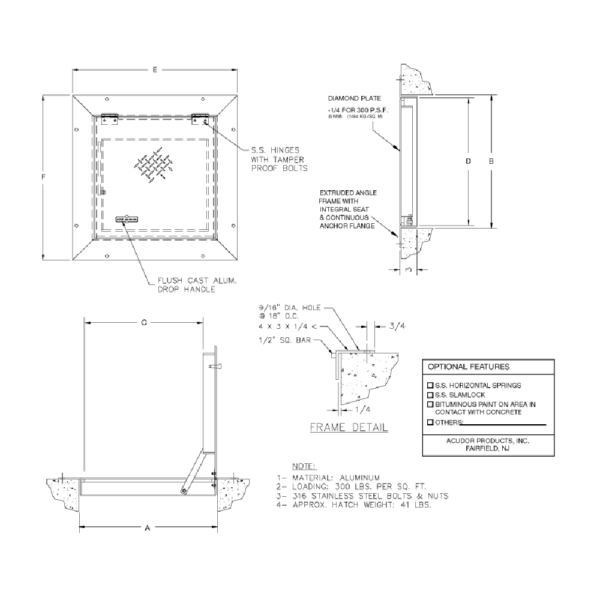

For detailed specifications, see the presentation sheet
What is the value for you?
Extensive range of models designed for various industries including construction, wastewater, electricity, gas, telecommunications, water, architecture and transportation
Designed to withstand different design loads, such as pedestrian, occasional traffic, direct traffic, and aircraft cargo
Available in Steel and Aluminum
Distinguishing features include – Gas-tight, Flood Impermeable, Fireproof Rating, H20 Charge, HL-93 Charge
Product Features
Channel frame construction with 1 1/2″ drain coupling and integral anchor flange is designed to be cast into concrete
300 lb/sq. ft. 1/4″ Reinforced Aluminum Diamond Plate Door Panel for Live Load
The diamond plate door panel is equipped with a flush aluminum flip-up handle and an automatic open arm
Angle frame fabricated from aluminum extrusion with a 1″ integral anchor flange
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
