FC-H20

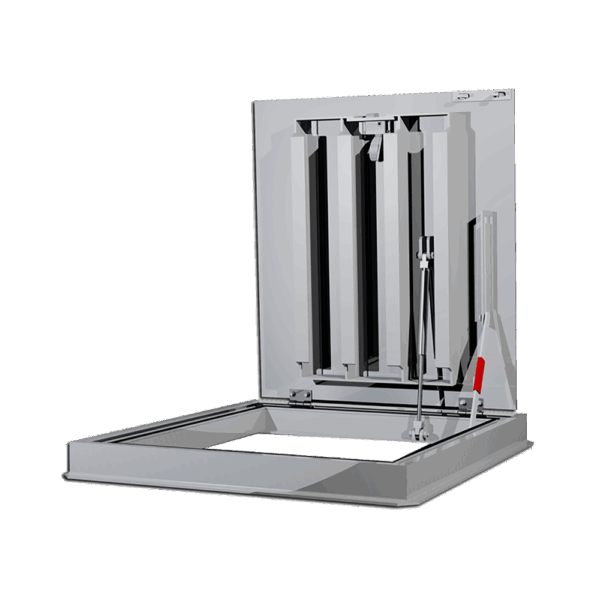

Acudor FC-H20 : Indoor or outdoor applications where dirt and water are prevented from entering the work area. The drain is provided by means of a threaded coupling in the channel.
- Material:
Aluminum door and frame; Stainless Steel Hinges and Hardware
- Door:
1/4″ aluminum diamond plate, reinforced to meet AASHTO H20-44 specification for traffic load (16000 lbs., load on wheels with 30% added for impact)
- Frame:

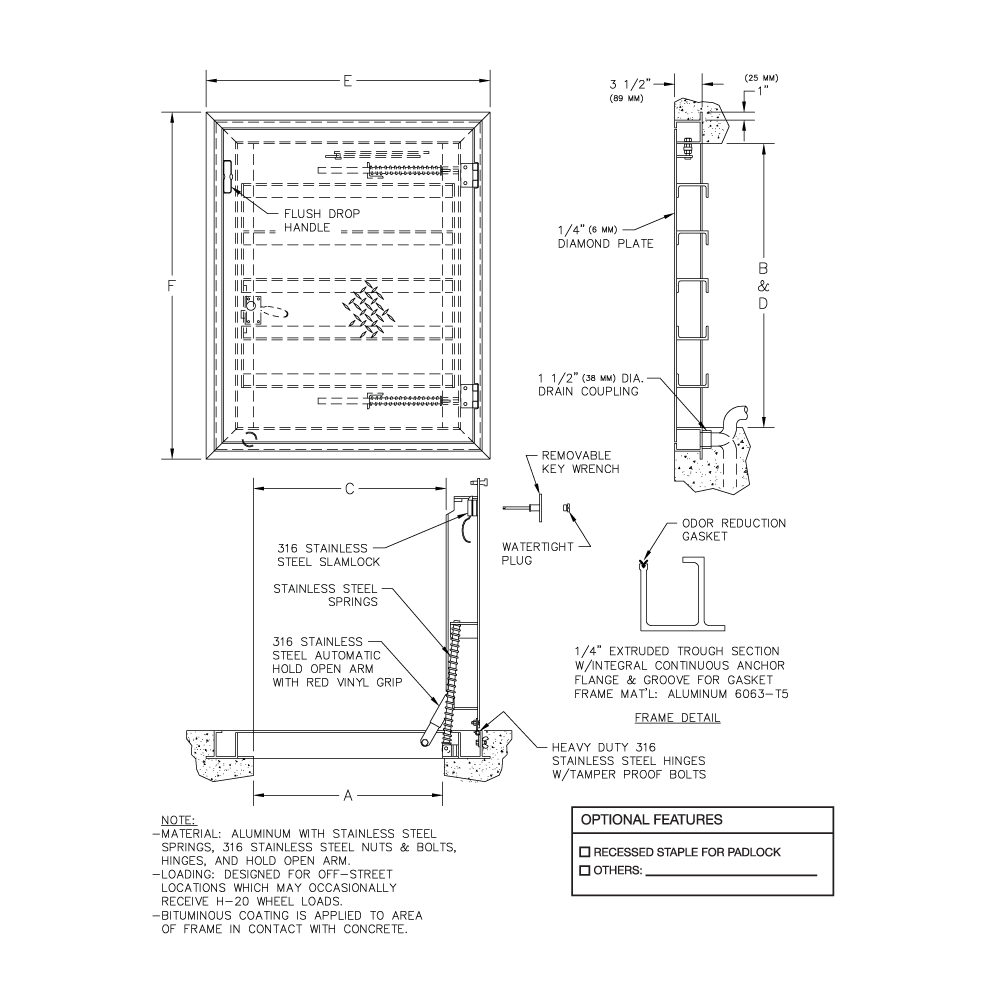

Angle frame made of extruded aluminum with 1*-1/2 “drain coupling and 1” integral anchor flange.
- Hinge:
Flat stainless steel hinges with vandal resistant stainless steel bolts and nuts
- Opening device:
Automatic arm open and held with red vinyl handle to open at 90 degrees, locking the door in the open position and allowing easy control when closing the door panel. When required, stainless steel compression rings can be provided to add support for lifting. Available with electric actuators, operated by a wall-mounted push-button switch and remote control.
- Standard Deadbolt:
Aluminum Level Flip Handle with Stainless Steel Impact Lock
- Finishing:
Laminated finish, with optional bituminous coating on the outside of the frame.
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 24 x 24 | 610 x 610 | 90 | 41 |
| 24 x 30 | 610 x 762 | 108 | 49 |
| 24 x 36 | 610 x 914 | 112 | 51 |
| 30 x 30 | 762 x 762 | 110 | 50 |
| 30 x 48 | 762 x 1219 | 153 | 69 |
| 36 x 36 | 914 x 914 | 143 | 65 |
| 36 x 48 | 914 x 1219 | 206 | 93 |
| 42 x 42 | 1067 x 1067 | 263 | 119 |
| 48 x 48* | 1219 x 1219 | 283 | 128 |
| 48 x 72* | 1219 x 1829 | 411 | 186 |
| 60 x 60* | 1524 x 1524 | 401 | 182 |
* Double blade
For detailed specifications, see the presentation sheet
What is the value for you?
Extensive range of models designed for various industries including construction, wastewater, electricity, gas, telecommunications, water, architecture and transportation
Designed to withstand different design loads, such as pedestrian, occasional traffic, direct traffic, and aircraft cargo
Available in Steel and Aluminum
Distinguishing features include – Gas-tight, Flood Impermeable, Fireproof Rating, H20 Charge, HL-93 Charge
Product Features
Designed for off-street locations that may occasionally receive AASHTO H-20-44 wheel loads
Channel frame construction with 11/2″ drain coupling and integral anchor flange is designed to be cast into concrete
The diamond plate door panel is equipped with a flush aluminum flip-up handle and an automatic open arm
Designed for indoor and outdoor applications where waterproofing is NOT required
