FRFD

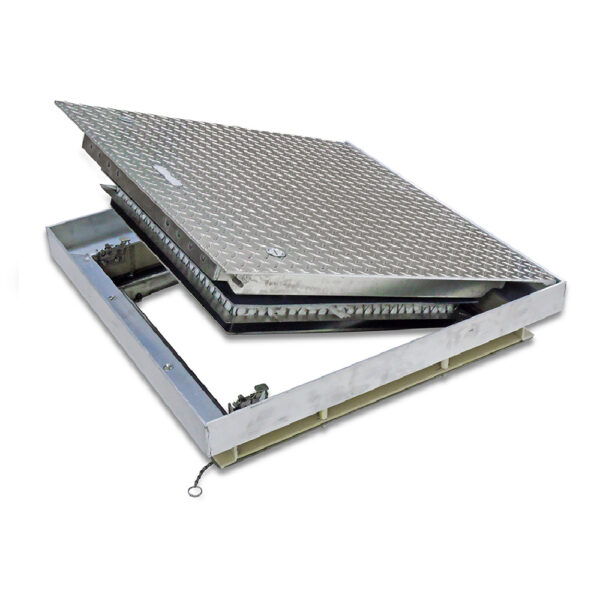

Acudor FRFD : Maintains the fire resistance of a 2-hour floor and ceiling assembly. Designed for indoor applications.
- Material:
Aluminum door and top frame; Stainless steel bottom frame, hinges and hardware
- Door:
1/4 “Aluminum Diamond Plate Reinforced for 150 lb/ft. Live Cargo2Door: 1/4” Aluminum Diamond Plate Reinforced for 150 lb/ft. Live Load2
- Frame:
3 “x 3” x 1/4 “aluminum top frame with thermal break Stainless steel bottom frame 3 1/2” x 11 gauge
- Insulator:
Two 1″ thick layers of ceramic sheet insulation attached to the bottom frame
- Hinge:
Type 316 Stainless Steel Continuous Piano Hinge
- Opening device:
Door panel opens at 90 degrees Automatic arm open and held with red vinyl handle keeps the door in open position to ensure safe exit. Stainless steel compression springs provide assistance when lifting. Listed by U.L. A 165-degree fuse link is provided for automatic shut-off and deadbolt in the event of smoke or fire.
- Bolt:
Stainless Steel Impact Bolt Assembly with Interior Release
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 24 x 24 | 610 x 610 | 115 | 52 |
| 24 x 36 | 610 x 914 | 142 | 64 |
| 24 x 48 | 610 x 1219 | 175 | 79 |
| 30 x 30 | 762 x 762 | 155 | 70 |
| 30 x 36 | 762 x 914 | 175 | 79 |
| 36 x 36 | 914 x 914 | 195 | 88 |
| 36 x 48 | 914 x 1219 | 250 | 113 |
| 42 x 42 | 1067 x 1067 | 255 | 116 |
| 48 x 48 | 1219 x 1219 | 280 | 127 |
For detailed specifications, see the presentation sheet
What is the value for you?
Extensive range of models designed for various industries including construction, wastewater, electricity, gas, telecommunications, water, architecture and transportation
Designed to withstand different design loads, such as pedestrian, occasional traffic, direct traffic, and aircraft cargo
Available in Steel and Aluminum
Distinguishing features include – Gas-tight, Flood Impermeable, Fireproof Rating, H20 Charge, HL-93 Charge
Product Features
Designed for indoor applications.
Warnock Hersey International 2-Hour Fire Resistance Rating
Flush Aluminum Diamond Plate Cover
Tested to NFPA 288; ASTM E 119
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
