FT-8050

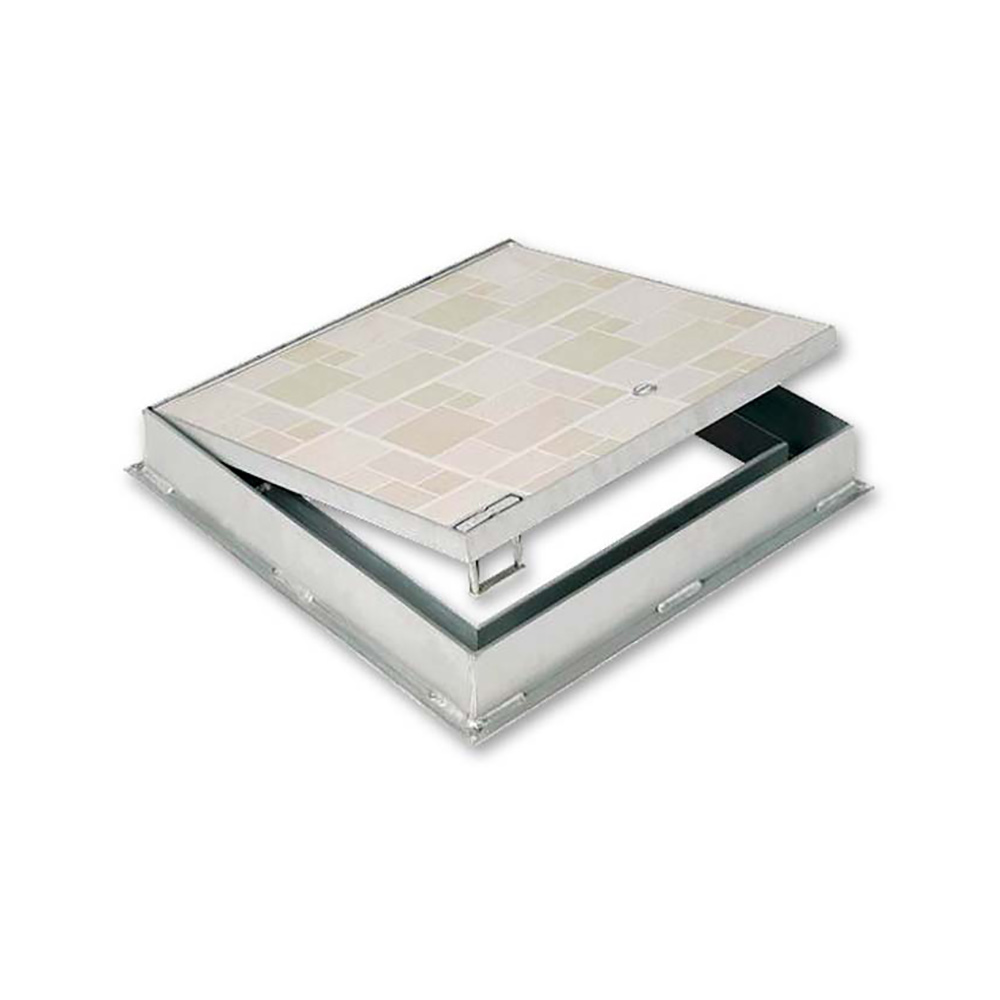

Acudor FT-8050 : Designed for indoor and outdoor applications that require an access opening that integrates with the surrounding flooring material.
- Material:
Aluminum door and frame; Stainless Steel Hinges and Hardware
- Door:
Reinforced 1/4 “smooth aluminum plate for 300 lb/ft. live load2. The extruded edge is welded to the door panel, providing a 1” recessed recess.
- Frame:
Angle frame made of extruded aluminum with 1*-1/2 “drain coupling and 1” integral anchor flange.
- Hinge:
Stainless Steel Continuous Piano Hinge
- Opening device:
Automatic Open and Held Arm with red vinyl handle allows the door panel to open at 90 degrees, locking the door in the open position, and allowing easy control when closing the door panel. Open Stainless Steel Compression Springs provide assistance when lifting. Available with electric actuators, operated by a wall-mounted push-button switch and remote control.
- Standard Deadbolt:
Stainless steel impact lock with fixed handle on the inside, removable handle on the outside, and removable screw cap
- Finishing:
Bituminous coated laminate finish applied to the outside of the frame
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 24 x 24 | 610 x 610 | 70 | 32 |
| 24 x 30 | 610 x 762 | 93 | 42 |
| 24 x 36 | 610 x 914 | 98 | 44 |
| 30 x 30 | 762 x 762 | 106 | 48 |
| 36 x 36 | 914 x 914 | 143 | 65 |
| 36 x 48 | 914 x 1220 | 245 | 111 |
| 42 x 42 | 1067 x 1067 | 166 | 75 |
| 48 x 48* | 1220 x 1220 | 220 | 100 |
| 48 x 72* | 1220 x 1829 | 486 | 220 |
| 60 x 60* | 1524 x 1524 | 440 | 200 |
*Double blade
For detailed specifications, see the presentation sheet
What is the value for you?
Extensive range of models designed for various industries including construction, wastewater, electricity, gas, telecommunications, water, architecture and transportation
Designed to withstand different design loads, such as pedestrian, occasional traffic, direct traffic, and aircraft cargo
Available in Steel and Aluminum
Distinguishing features include – Gas-tight, Flood Impermeable, Fireproof Rating, H20 Charge, HL-93 Charge
Product Features
1″ recessed to accommodate ceramic/concrete tile floors.
The door panel is equipped with a flush aluminum flip-up handle and an automatic open arm
Reinforced 1/4″ smooth aluminum plate for 300 lbs/sq. ft. live load.
Angle frame made of aluminum extrusion with 1″ integral anchor flange on three sides and welded anchor straps on hinge side
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
