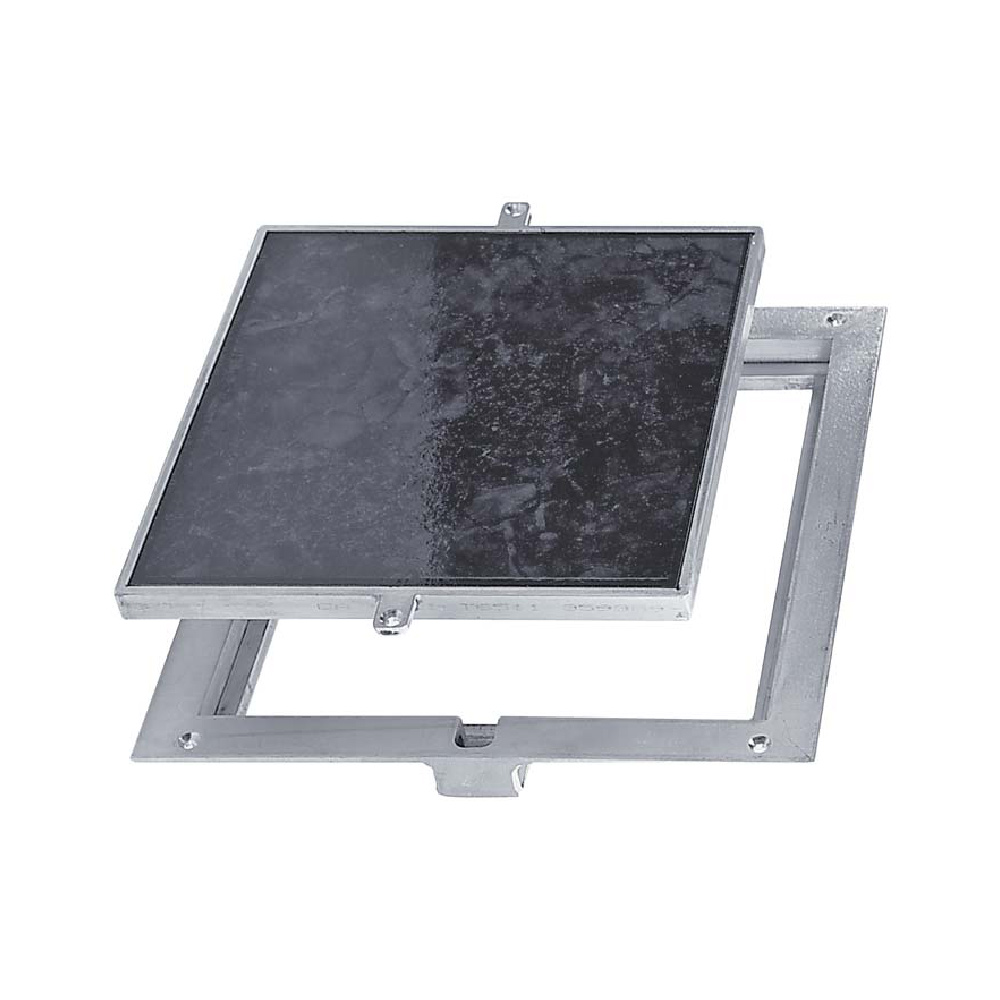

FT-8080
Acudor FT-8080 : Designed for indoor and outdoor applications that require an access opening that integrates with the surrounding flooring material.
- Material:
Extruded aluminum with 5/8″ drywall in door panel
- FT-8080 Door:
1/4 “reinforced smooth aluminum plate for 150 lb/ft. live load2, recessed 1/8” for mosaic/vinyl carpet
- FT-8080-1 Door:
Reinforced 1/4 “smooth aluminum plate for 150 lb/ft2 live loads / recessed 1” for ceramic/concrete tile
- Frame:
1-1/2 “x 1-1/4” aluminum angle with top flange mounting holes
- Standard Deadbolt:
Door panel is secured to the frame with 1/4 “x 1” flat head screws
- Finishing:
Laminated finish.
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 8 X 8 | 203 X 203 | 6 | 3 |
| 12 X 12 | 305 X 305 | 11 | 5 |
| 18 X 18 | 457 X 457 | 17 | 8 |
| 24 X 24 | 610 X 610 | 19 | 9 |

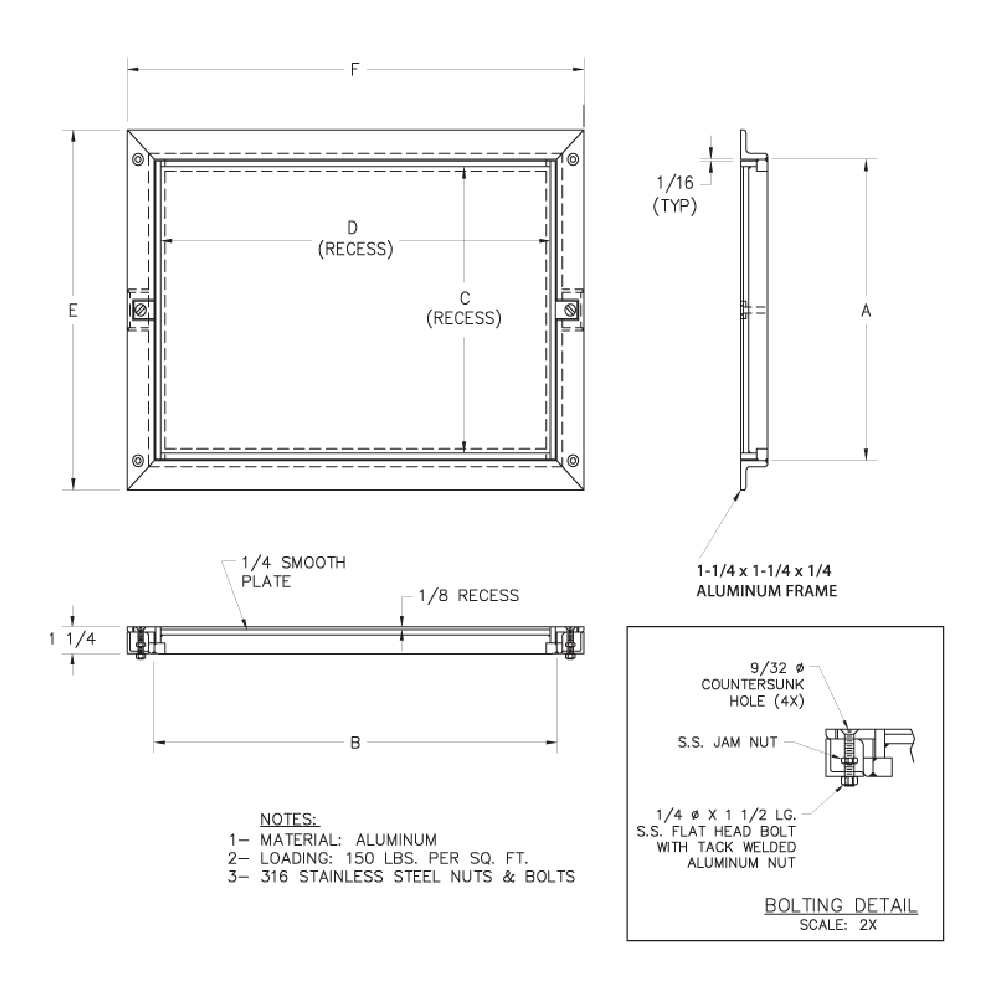

For detailed specifications, see the presentation sheet
What is the value for you?
Extensive range of models designed for various industries including construction, wastewater, electricity, gas, telecommunications, water, architecture and transportation
Designed to withstand different design loads, such as pedestrian, occasional traffic, direct traffic, and aircraft cargo
Available in Steel and Aluminum
Distinguishing features include – Gas-tight, Flood Impermeable, Fireproof Rating, H20 Charge, HL-93 Charge
Product Features
1/8″ recessed to accommodate carpet and vinyl tile.
To prevent the floor material from cracking or chipping inside the door panel, security screws are located on the flange of the mounting frame.
Reinforced 1/4″ smooth aluminum plate for 150 lbs/sq. ft. live load.
Door panel is secured to the frame with 1/4 “x 1” flat head screws
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
