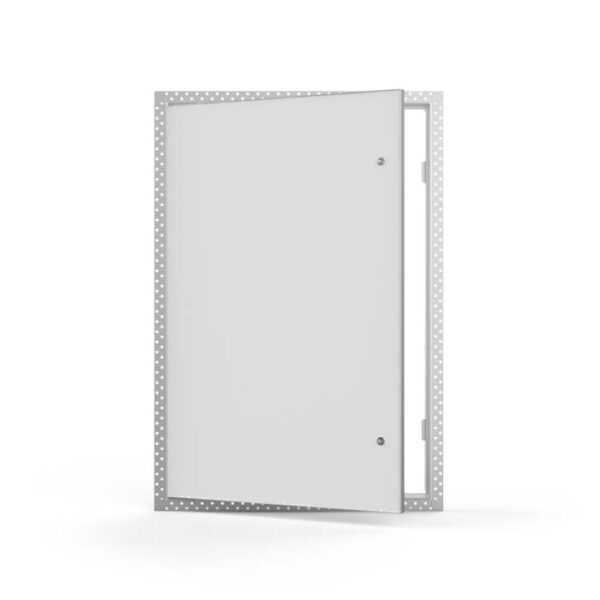

FW-5015
Acudor FW-5015 : For installation on drywall walls that require hiding the door panel consistent with the environment. For use on walls, fire resistant for up to 90 minutes with a maximum temperature rise of 250°C (450°F) for 30 minutes
- Door:
22 gauge steel, recessed and fitted with 5/8″ thick drywall suitable for on-site drywall finishing.
- Door Frame:
22-gauge press-bent steel for strength and rigidity, with pre-drilled flanges for comfortable mounting and suitable for on-site drywall finishing
- Hinge:
Hidden
- Fire Resistance (Walls):
Meets 1 1/2 hour fire resistance requirement according to UL 10(b) and CAN/ULC S104-10 for maximum size up to 24 “x 36”
- Bolt:
Self-locking latch, flush key operated
- Finishing:
Satin steel
Product Downloads

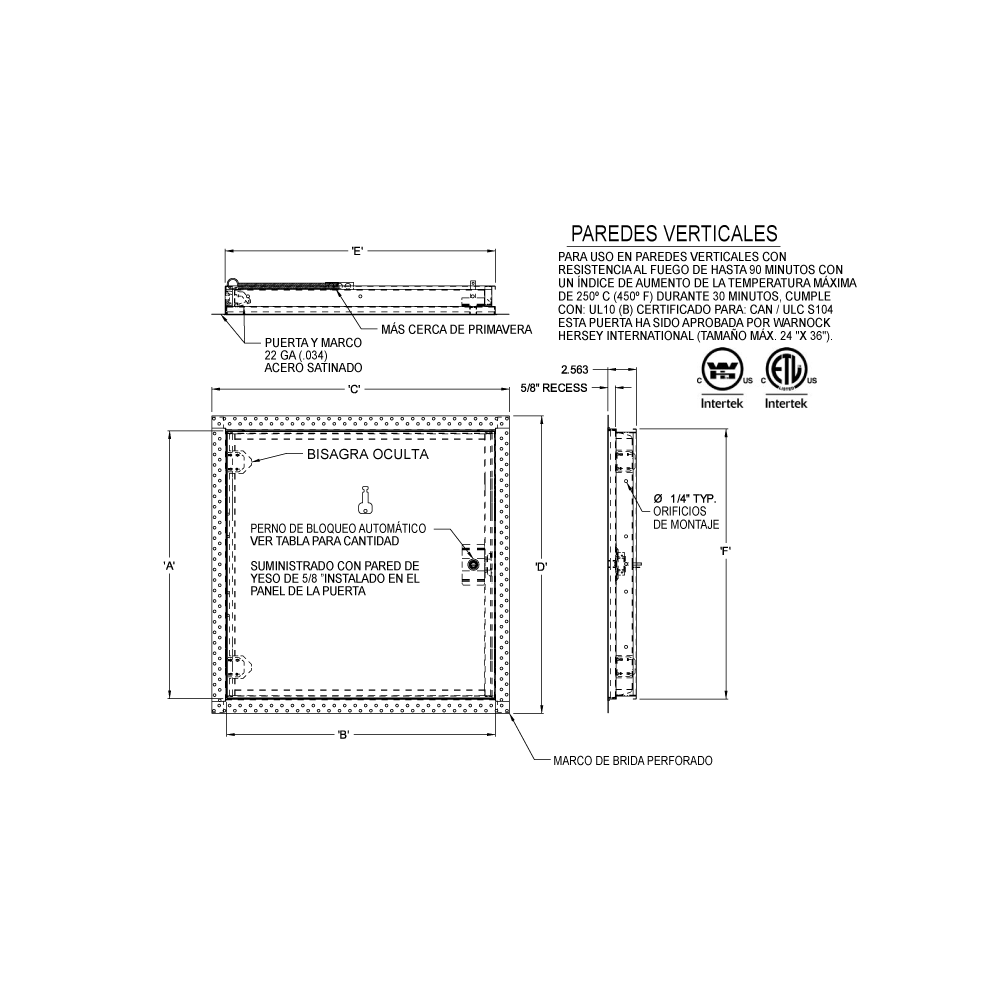

Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | |||
|---|---|---|---|---|
| In. | mm | Bolt | lbs.kg | . |
| 12 X 12 | 305 X 305 | 1 | 8.0 | 3.6 |
| 16 X 16 | 406 X 406 | 1 | 13.0 | 5.9 |
| 18 X 18 | 457 X 457 | 1 | 16.0 | 7.3 |
| 24 X 24 | 610 X 610 | 1 | 25.0 | 11.3 |
| 24 X 36 | 610 X 914 | 2 | 40.0 | 18.1 |
The wall opening is the nominal size of the door + 3/8″ (9mm)
For detailed specifications, see the presentation sheet
What is the value for you?
Complies with internationally accepted fire safety regulations for Walls and Ceilings
Versatile – compatible with masonry, plaster, drywall, tile…
Upward opening models are available
Fire Resistant Door Models with Built-in Drywall Available for Fireproof Rated Drywall Installations
Product Features
For installation on drywall walls that require hiding the door panel in line with the environment
For wall use, fire resistant for up to 90 minutes with a maximum temperature rise of 250°C (450°F) for 30 minutes
Recessed armored door equipped with 5/8″ fire-resistant drywall.
UL 10(b) and ULC S104 Test Standards
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
