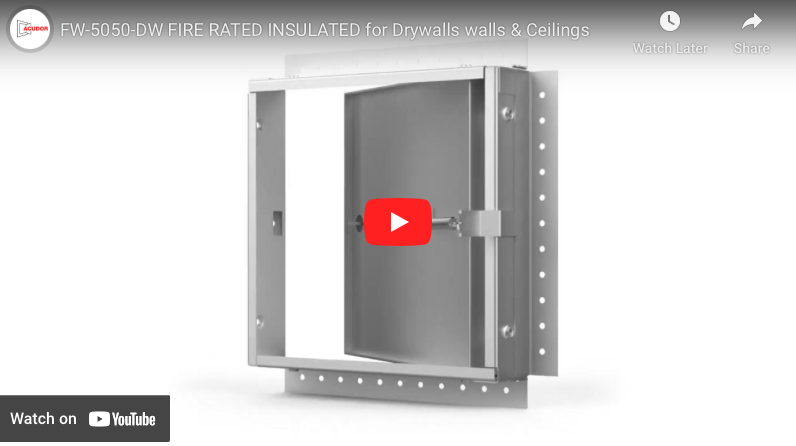

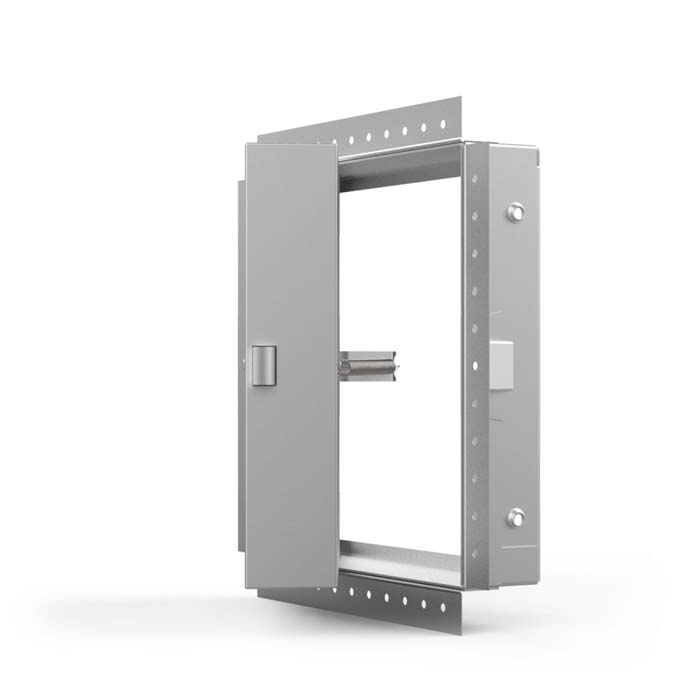

FW-5050-DW
Acudor FW-5050-DW : For drywall, walls and ceilings with tape edge for galvanized steel drywall. For when temperature rise or heat transmission are a factor.
- Material
Steel or Stainless Steel
- Door:
20 Gauge, filled with 2″ thick fire-resistant insulation Mounting Frame: 16 Gauge, Flange to be Rimmed with Drywall Tape
- Hinge:
Hidden
- Fire Resistance:
(Walls) UL — 1-1/2 hours “B” label. UL — 2 hours “B” label. Maximum size: 36 x 48. (Ceilings) Warnock Hersey International 3 hours rated on a non-combustible roof. 1 hour rated on a combustible roof. Maximum size: 24 x 36.
- Standard Deadbolt:
Universal lock with self-deadbolt, operated by fluted knob or flush key. Doors can be prepared for recessed cylinder locks (Master Keys).
- Finishing:
Baked white primer coat (additional finishing paint recommended for increased corrosion resistance)
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | |||
|---|---|---|---|---|
| In. | mm | Bolt | lbs.kg | . |
| 8 X 8 | 203 X 203 | 1 | 5.7 | 2.6 |
| 10 X 10 | 254 X 254 | 1 | 7.5 | 3.4 |
| 12 X 12 | 305 X 305 | 1 | 9.4 | 4.3 |
| 14 X 14 | 356 X 356 | 1 | 11.7 | 5.3 |
| 16 X 16 | 406 X 406 | 1 | 14.3 | 6.5 |
| 18 X 18 | 457 X 457 | 1 | 17.5 | 7.9 |
| 22 X 30 | 559 X 762 | 2 | 34.2 | 15.5 |
| 22 X 36 | 559 X 914 | 2 | 40.0 | 18.1 |
| 24 X 24 | 610 X 610 | 1 | 27.3 | 12.4 |
| 24 X 30 | 610 X 672 | 2 | 37.0 | 16.8 |
| 24 X 36 | 610 X 914 | 2 | 41.5 | 18.8 |
| *24 X 48 | 610 X 1219 | 2 | 52.9 | 24.0 |
| *30 X 30 | 762 X 762 | 2 | 42.0 | 19.1 |
| *36 X 36 | 914 X 914 | 2 | 58.2 | 26.4 |
| *36 X 48 | 914 X 1220 | 2 | 76.0 | 34.5 |
*Not rated for roofing
The wall opening is the nominal size of the door + 3/8″ (9mm)

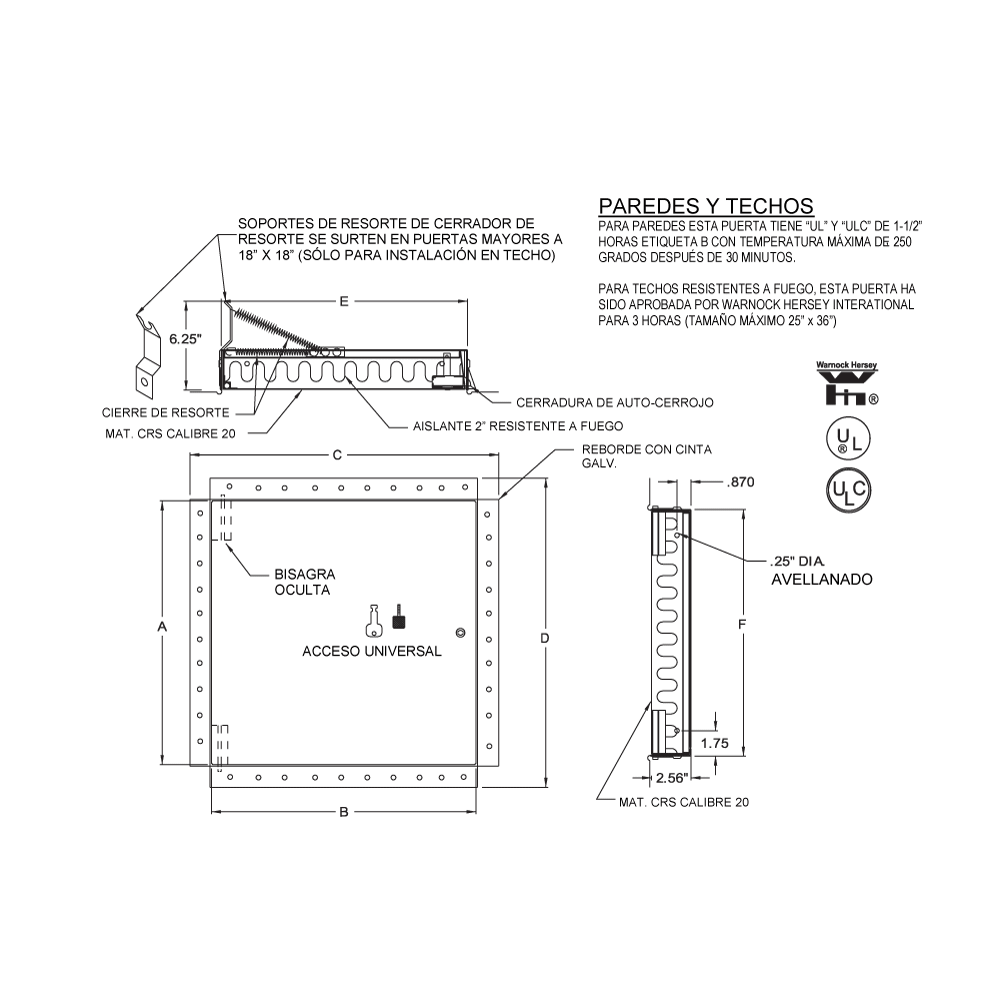

For detailed specifications, see the presentation sheet
What is the value for you?
Complies with internationally accepted fire safety regulations for Walls and Ceilings
Versatile – compatible with masonry, plaster, drywall, tile…
Upward opening models are available
Fire Resistant Door Models with Built-in Drywall Available for Fireproof Rated Drywall Installations
Product Features
(Walls): UL — 1-1/2 hour “B” label. ULC: 2-hour “B” label. Maximum size: 36 x 48. (Roofs): Warnock Hersey International with 3-hour classification on a non-combustible roof. 1 hour rated on a combustible roof. Maximum size: 24 x 36
20-gauge door panel, filled with 2″ thick fire-resistant insulation

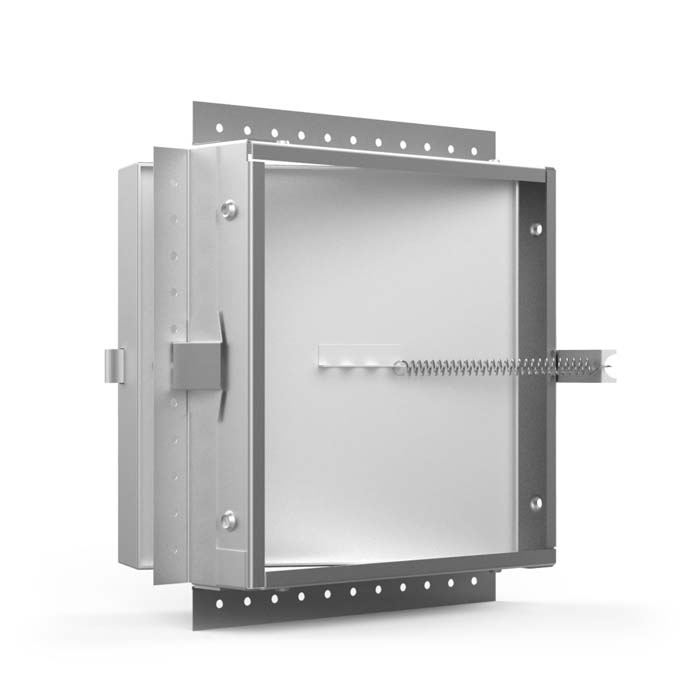

Release of the interior latch
Door panel filled with 2″ thick fire-resistant insulation
