FW-5050-UP

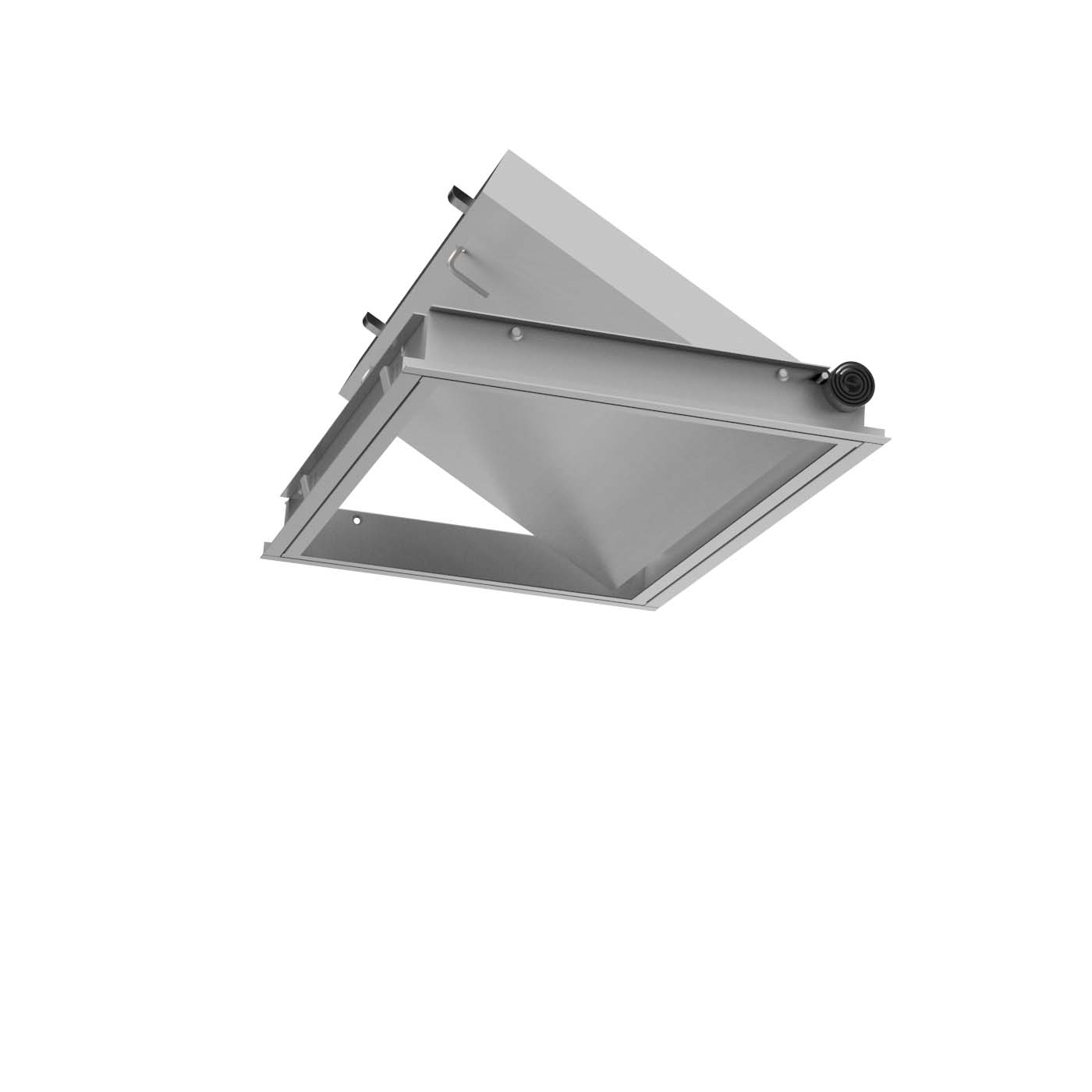

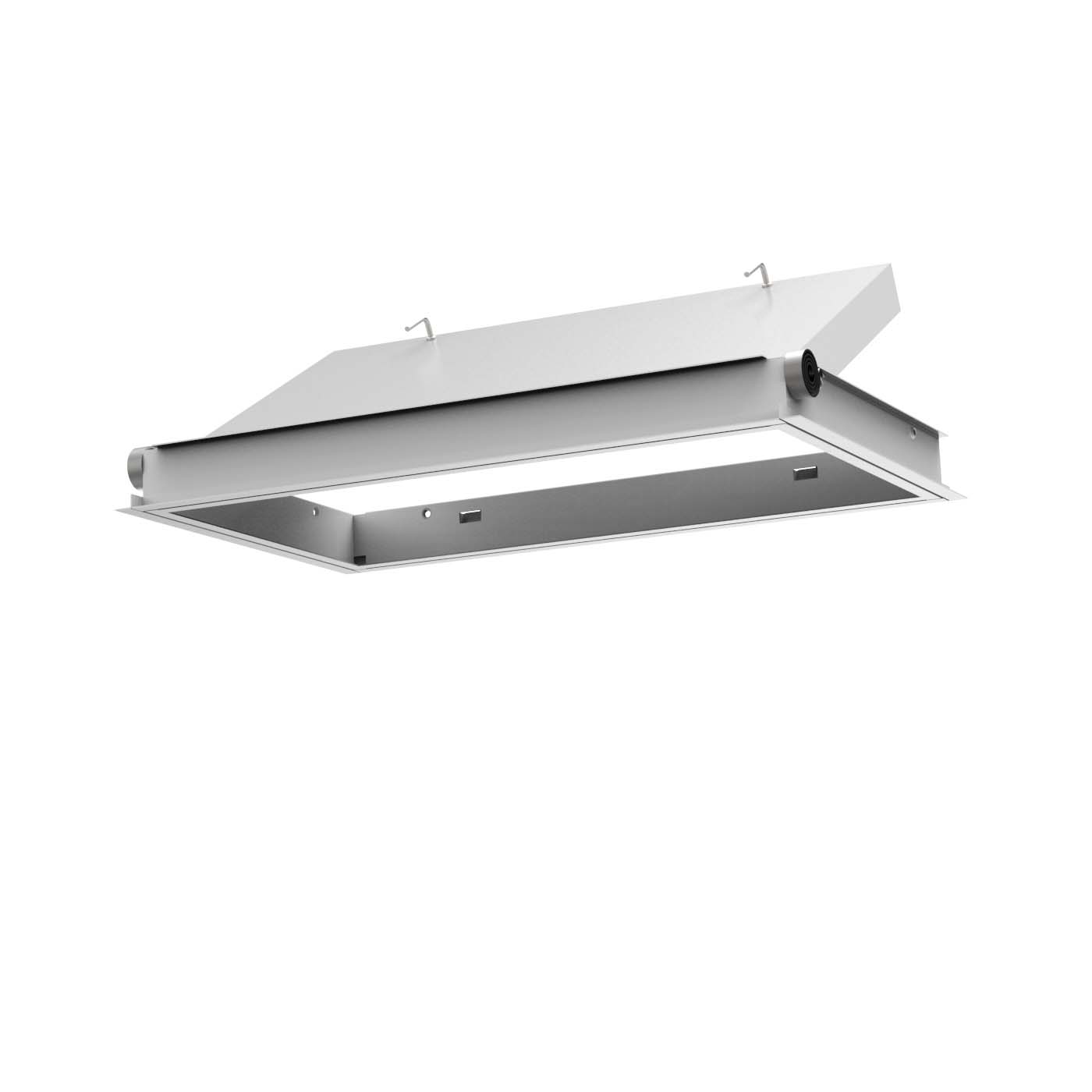

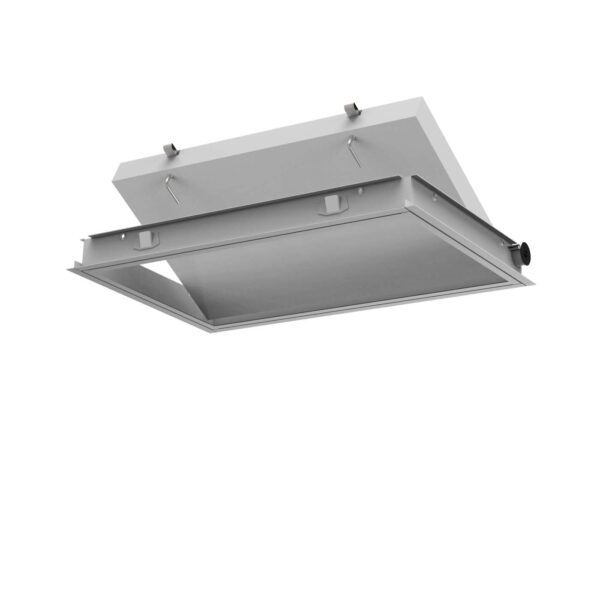

Acudor FW-5050-UP : Insulated door, fire resistant, for inward opening in ceilings.
- Material:
Steel or Stainless Steel
- Door:
16 Gauge, Flush Frame with reinforced edge filled with 2″ thick fire insulator
- Mounting Frame:
16-gauge mounting frame, with 1″ wide trim
- Hinge:
Concealed with coil spring for cushioning
- Fire Resistance:
For walls: UL — 1-1/2 hours “B” label. UL — 2 hours “B” label. Maximum size: 24 x 36. For Roofs: Warnock Hersey International 3 hours rated on a non-combustible roof. 1 hour rated on a combustible roof. Maximum size: 24x 36
- Standard Deadbolt:
L Handle L – operable from both sides
- Finishing:
Baked white primer coat (additional finishing paint recommended for increased corrosion resistance)
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | |||
|---|---|---|---|---|
| In. | mm | Bolt | lbs.kg | . |
| 22 X 36 | 559 X 914 | 2 | 38 | 17.2 |
| 22 X 30 | 559 X 762 | 2 44 | 20.0 | |
| 24 X 24 | 610 X 610 | 1 | 46 | 20.9 |
| 24 X 36 | 610 X 914 | 2 49 | 22.2 | |
The wall or ceiling opening is the nominal size of the door + 1/2″ (12 mm)

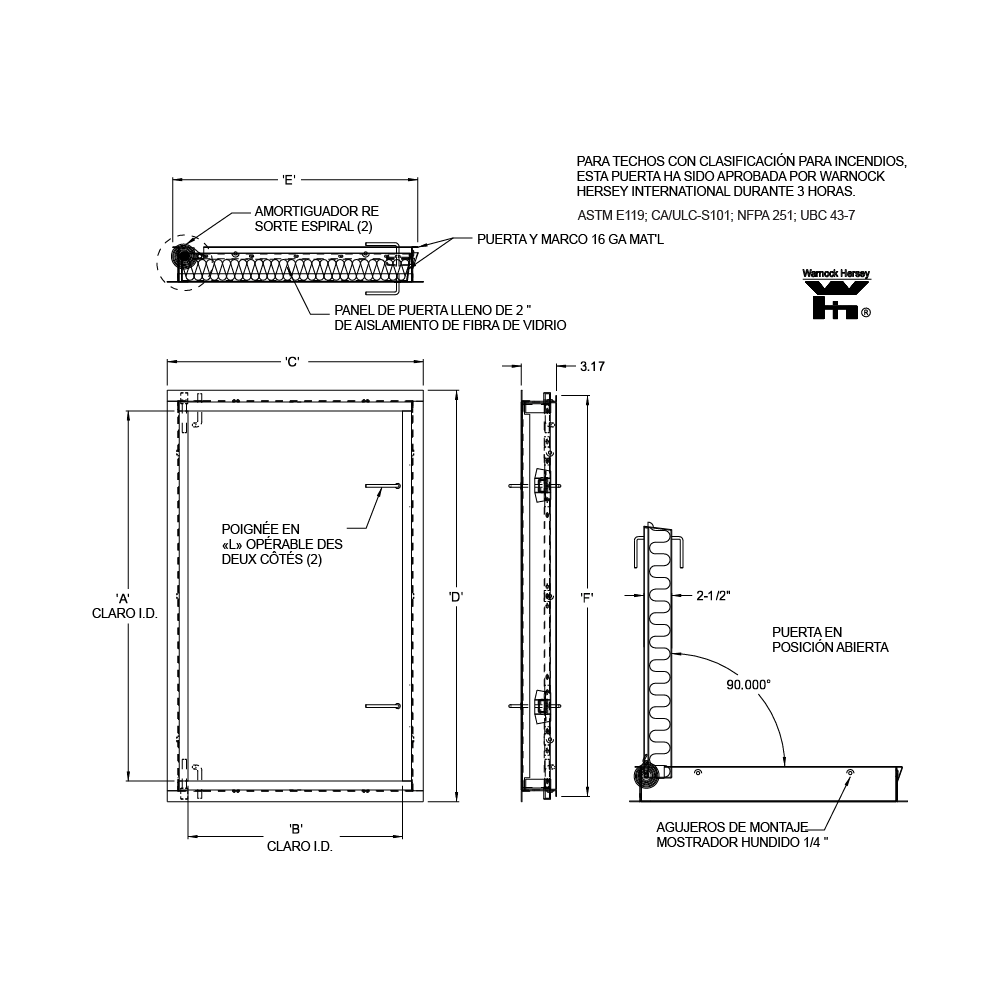

For detailed specifications, see the presentation sheet
What is the value for you?
Complies with internationally accepted fire safety regulations for Walls and Ceilings
Versatile – compatible with masonry, plaster, drywall, tile…
Upward opening models are available
Fire Resistant Door Models with Built-in Drywall Available for Fireproof Rated Drywall Installations
Product Features
For roofs: Warnock Hersey International rated for 3 hours on a non-combustible roof. 1 hour rated on a combustible roof. Maximum size: 24x 36
16 gauge door panel. Flush with frame with reinforced edges filled with 2″ thick fire insulation
Release of the interior latch
Inward opening door panel on ceilings.
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
