FWC-5015
Acudor FWC-5015 : For installation on drywall walls that require hiding the door panel consistent with the environment For use on fire resistant roofs that need tested and certified doors that have a fire resistance rating of 90 minutes.

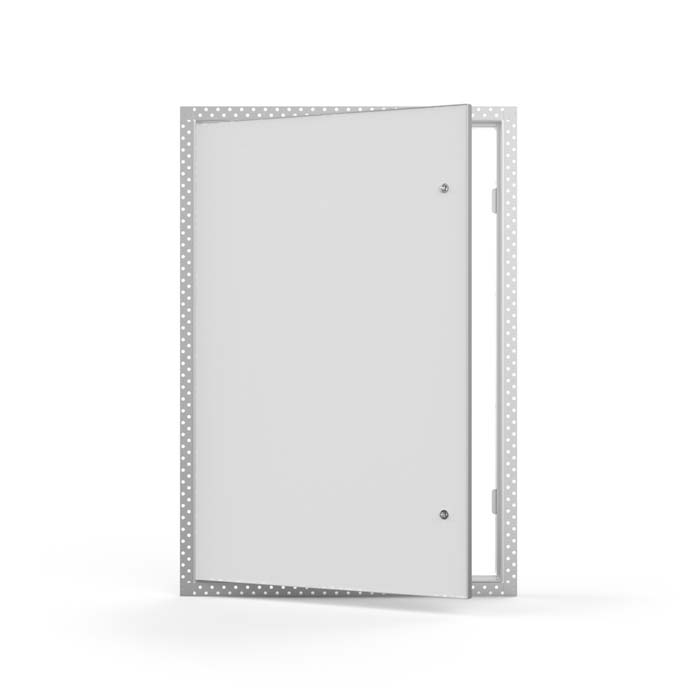

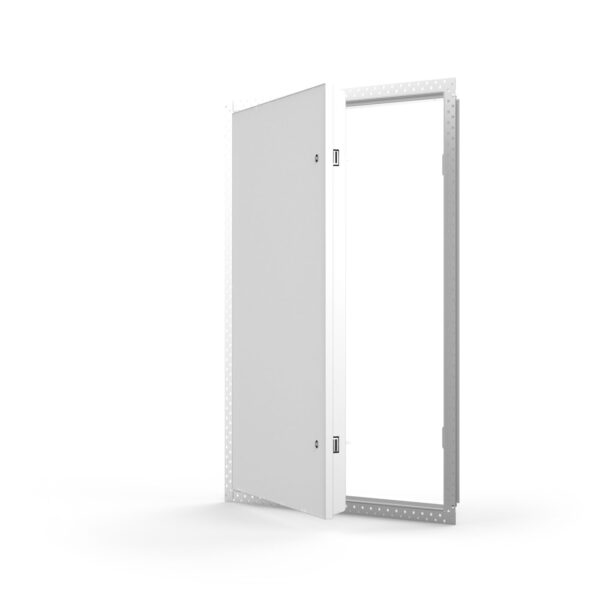

- Door:
22 gauge steel, recessed and fitted with 5/8″ thick drywall suitable for on-site drywall finishing.
- Door Frame:
22-gauge steel press bent for strength and rigidity with pre-drilled flanges for comfortable mounting and suitable for on-site drywall finishing

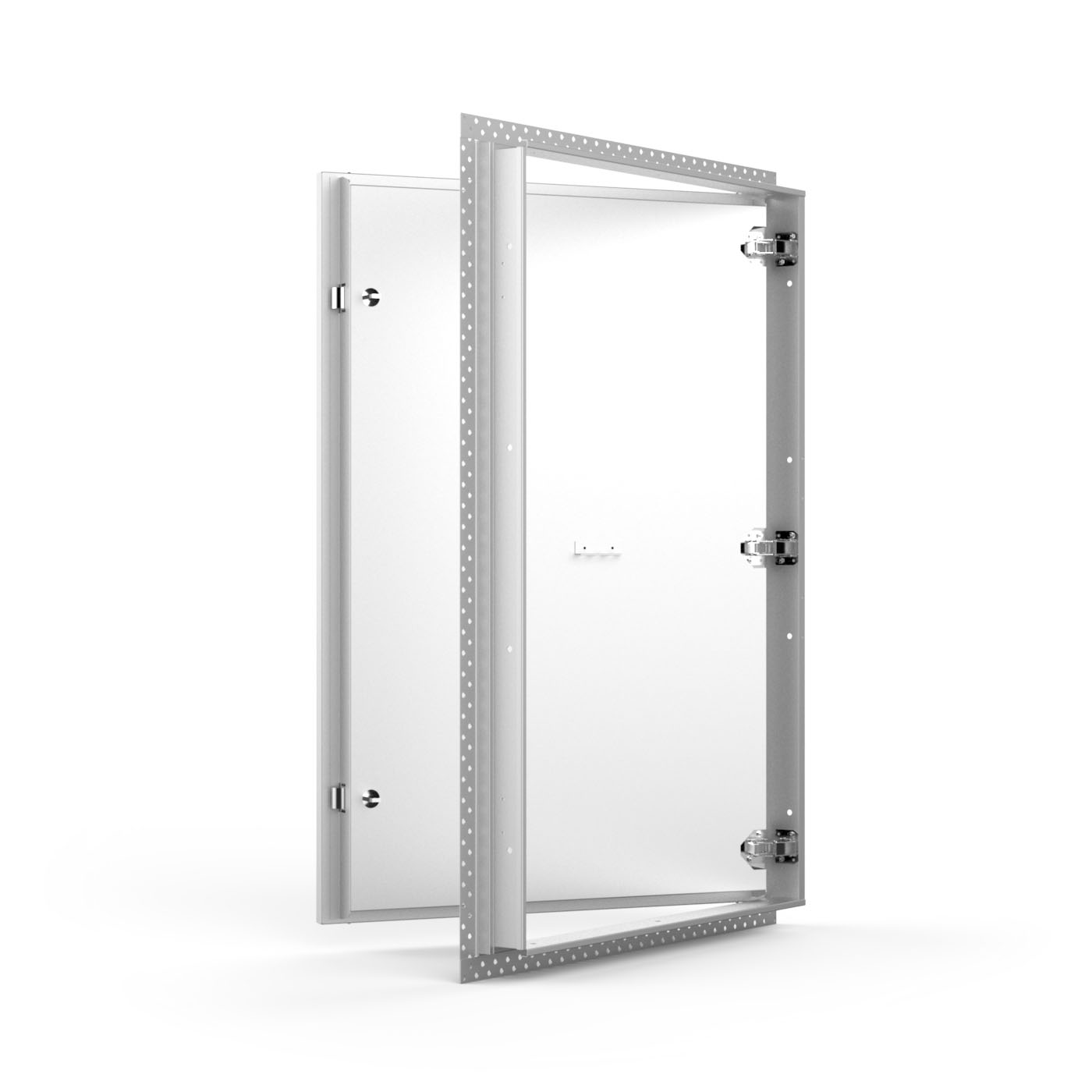

- Hinge:
Hidden
- Fire Resistance (Roofs):
Meets 90-minute Fire Resistance Rating according to CAN ULC S101-14, ASTM E119-16, and NFPA 251
- Bolt:
Self-locking latch, flush key operated
- Finishing:
Satin steel
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | |||
|---|---|---|---|---|
| In. | mm | Opening | lbs.kg | . |
| 12 X 12 | 305 X 305 | 1 | 10.0 | 4.5 |
| 16 X 16 | 406 X 406 | 1 | 16.0 | 7.3 |
| 18 X 18 | 457 X 457 | 1 | 20.0 | 9.1 |
| 24 X 24 | 610 X 610 | 1 | 31.0 | 14.1 |
| 24 X 36 | 610 X 914 | 2 | 46.0 | 20.9 |
Roof opening is +3/8″ (9mm)

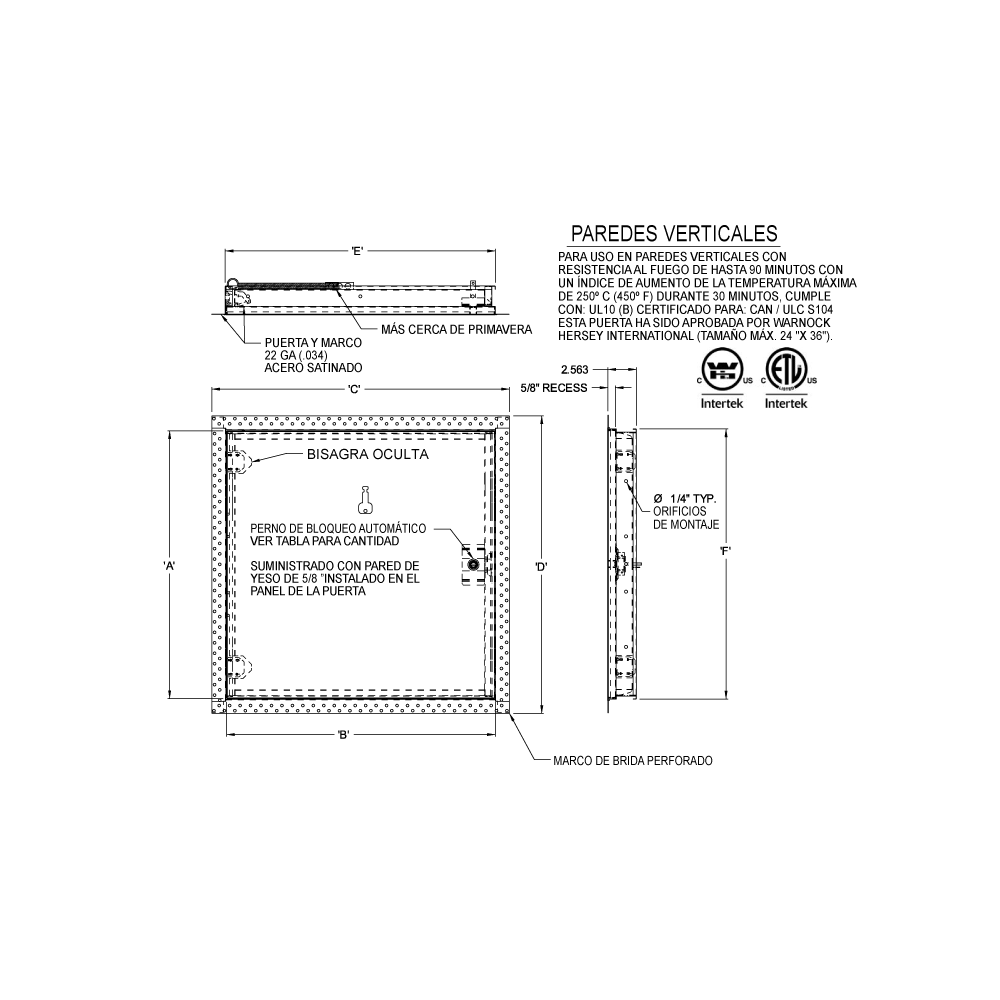

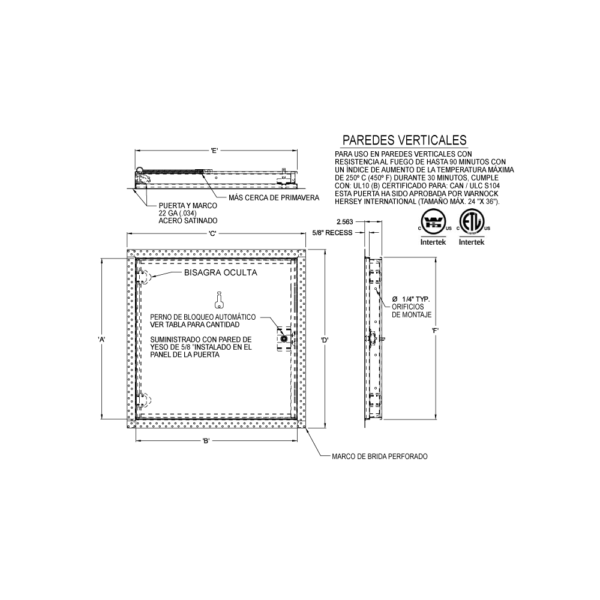

For detailed specifications, see the presentation sheet
Patent Pending
What is the value for you?
Complies with internationally accepted fire safety regulations for Walls and Ceilings
Versatile – compatible with masonry, plaster, drywall, tile…
Upward opening models are available
Fire Resistant Door Models with Built-in Drywall Available for Fireproof Rated Drywall Installations
Product Features
For installation on drywall ceilings that require concealing the door panel in line with the environment
For use on fire-resistant roofs that need tested and certified doors with a 90-minute fire rating.
Recessed armored door equipped with 5/8″ fire-resistant drywall.
Test Standards: CAN ULC S101-14, ASTM E119-16, and NFPA 251
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
