GDD

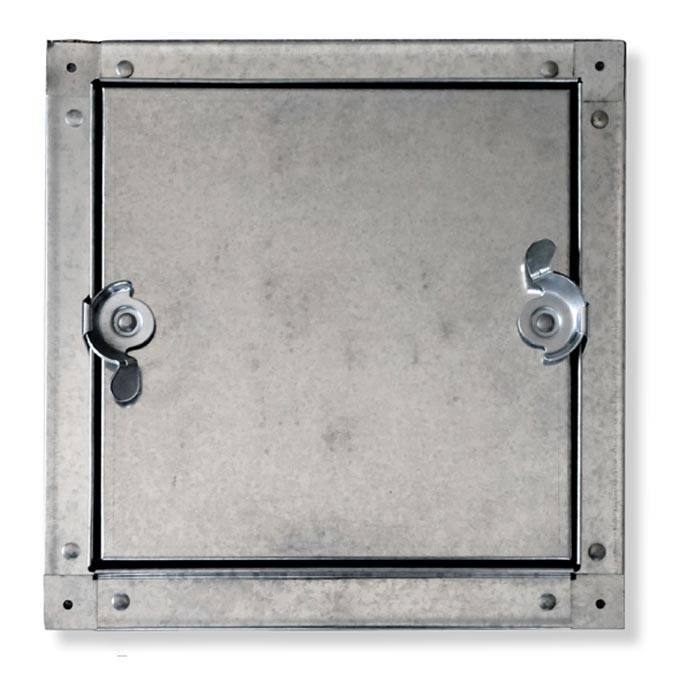

Acudor GDD : Access door for installation in grease ducts. This door meets or exceeds the requirements of all mechanical codes
Product Downloads
GDD
Duct access doors
Downloads
Specifications
STANDARD SIZES
Other sizes available on request
Â
| NO. OF MODEL |
PANEL EXTERNAL DIMENSION |
HEIGHT DEL PANEL |
HEIGHT OF THE PIN |
HOLE SIZE Inches (mm) |
MTG TACKS |
||
|---|---|---|---|---|---|---|---|

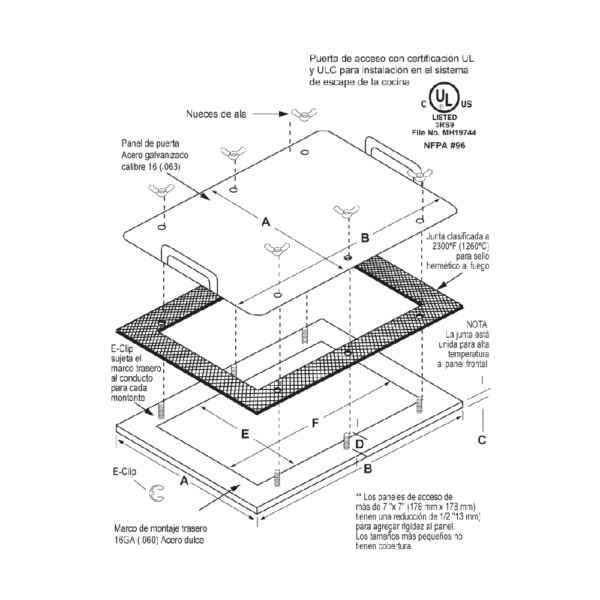

| Â | To | B | C | D | And | F | (NUTS) |
| FGGD0707 | 10″ (254mm) | 10″ (254mm) | .5″ (13mm) | 1″ (25mm) | 7″ (178mm) | 7″ (178mm) | 4.0 |
| FGGD0712 | 10″ (254mm) | 15″ (381mm) | .5″ (13mm) | 1″ (25mm) | 7″ (178mm) | 12″ (305mm) | 6.0 |
| FGGD720 | 10″ (254mm) | 23″ (584mm) | .5″ (13mm) | 1″ (25mm) | 7″ (178mm) | 20″ (508mm) | 10.0 |
| FGGD1212 | 15″ (381mm) | 15″ (381mm) | .5″ (13mm) | 1″ (25mm) | 12″ (305mm) | 12″ (305mm) | 8.0 |
| FGDD1220 | 15″ (381mm) | 23″ (584mm) | .5″ (13mm) | 1″ (25mm) | 12″ (305mm) | 20″ (508mm) | 14.0 |
| FGGD1620 | 19″ (483mm) | 23″ (584mm) | .5″ (13mm) | 1″ (25mm) | 16″ (406mm) | 20″ (508mm) | 16.0 |
| FGGD2020 | 23″ (584mm) | 23″ (584mm) | .5″ (13mm) | 1″ (25mm) | 20″ (508mm) | 20″ (508mm) | 16 |
For detailed specifications, see the presentation sheet
What is the value for you?
Designed for both Sheet Metal Ducting and Fiberglass Ducting
Available in multiple sizes and shapes to suit installation in Square, Rectangular and Circular Ducts
Flame Retardant Rated Grease Duct Doors are available
Designed for quick and hassle-free installation
Product Features
Bolted unit that installs easily in conduit
Duct cutting template included.
No bolts penetrate into the conduit.
Two handles for easy removal and installation
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
