HD-5070

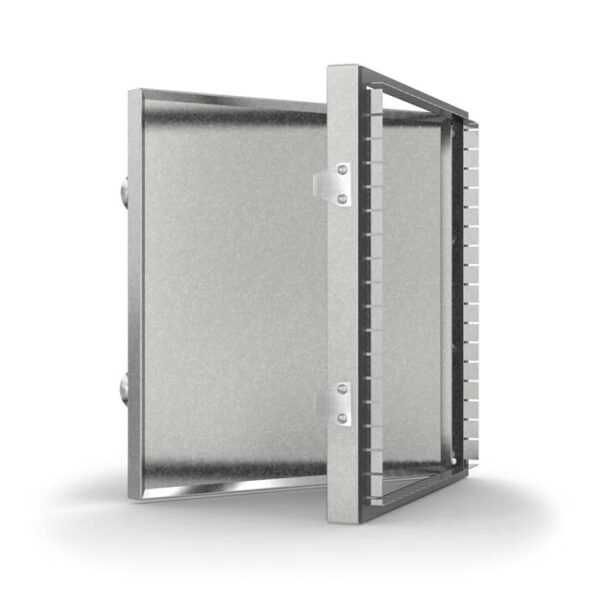

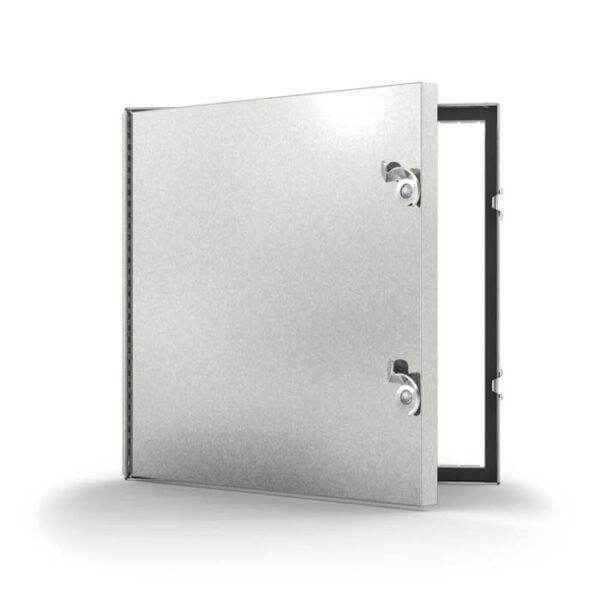

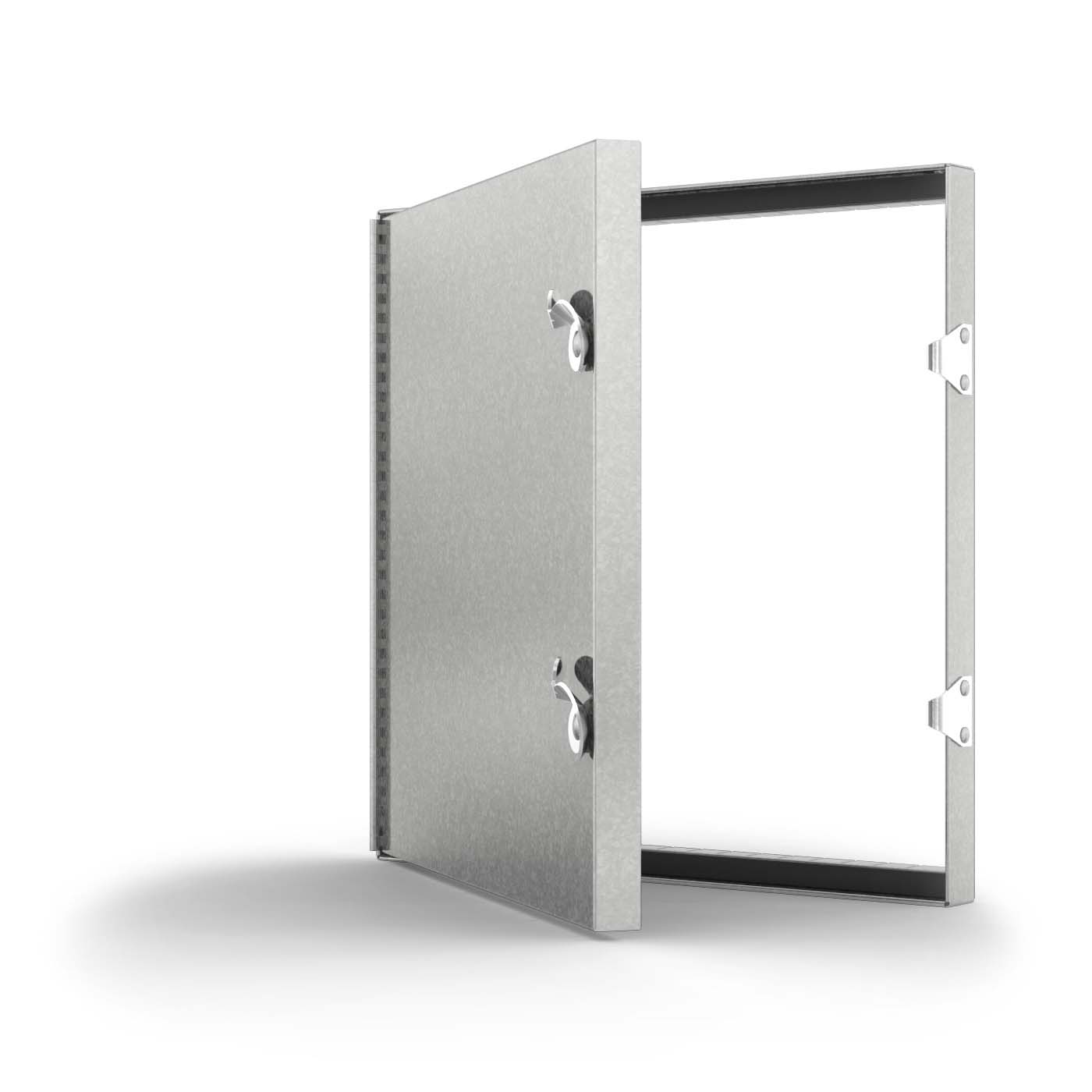

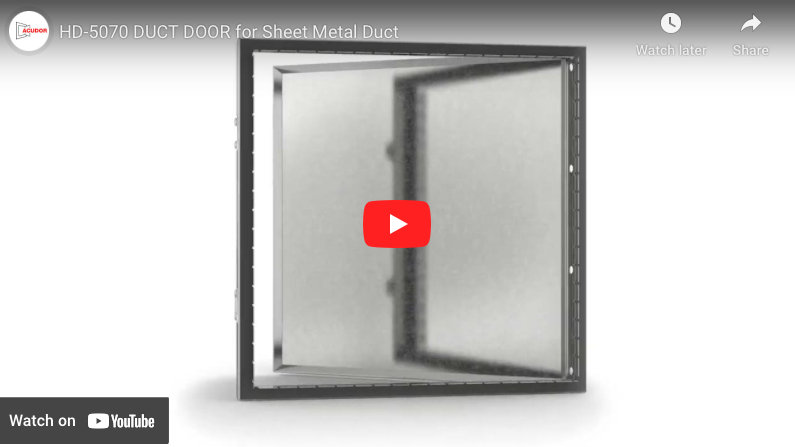

Acudor HD-5070 : Ensures a tight seal without obstructions in the air system
- Material:
Galvanized steel, double panel
- Door:
24 Gauge
- Mounting Frame:
24-gauge with notched 5/8″ hangover tabs
- Packaging:
1/8 “thick by 1/2” wide closed-cell neoprene gaskets between door and frame and also between frame and duct
- Hinge:
Aluminum Continuous Piano Hinge
- Insulator:
Door panel filled with 2 “fiberglass insulation (factor 7.7 R) compressed to 1”.
- Bolt:
Self-tightening cam bolt, hand operated
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Wall Fitting | |||
|---|---|---|---|---|
| Inch | mm | Opening | lbs.kg | . |
| 6 X 6 | 152 X 152 | 4.75 “X 4.75” | 1.10 | 0.5 |
| 8 X 8 | 203 X 203 | 6.75 “X 6.75” | 1.70 | 0.8 |
| 10 X 10 | 254 X 254 | 8.75 “X 8.75” | 2.40 | 1.1 |
| 12 X 12 | 304 X 304 | 10.75 “X 10.75” | 3.25 | 1.5 |
| 14 X 14 | 356 X 356 | 12.75 “X 12.75” | 4.20 | 1.9 |
| 16 X 16 | 406 X 406 | 14.75 “X 14.75” | 5.10 | 2.3 |
| 18 X 18 | 457 X 457 | 16.75 “X 16.75” | 6.40 | 2.9 |
| 20 X 20 | 508 X 508 | 18.75 “X 18.75” | 7.80 | 3.5 |
| 24 X 24 | 610 X 610 | 22.75 “X 22.75” | 10.60 | 4.8 |
Weight per doorWall or ceiling opening is -1 1/4″ (31mm)
For detailed specifications, see the presentation sheet
What is the value for you?
Designed for both Sheet Metal Ducting and Fiberglass Ducting
Available in multiple sizes and shapes to suit installation in Square, Rectangular and Circular Ducts
Flame Retardant Rated Grease Duct Doors are available
Designed for quick and hassle-free installation
Product Features
Insulated door panel, along with gaskets between door and frame5/8″ resacchar tabs with notches inside frame make installation easy
5/8″ hang-over tabs with notches inside the frame make installation easy
These doors are designed for use in LOW to medium pressure up to 3″ W.G. static
