HDSS-6020

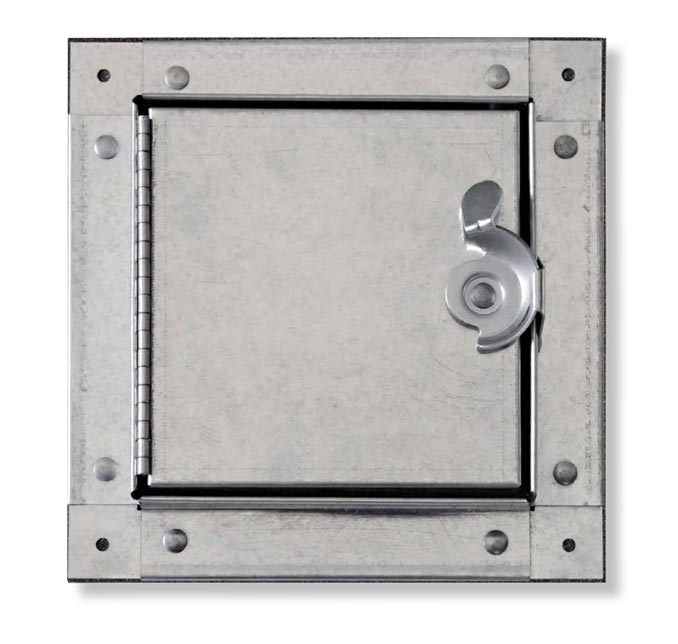

HDSS-6020 Acudor : Provides easy access to sheet ducts

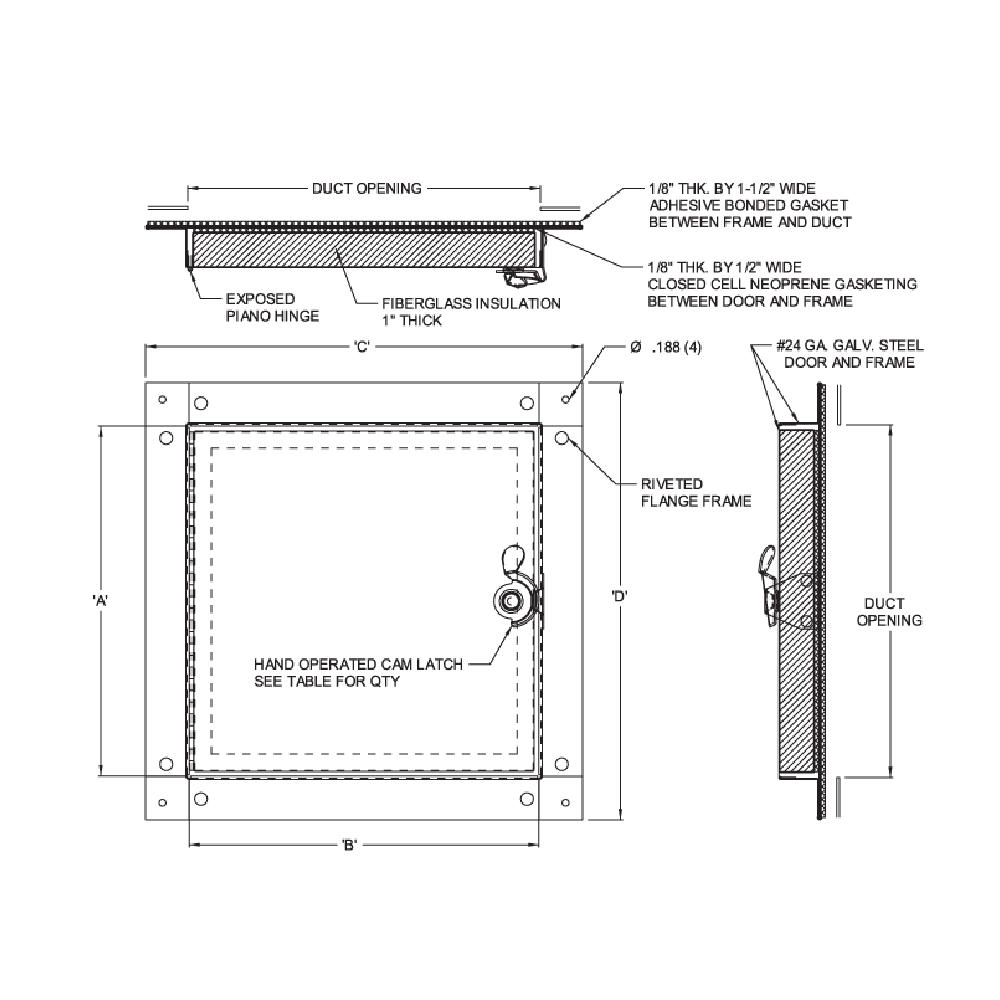

- Door:
24-gauge galvanized steel, double panel
- Frame:
24 gauge galvanized steel
- Hinge:
Aluminum Continuous Piano Hinge
- Insulator:
1″ fiberglass insulated filled door panel
- Packaging:
1/8 “thick by 1/2” wide closed-cell neoprene gaskets between door and frame. 1/8 “thick by 1-1/2” wide adhesive chipboard packaging between frame and duct.
- Bolt:
Deadbolt: Self-tightening, hand-operated cam latches.
- Ironwork:
Hex head screws for foil
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Wall Fitting | ||||
|---|---|---|---|---|---|
| In | mm | Duct Opening | Bolt | Lbs. | kg. |
| 6 X 6 | 152 X 152 | 4.5 X 4.5 | 2 | 1.50 | 0.7 |
| 8 X 8 | 203 X 203 | 6.5 X 6.5 | 2 | 2.20 | 1.0 |
| 10 X 10 | 254 X 254 | 8.5 X 8.5 | 2 | 3.00 | 1.4 |
| 12 X 12 | 305 X 305 | 10.5 X 10.5 | 2 | 3.80 | 1.7 |
| 14 X 14 | 356 X 356 | 12.5 X 12.5 | 4 | 4.90 | 2.2 |
| 16 X 16 | 406 X 406 | 14.5 X 14.5 | 4 | 6.00 | 2.7 |
| 18 X 18 | 457 X 457 | 16.5 X 16.5 | 4 | 7.00 | 3.2 |
| 20 X 20 | 508 X 508 | 18.5 X 18.5 | 4 | 9.10 | 4.1 |
| 24 X 24 | 610 X 610 | 22.5 X 22.5 | 4 | 11.60 | 5.3 |
What is the value for you?
Designed for both Sheet Metal Ducting and Fiberglass Ducting
Available in multiple sizes and shapes to suit installation in Square, Rectangular and Circular Ducts
Flame Retardant Rated Grease Duct Doors are available
Designed for quick and hassle-free installation
Product Features
Provides easy access to sheet metal ducts
Innovative self-adhesive frame for easy installation
Insulated door panel, single cam, hinged
Tested to 10″ SP with minimal leakage
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
