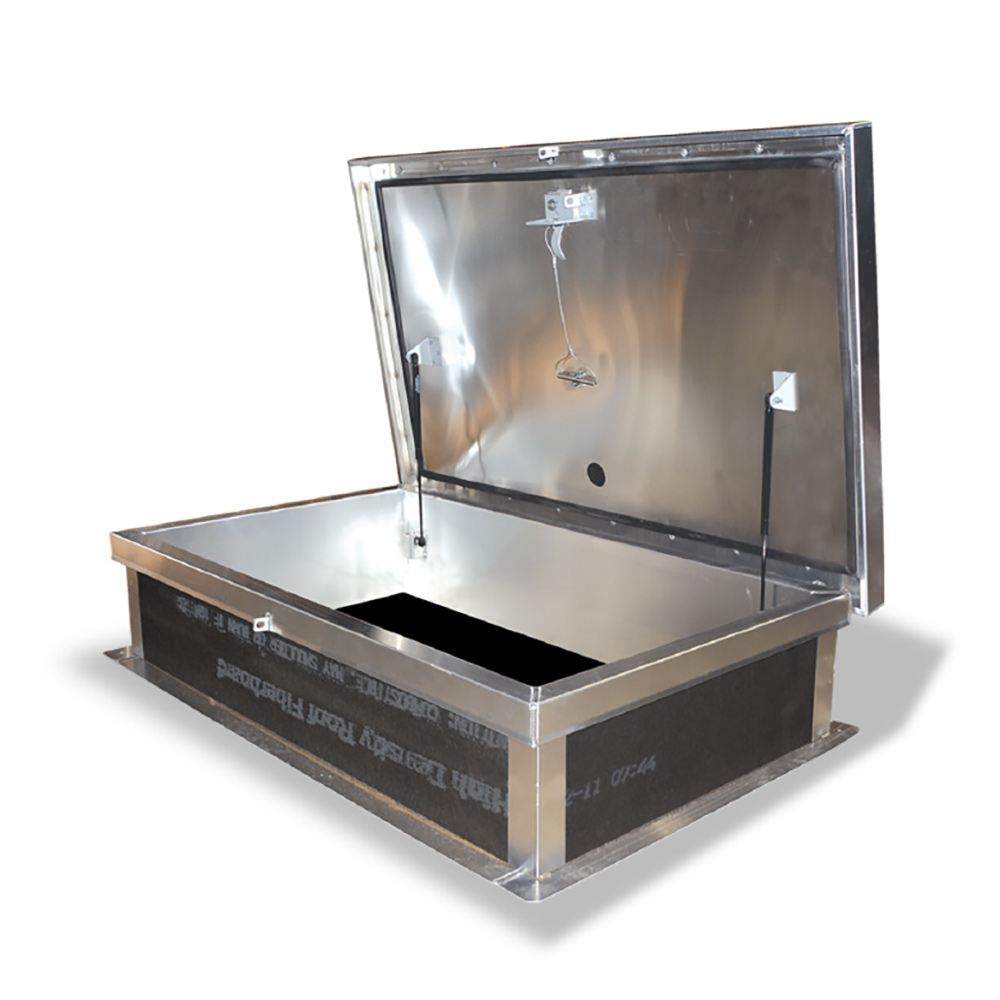

Ship Stair Access (AL)
Aluminum roof hatches for internal staircase access are designed to provide convenient and economical access to a building’s rooftop for maintenance

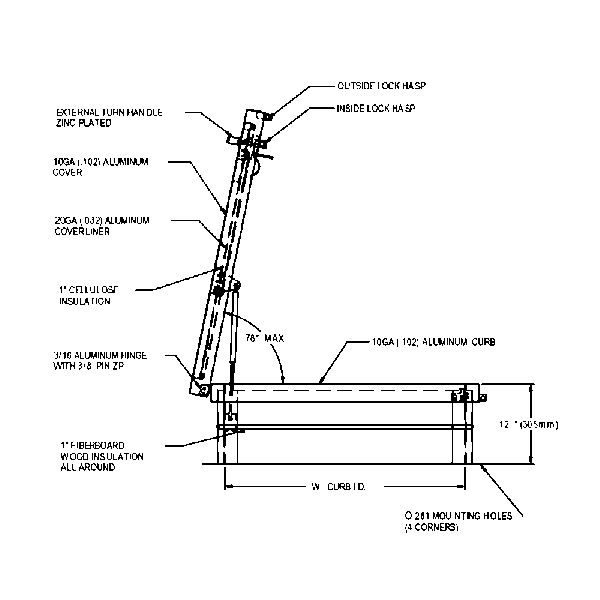

- Cover:
Dual deck construction (“boxed type design”) with 1″ Polyiso (R-6) insulation and continuous EPDM foam reinforcement/weather seal packing that bonds to the inside of the deck to provide a flush and tight fit. Designed to support a live load of 40lb/ft2; The cover is 10-gauge aluminum with 20-gauge aluminum inside the interior lining.
- Curb:
10-gauge aluminum with 1″ thick Polyiso (R-6) insulation on the outside of the curb. The curb is 12″ tall, with a 3.375″ wide bottom flange and pre-drilled mounting holes.
- Hinge:
Heavy-duty aluminum pivot hinges with 3/8″ stainless steel pin
- Aperture:
Gas spring operators allow the cover to open and close with ease. The stainless steel inner handle allows for easy control when closing the cover.
- Door Bolt:
Stainless steel self-locking exterior T-handle with stainless steel interior lock assembly and lever. The unit also has provisions for interior and exterior padlock.
- Finishing:
Laminated finish.
Product Downloads
Specifications
STANDARD RHA SIZES
(other sizes available)
Â
| Curb ID W&L | Weight per Hatch | |
|---|---|---|
| Model | In(mm) | lbs. (kg.) |
| A3862 | 30 x 54 (762 x 1372) | 135 (61.4) |
For detailed specifications, see the presentation sheet
What is the value for you?
Provides safe and easy access for maintenance equipment and equipment transport through the roof
Electrically Powered Models are available
Available in specialized models, including Polycarbonate skylights, Thermal Break designs, high load capacity options
Meets regulatory standards for smoke evacuation in buildings
Product Features
Standard stainless steel hardware on all hatches
1″ Polyiso (R-6) insulation standard on all hatches
EPDM foam eraser/weatherproof sealing gaskets provide weather-tight construction
Supports 40 lbs./sq. ft. Live Load Feet
