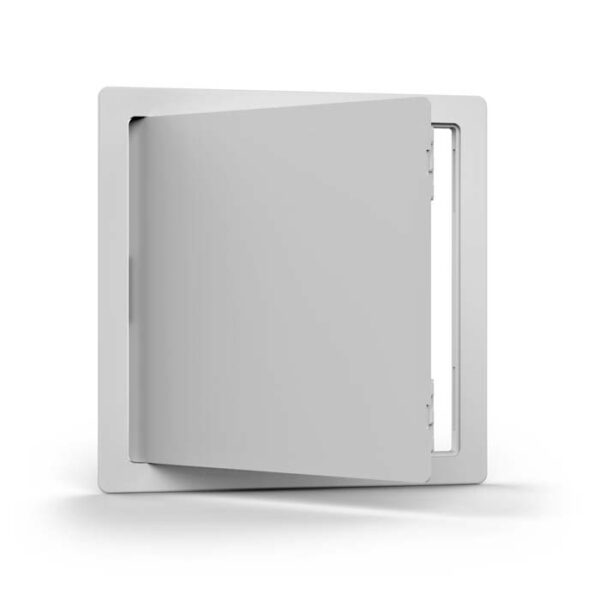

PA-3000
Acudor PA-3000 : Installation in drywall, plaster, masonry, tile or any level surface. Economical and attractive access door for walls and ceilings

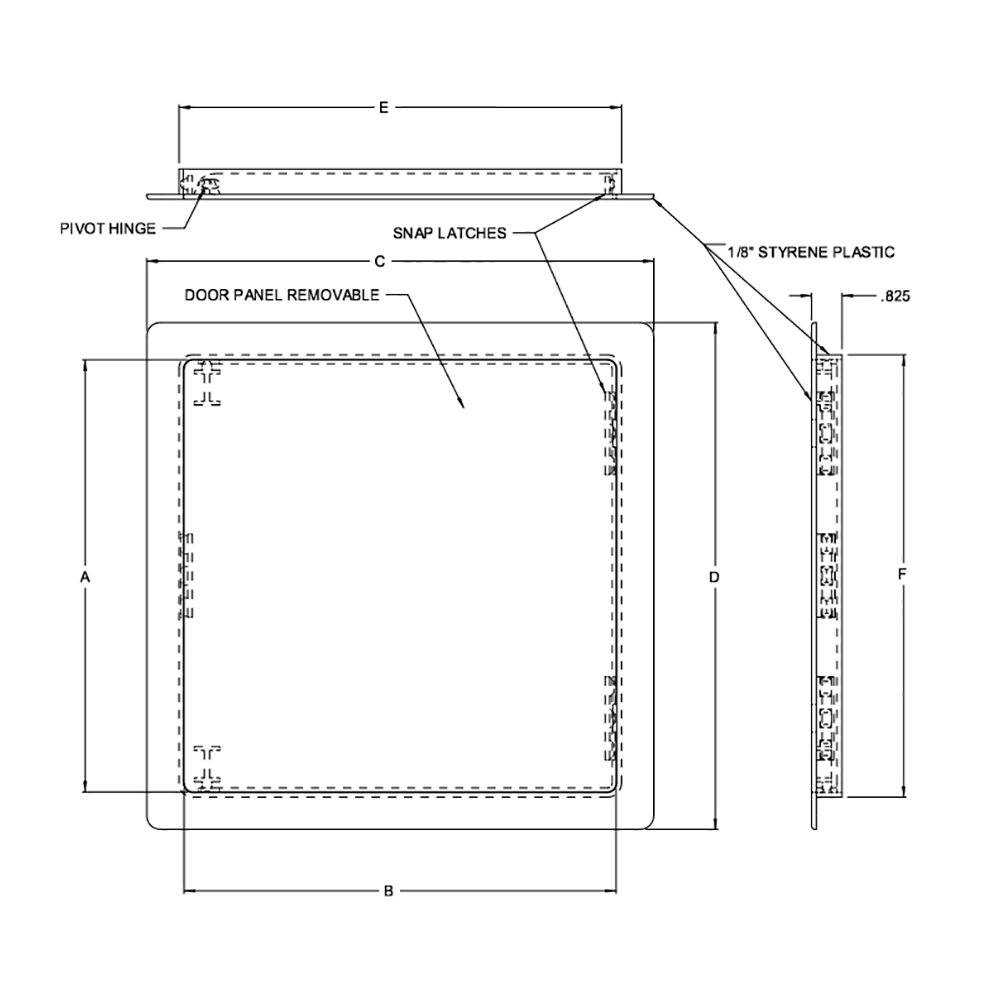

- Door/Door Frame:
1/8 “high-impact styrene plastic with U.V. stabilizers Level with frame — rounded safety corners, one-piece outer flange with 3/4” deep mounting frame
- Standard Deadbolt:
Snap latches allow the door to fit tightly within the frame
- Door Hinge:
Hidden
- Finishing:
White, with textured exposed surfaces
Product Downloads
Specifications
STANDARD SIZES
| Nominal Size Door WyH | Weight Per Door | ||
|---|---|---|---|
| in | mm | lbs.kg | . |
| 4 X 6 | 102 X 152 | 0.30 | 0.14 |
| 6 X 9 | 152 X 229 | 0.55 | 0.25 |
| 8 X 8 | 203 X 203 | 0.65 | 0.29 |
| 12 X 12 | 305 X 305 | 1.20 | 0.54 |
| 14 X 14 | 356 X 356 | 1.60 | 0.73 |
| 14 X 29 | 356 X 737 | 3.30 | 1.50 |
| 18 X 18 | 457 X 457 | 2.50 | 1.13 |
| 22 X 22* | 559 X 559 | 3.80 | 1.72 |
| 24 x 24* | 610 X 610 | 4.50 | 2.04 |
The wall or ceiling opening is W + 3/8″ (9 mm)
For detailed specifications, see the presentation sheet
* 22 x 22 and 24 x 24 sizes are
Designed for wall installation only.
What is the value for you?
Stays flush with the installed surface for a seamless look
Versatile – suitable for installation on walls and ceilings on various surfaces, including masonry, plaster, drywall and tile
Accepts finish paint allowing it to blend into the surrounding surface
Available in multiple design options, including wet areas, corrosive environments, concealed frame, and removable door
Product Features
Designed to provide easy access to walls and ceilings

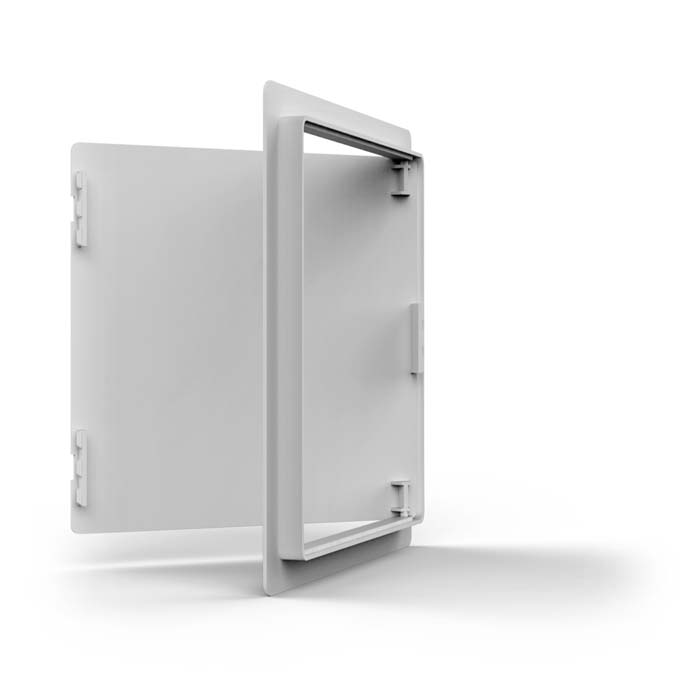

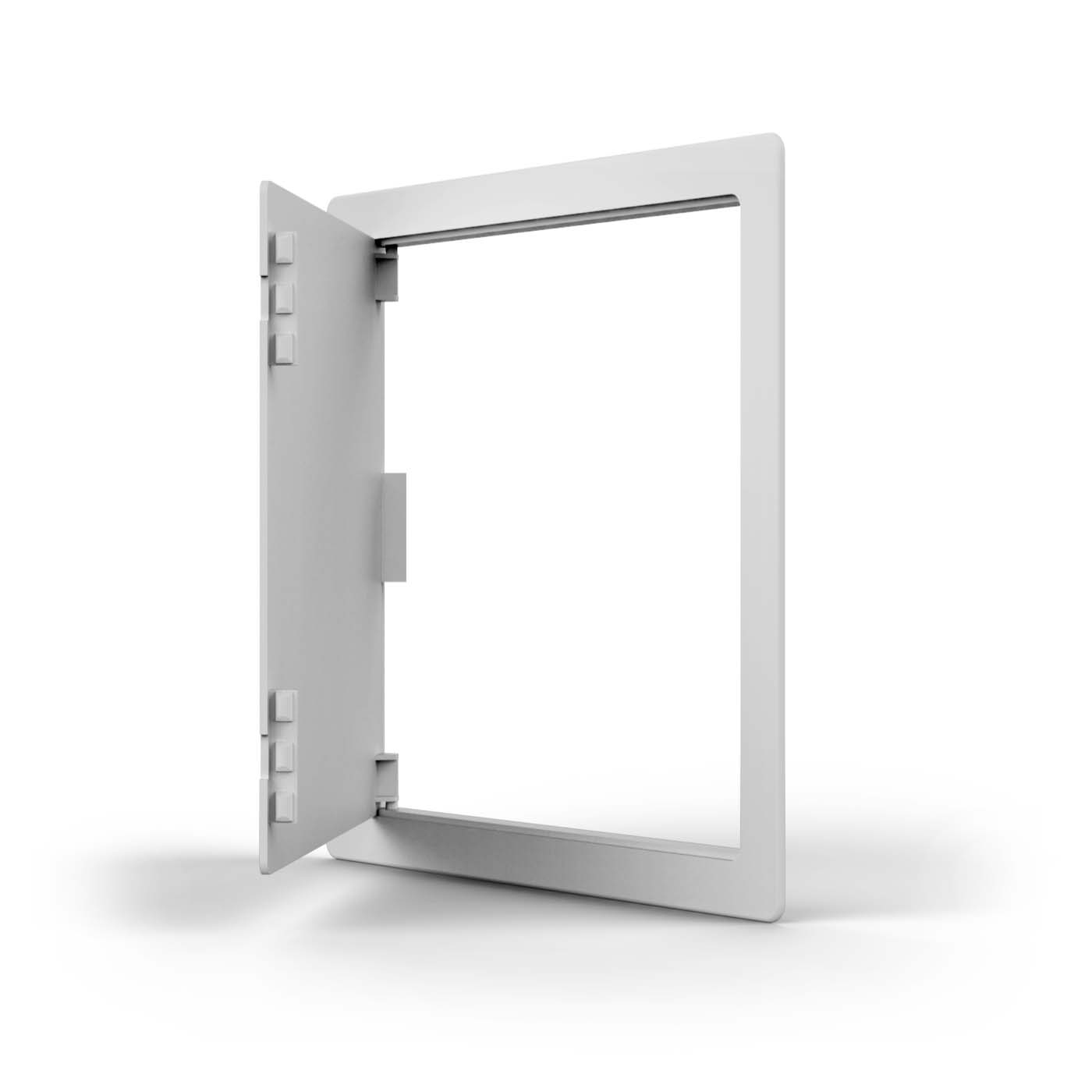

The door is completely removable from the frame and fits tightly with snap-on latches.
Made of 0.125-inch high-impact styrene plastic with UV stabilizers that won’t fade or corrode
The white finish, with textured exposed surfaces, can be left as is or painted to match the surrounding areas.
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
