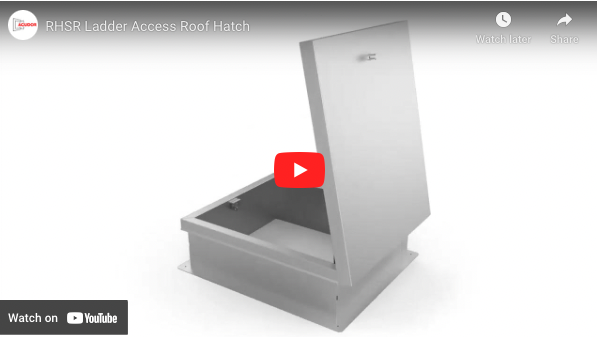

Ladder Access (AL)

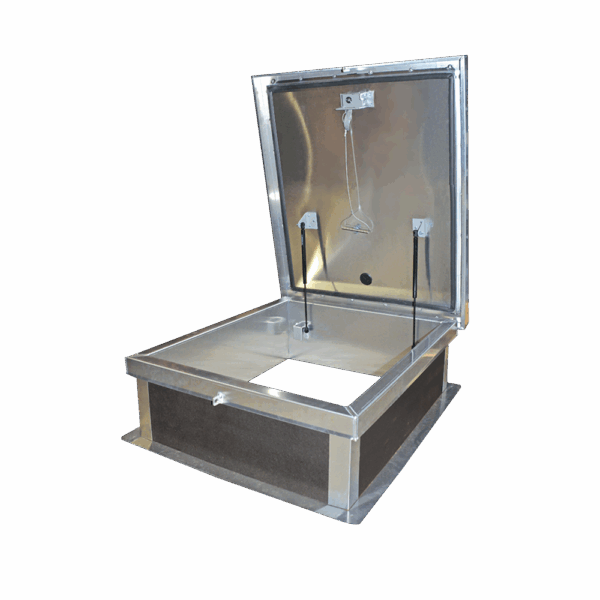

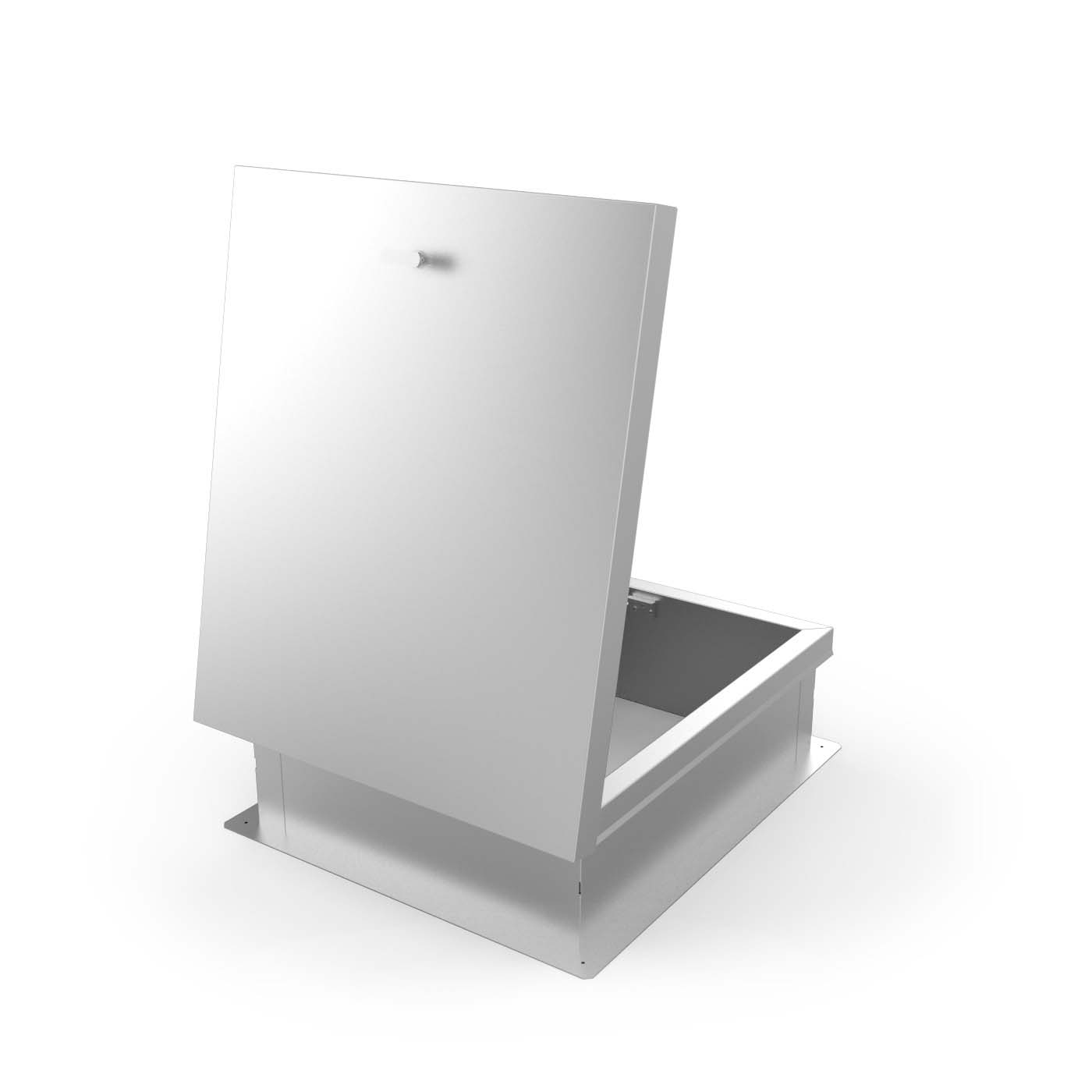

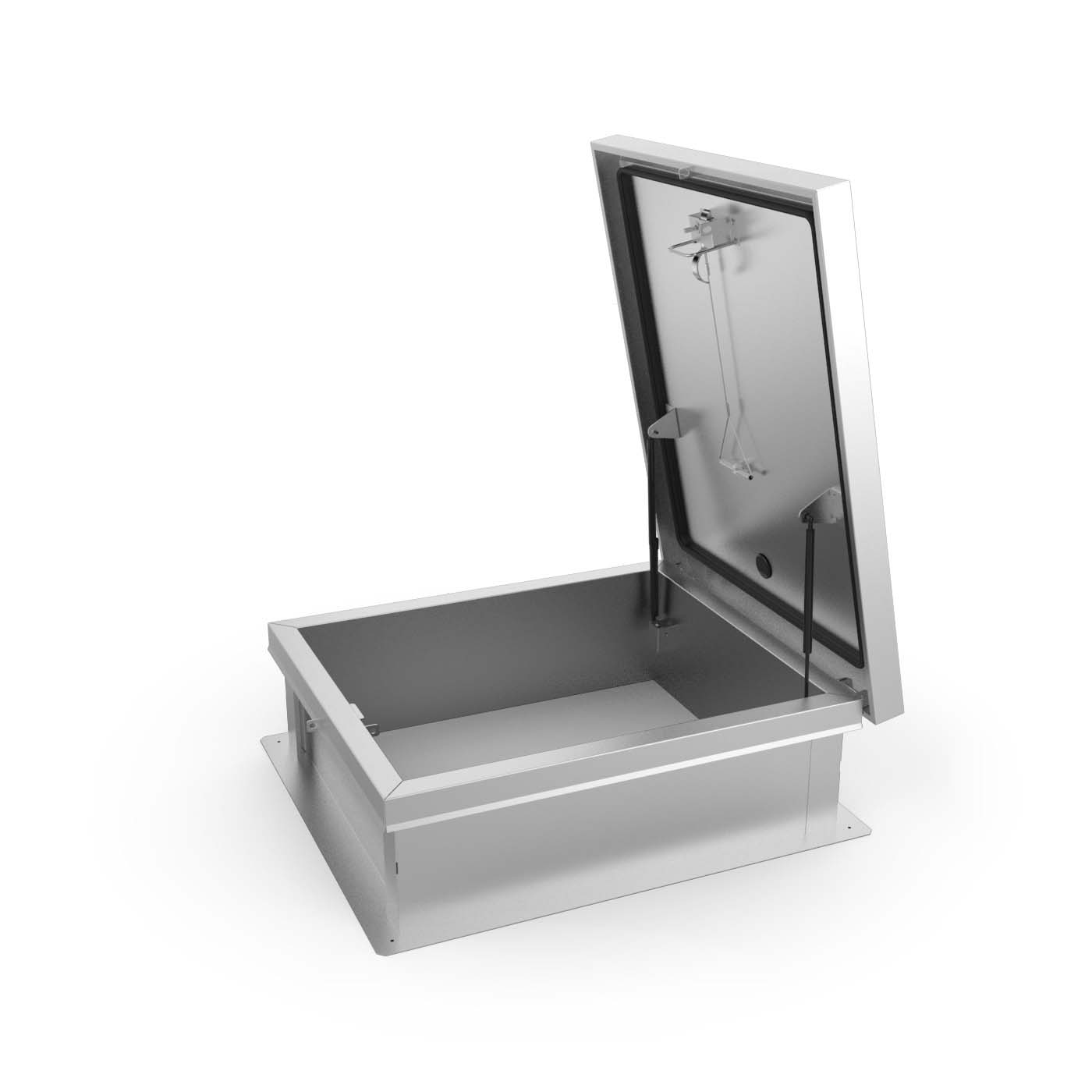

Acudor rooftop ladder access hatches are designed to provide convenient and economical access to the roof of a building

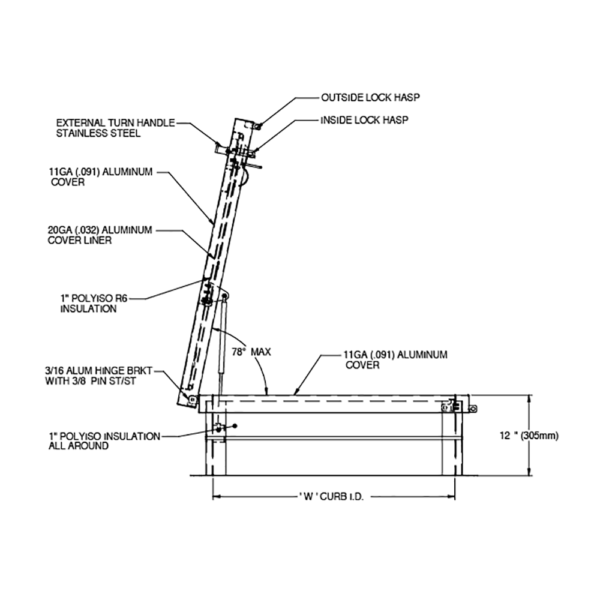

- Cover:
Double-deck construction (“boxed type design”) with 1″ Polyiso (R-6) insulation and continuous EPDM foam reinforcement/weather seal packaging that attaches to the inside of the deck to provide a tight, level fit. Designed to support a live load of 40 lbs.2; The cover is 11-gauge aluminum with 20-gauge aluminum interior lining.
- Curb:
11-gauge aluminum with 1″ thick Polyiso (R-6) insulation on the outside of the curb. The curb is 12″ tall, with a 3.375″ wide bottom flange and pre-drilled mounting holes.
- Hinge:
Heavy-duty aluminum pivot hinges with 3/8″ stainless steel pin
- Aperture:
Gas spring operators allow the cover to open and close with ease The stainless steel inner handle allows for easy control when closing the cover.
- Door Bolt:
Stainless steel self-locking exterior T-handle with stainless steel interior lock assembly and lever. The unit also has provisions for interior and exterior padlock.
- Finishing:
Laminated finish.
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
Â
| W&L kerb ID | eight per hatch | |
|---|---|---|
| Model | In(mm) | lbs. (kg.) |
| A3232 | 24 x 24 (610 x 610) | 60 (27.3) |
| A3238 | 24 x 30 (610 x 762) | 65 (29.4) |
| A3244 | 24 X 36 (610 X 914) | 70 (31.8) |
| A3838 | 30 x 30 (762 x 762) | 80 (36.2) |
| A3844 | 30 x 36 (762 x 914) | 85 (38.6) |
| A4444 | 36 x 36 (914 x 914) | 95 (43.2) |
For detailed specifications, see the presentation sheet
What is the value for you?
Provides safe and easy access for maintenance equipment and equipment transport through the roof
Electrically Powered Models are available
Available in specialized models, including Polycarbonate skylights, Thermal Break designs, high load capacity options
Meets regulatory standards for smoke evacuation in buildings
Product Features
Standard stainless steel hardware on all hatches
EPDM foam eraser/weatherproof sealing gaskets provide weather-tight construction
1″ Polyiso (R-6) insulation standard on all hatches
Supports 40 lbs./sq. ft. Live Load Feet
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
