STAIRS
Create the desired length using 4-foot and 5-foot ladder modules along with a variety of accessories and mounting options.
- Material:
ASTM A36 Steel
- Suspenders:
LAD-H: 2 1/2 “x 3/8”
- Steps:
LAD-H: 1″ day
- Width of Stairs:
20″ interior
- Longitude:
4 “& 5” (special lengths available upon request)
- Weight:
LAD-H: 10.5 lb/ft
Product Downloads
Specifications

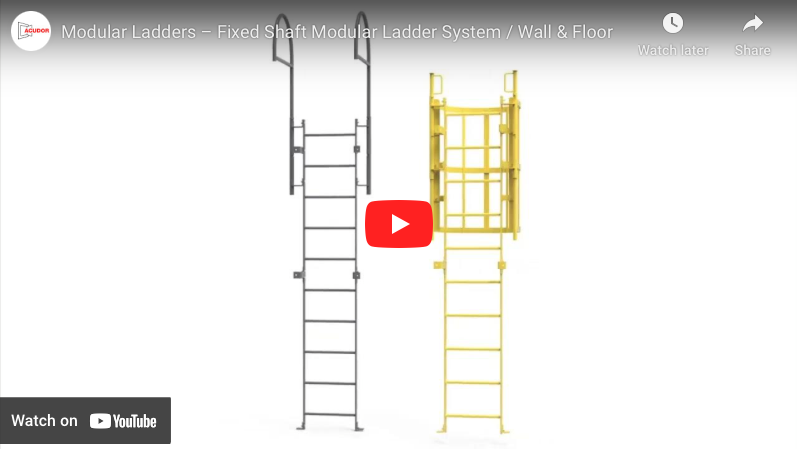

Fixed Axis Modular Ladder System
Additional component material specifications available upon request

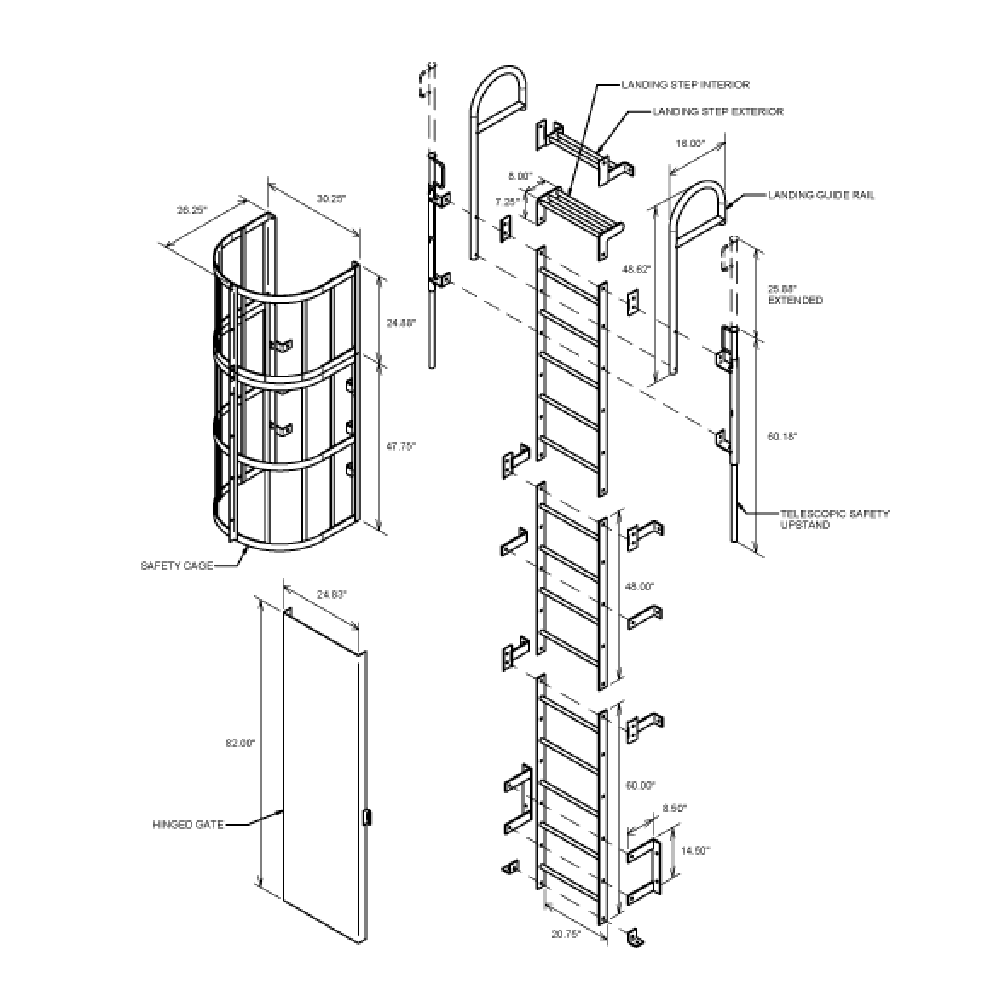

| ARTICLE | DESCRIPTION | PART# |
|---|---|---|
| 1 | Indoor Landing Step c/w Hardware* | LAD-LS-1 |
| 2 | Wall Mount w/w hardware* (8 1/2 “x 5/16”) | LAD-WB-1 |
| 3 | 4’L Ladder | LAD-H-4 |
| 5’L | LAD-H-5 | |
| 4 | Wall Mount Splice w/w Hardware* (8 1/2 “x 5/16”) | LAD-WBS-1 |
| 5 | Floor Bracket c/w hardware* (2 3/4″ x 2 3/4″ x 5/16″) | LAD-FB-1 |
| 6 | 4′ Landing Guide Rail with Mounting Hardware * | LAD-LG-1 |
| 7 | 7′ Hinged door with hinges | Lock bolt & hardware * LAD-HG-1 |
| 8 | Telescopic Safety Bracket w/w hardware * (2′) | LAD-TSPU-2 |
| 9 | 48″ Safety Cage with Hardware * | LAD-CG-1 |
| 10 | Outdoor Landing Step w/w Hardware * | LAD-LS-2 |
| 11 | Hardware Splice Plate * (10 Ga) | LAD-SP-1 |
| 12 | Off-floor wall mount with hardware* (8 1/2″ x 14 1/2″ x 5/16″) | LAD-WBO-2 |
* All mounting hardware mounts the parts to the ladder and not the ladder to the wall or floor.
Carriage bolts (1/2-13 x 11/2″) are included
What is the value for you?
Designed to ensure safe and easy access in elevated areas
Incorporates fall protection systems for greater safety
Meets OSHA regulations for workplace safety
Constructed with materials and finishes resistant to UV exposure and outdoor conditions
Product Features
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
