TD-5025

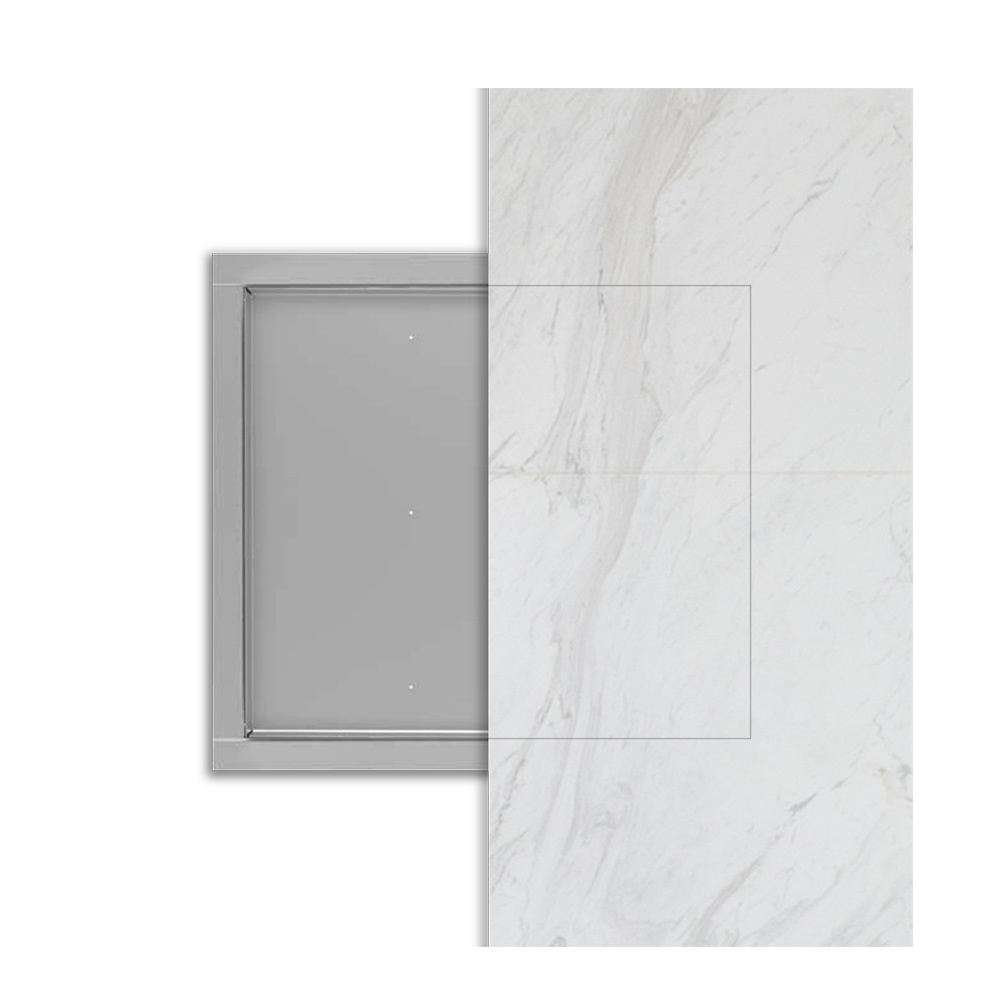

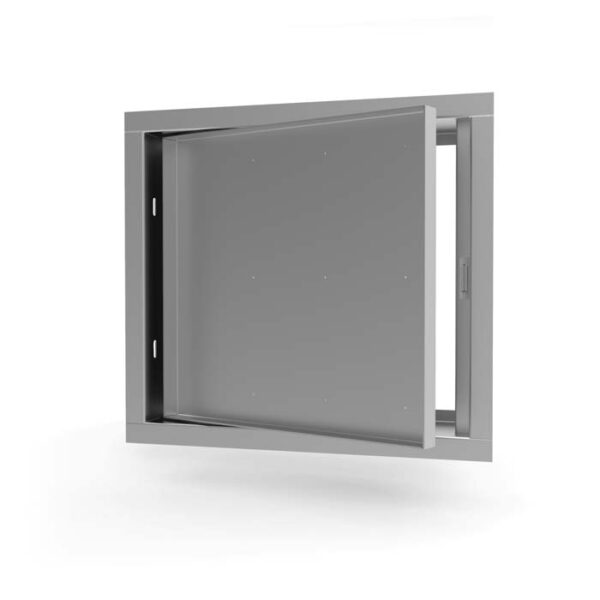

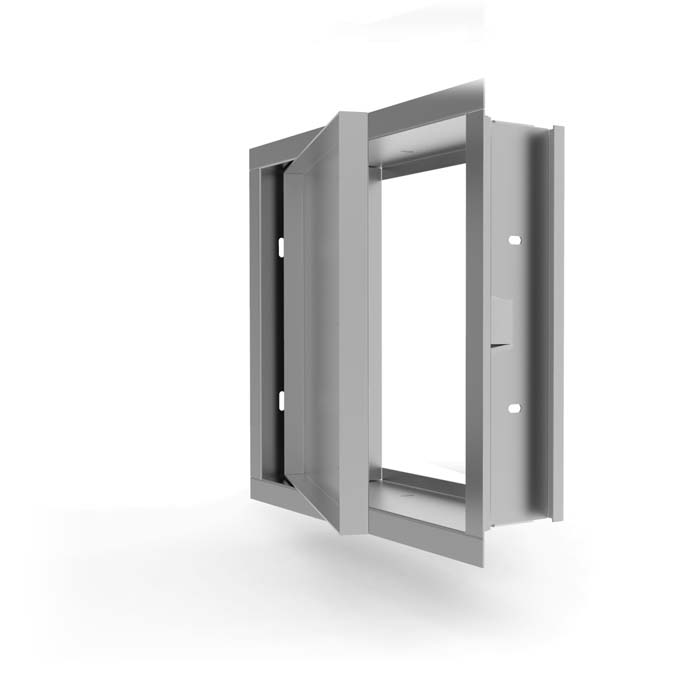

Acudor TD-5025 : This recessed manhole cover is ideal for use on walls with tile or marble. The lid accepts tiles/marbles with grout gaps, which blend harmoniously with the surroundings. The installed lid remains invisible ensuring an architecturally pleasing appearance.
- Material:
16-gauge satin steel
- Lid:
16 Cal. 3/4 “recessed tray to accept 5/8” MDF and third-party glue
- Frame:
16-gauge, press-bending for strength and rigidity
- Hinge:
Concealed and continuous piano hinge
- Standard Deadbolt:
Cam lock
- Optional Locks:
Contact Latch, Magnetic Lock
- Finishing:
Powder-coated RAL 9016
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| The wall opening is the nominal size of the door | Weight Per Door | |||
|---|---|---|---|---|
| In. | mm | Bolt | lbs.kg | . |
| 12 X 12 | 300 X 300 | 1.0 | 10.0 | 4.5 |
| 14 X 14 | 350 X 350 | 1.0 | 13.0 | 5.9 |
| 16 X 16 | 400 X 400 | 1.0 | 15.0 | 6.8 |
| 18 X 18 | 450 X 450 | 1.0 | 18.0 | 8.2 |
| 24 X 24 | 610 X 610 | 1.0 | 25.0 | 11.3 |
| 24 X 36 | 610 X 914 | 2.0 | 34.0 | 15.4 |

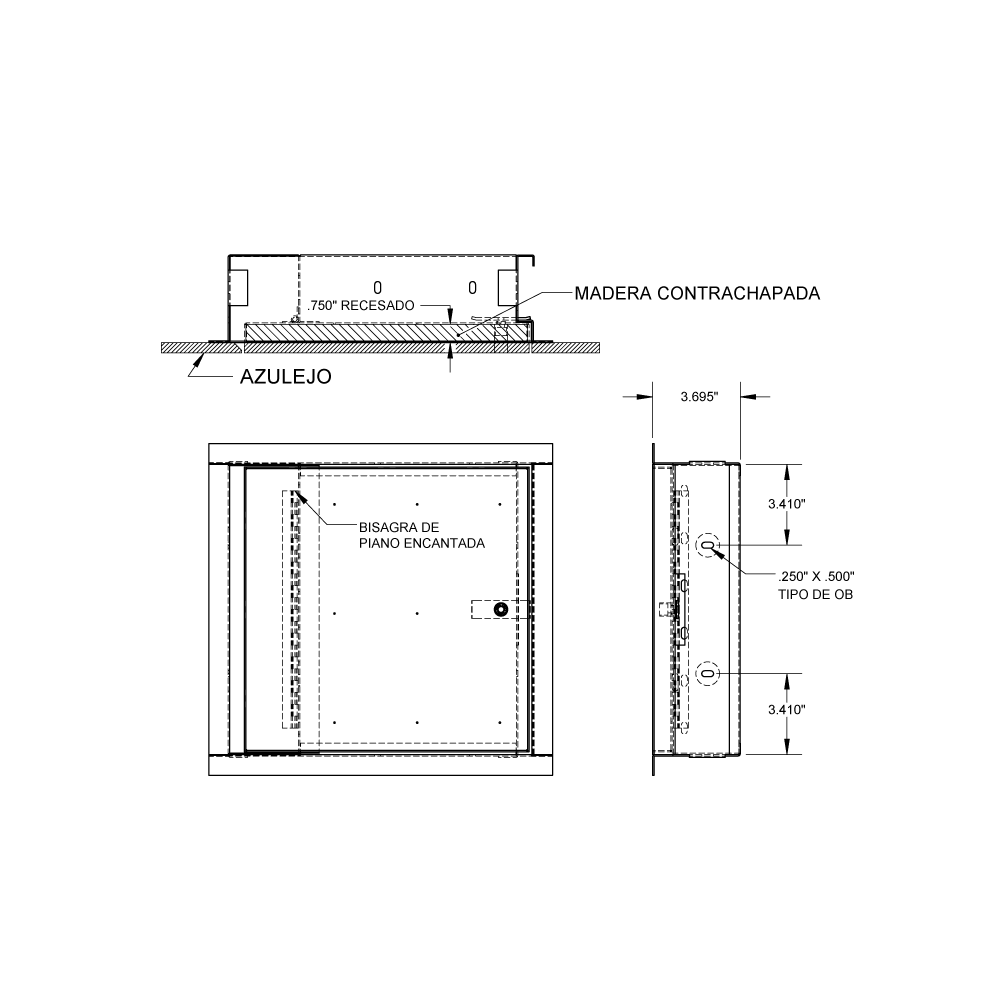

For detailed specifications, see the presentation sheet
What is the value for you?
Wide range of models designed for specialized applications, including flush doors, recessed, interior, exterior, airtight, waterproof, anti-ligature, acoustic, tile, marble, plaster, fan-coil doors, doors for Air Handling Units, Clean Rooms and Laboratories
The highest STC (Sound Transmission Class) and OITC (Outdoor to Indoor Transmission Class) acoustic ratings on the market
Custom designs available upon request, including automatic opening, inward opening, vandal-resistant, and special materials or finishes
Available in Aluminum, Steel, Stainless Steel, Galvanized Steel, Galvanneal Steel
Product Features
The door accepts tile/marble with grout spaces, blending harmoniously with the surroundings
The installed door remains invisible, ensuring an architecturally pleasing appearance
Zinc-coated steel provides superior corrosion resistance.
Heavy-duty concealed hinge
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
