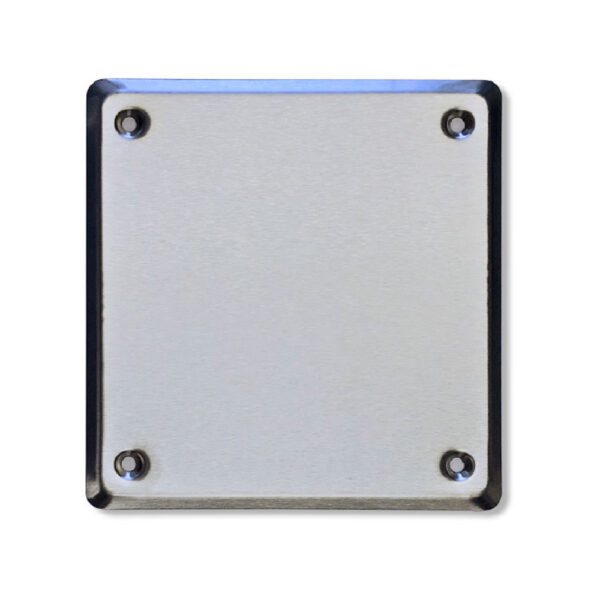

UCSS
Provides fast, convenient, and architecturally pleasing caps for pipe cleaning in wet areas
- Cover:
Stainless Steel Cal. 22 grade 304.
- Door Frame:

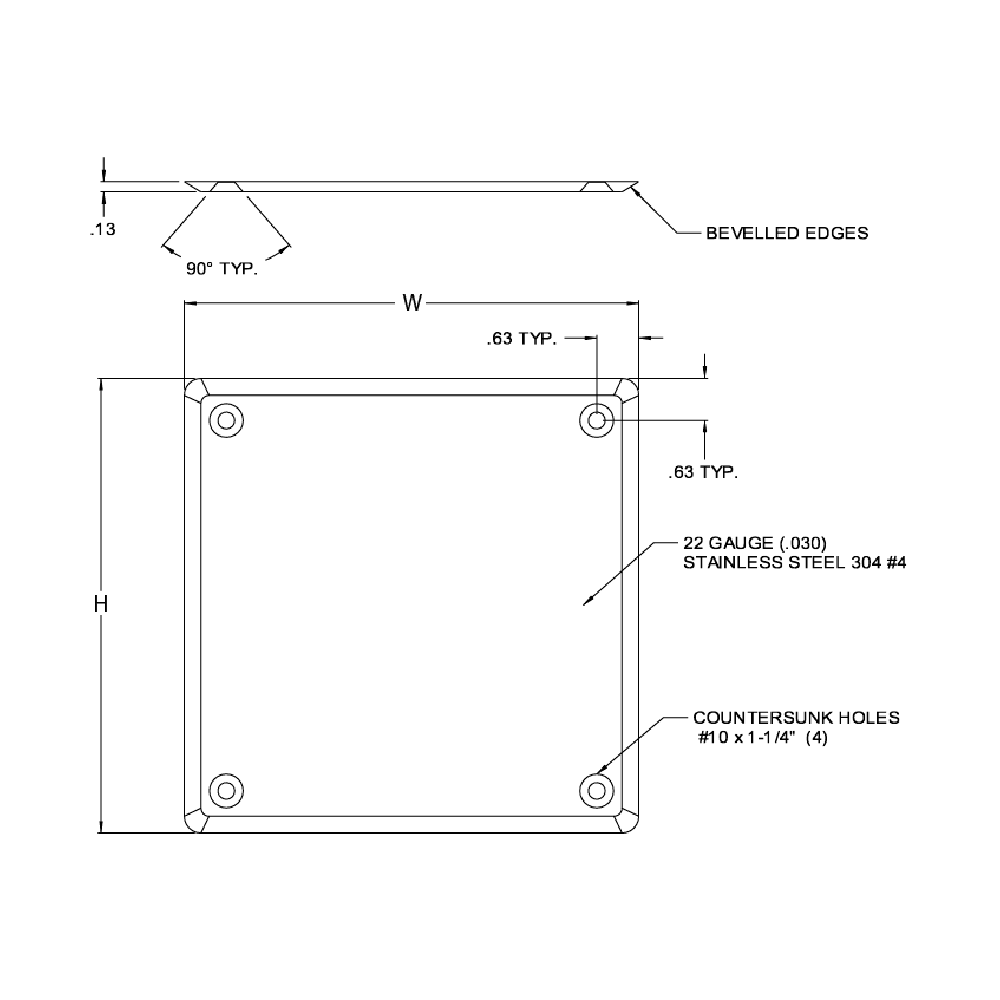

Square, beveled edges and rounded corners with countersunk holes in each corner for installation screws. 4 Pcs X Stainless Steel #10 x 1.250″ Oval Head Square Thread Screws Included
- Finishing:
Satin #4
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Door Size WyH | Wall Mounting | Weight per Door | |||
|---|---|---|---|---|---|
| Inch | mm | Inch | mm | Lbs. | kg. |
| 6 X 6 | 152 X 152 | 4 X 4 | 102 X 102 | 0.30 | 0.14 |
| 8 X 8 | 203 X 203 | 6 X 6 | 152 X 152 | 0.55 | 0.25 |
| 10 X 10 | 254 X 254 | 8 X 8 | 203 X 203 | 0.85 | 0.39 |
| 12 X 12 | 305 X 305 | 10 X 10 | 254 X 254 | 1.25 | 0.57 |
| 14 X 14 | 356 X 356 | 12 X 12 | 305 X 305 | 1.75 | 0.79 |
| 16 X 16 | 406 X 406 | 14 X 14 | 356 X 356 | 2.25 | 1.02 |
| 18 X 18 | 457 X 457 | 16 X 16 | 406 X 406 | 2.85 | 1.29 |
| 24 X 24 | 610 X 610 | 22 X 22 | 559 X 559 | 5.05 | 2.29 |
What is the value for you?
Stays flush with the installed surface for a seamless look
Versatile – suitable for installation on walls and ceilings on various surfaces, including masonry, plaster, drywall and tile
Accepts finish paint allowing it to blend into the surrounding surface
Available in multiple design options, including wet areas, corrosive environments, concealed frame, and removable door
Product Features
Anti-corrosive stainless steel ensures a long service life
Architecturally pleasing appearance in satin finish
Beveled edges with rounded corners ensure secure installation
Level countersunk mounting screws
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
