WD-8000

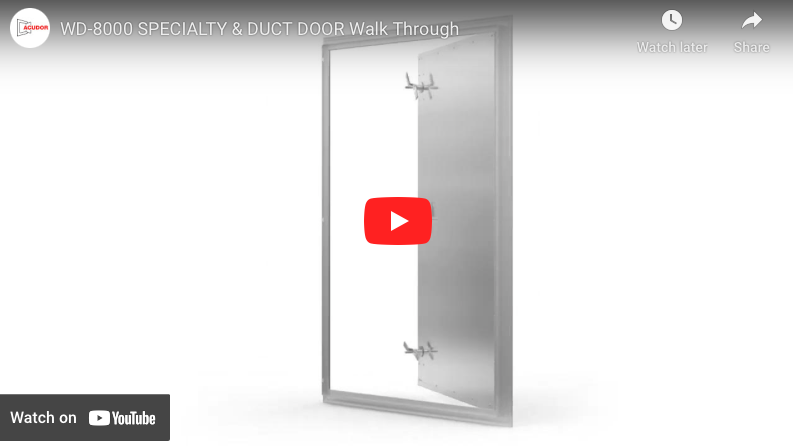

Acudor WD-8000 : Designed to provide convenient pass-through access for the working interior of ducts and air handling units. Low to medium pressure systems and plenums
- Material:
Galvanized steel, also available in Aluminum and Stainless Steel
- Material:
Galvanized steel, double panel
- Door:
24 Gauge
- Mounting Frame:
24-gauge with notched 5/8″ hangover tabs
- Packaging:
1/8 “thick by 1/2” wide closed-cell neoprene gaskets between door and frame and also between frame and duct
- Hinge:
Aluminum Continuous Piano Hinge
- Insulator:
Door panel filled with 2 “fiberglass insulation (factor 7.7 R) compressed to 1”.
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 24 X 36 | 610 X 914 | 21.0 | 9.5 |
| 24 X 48 | 610 X 1219 | 28.2 | 12.8 |
| 24 X 60 | 610 X 1524 | 33.8 | 15.3 |
| 24 X 72 | 610 X 1829 | 41.7 | 18.9 |
| 30 X 36 | 762 X 914 | 25.3 | 11.5 |
| 30 X 48 | 762 X 1219 | 36.2 | 16.4 |
| 30 X 60 | 762 X 1524 | 42.5 | 19.3 |
| 30 X 72 | 762 X 1829 | 80.6 | 36.6 |
The wall or ceiling opening is W + 3/8″ (9 mm)
For detailed specifications, see the presentation sheet
What is the value for you?
Designed for both Sheet Metal Ducting and Fiberglass Ducting
Available in multiple sizes and shapes to suit installation in Square, Rectangular and Circular Ducts
Flame Retardant Rated Grease Duct Doors are available
Designed for quick and hassle-free installation
Product Features
Plenums and low- to medium-pressure systems
Sturdy construction, along with a continuous hinge and compression handles
1″ thick fiberglass insulated filled door panel – 4 R value
Continuous steel piano hinge that opens 180°
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
