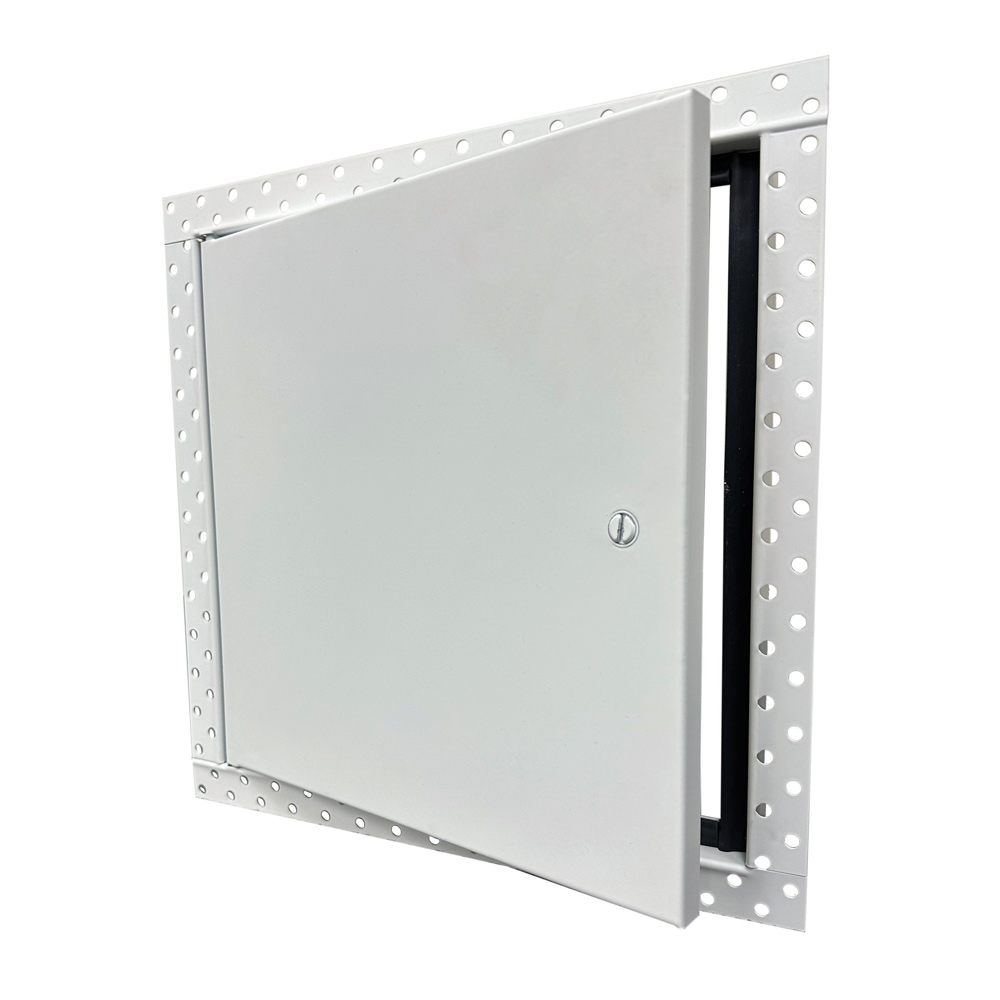

AS-9000-DW
Acudor AS-9000-DW : Designed to provide a completely sealed fit on all types of walls and ceilings. This door is commonly used in clean rooms, laboratories, operating rooms, etc.
- Door/Door Frame:
Stainless Steel or 18 Gauge Steel Door, 18 Gauge Mounting Frame, Flange is 1″ Wide
- Hinge:
Hidden
- Packaging:
Pemko S88 Adhesive Backed Bulb Silicone Gasket
- Standard Deadbolt:
Stainless Steel Cam Bolt Operated with Screwdriver
- Optional deadbolts/locks:
Cylinder and key lock, cam bolt for allen head, cam bolt for key
- Finishing:
Baked white primer coat (additional finishing paint recommended for increased corrosion resistance)
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size Door WyH | Weight Per Door | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 8 X 8 | 203 X 203 | 4.0 | 1.8 |
| 12 X 12 | 305 X 305 | 5.0 | 2.3 |
| 16 X 16 | 406 X 406 | 7.5 | 3.4 |
| 18 X 18 | 457 X 457 | 8.8 | 4.0 |
| 24 X 24 | 610 X 610 | 13.9 | 6.3 |
| 24 X 36 | 610 X 914 | 20.5 | 9.3 |
The wall opening is +3/8″ (9mm)
For detailed specifications, see the presentation sheet
What is the value for you?
Wide range of models designed for specialized applications, including flush doors, recessed, interior, exterior, airtight, waterproof, anti-ligature, acoustic, tile, marble, plaster, fan-coil doors, doors for Air Handling Units, Clean Rooms and Laboratories
The highest STC (Sound Transmission Class) and OITC (Outdoor to Indoor Transmission Class) acoustic ratings on the market
Custom designs available upon request, including automatic opening, inward opening, vandal-resistant, and special materials or finishes
Available in Aluminum, Steel, Stainless Steel, Galvanized Steel, Galvanneal Steel
Product Features
Designed to provide a seamless fit on all types of walls and ceilings
Formed door panel with reinforced edges and concealed hinge
Pemko S88 Adhesive Backed Bulb Silicone Packaging
Stainless steel screwdriver operated cam latch
