BP-2002

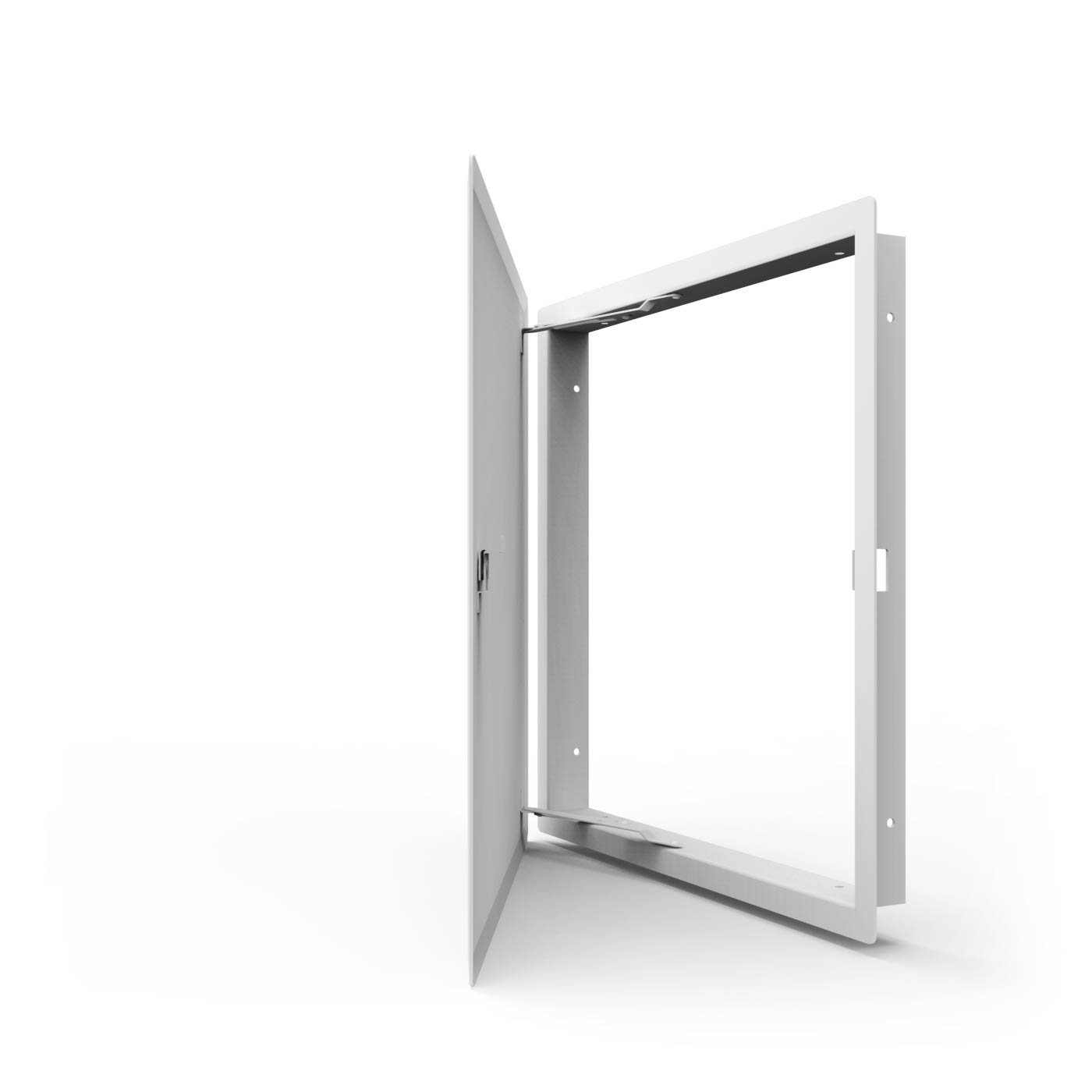

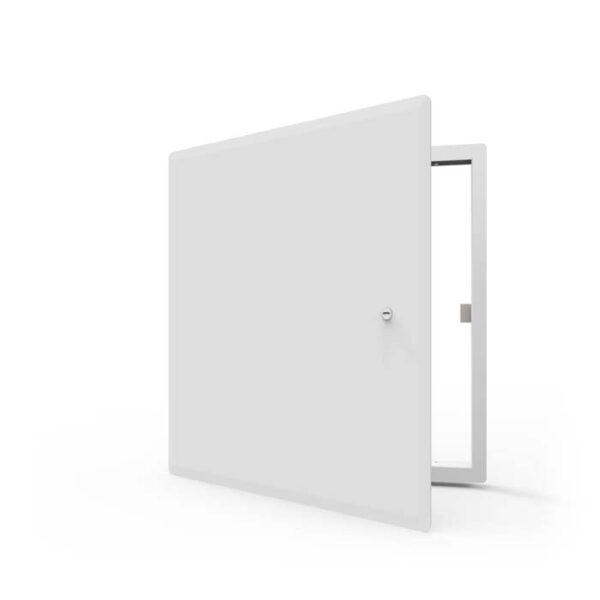

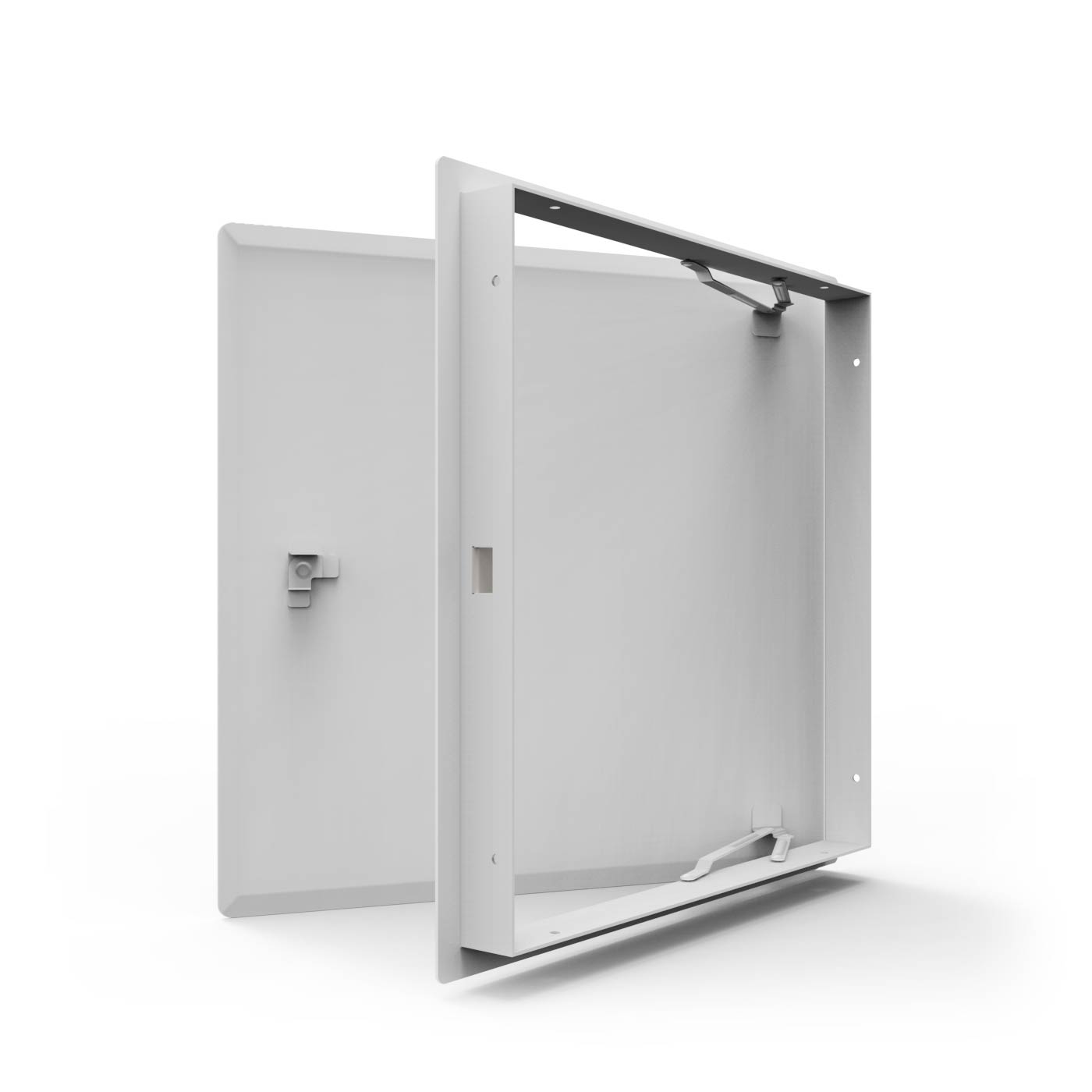

Acudor BP-2002 : Unique beveled door panel that overlaps with frame. Economical and attractive access door for walls and ceilings, ideally adapted for apartments, condominiums and office buildings
- Material:
15-gauge steel on door and frame
- Door:
Beveled edge door panel covers hinge and frame
- Door Frame:
Outer Flange 1/2″ Wide – Mounting Frame 1 1/2″ Deep
- Hinge:
Concealed Hinge
- Bolt:
Stainless Steel Cam Bolt Operated with Screwdriver
- Optional deadbolts/locks:
Optional Deadbolts/Locks: Cylinder & Key Lock, Allen Head Cam Deadbolt, Key Cam Bolt
- Finishing:
Baked white primer coat (additional finishing paint recommended for increased corrosion resistance)
Product Downloads
Specifications

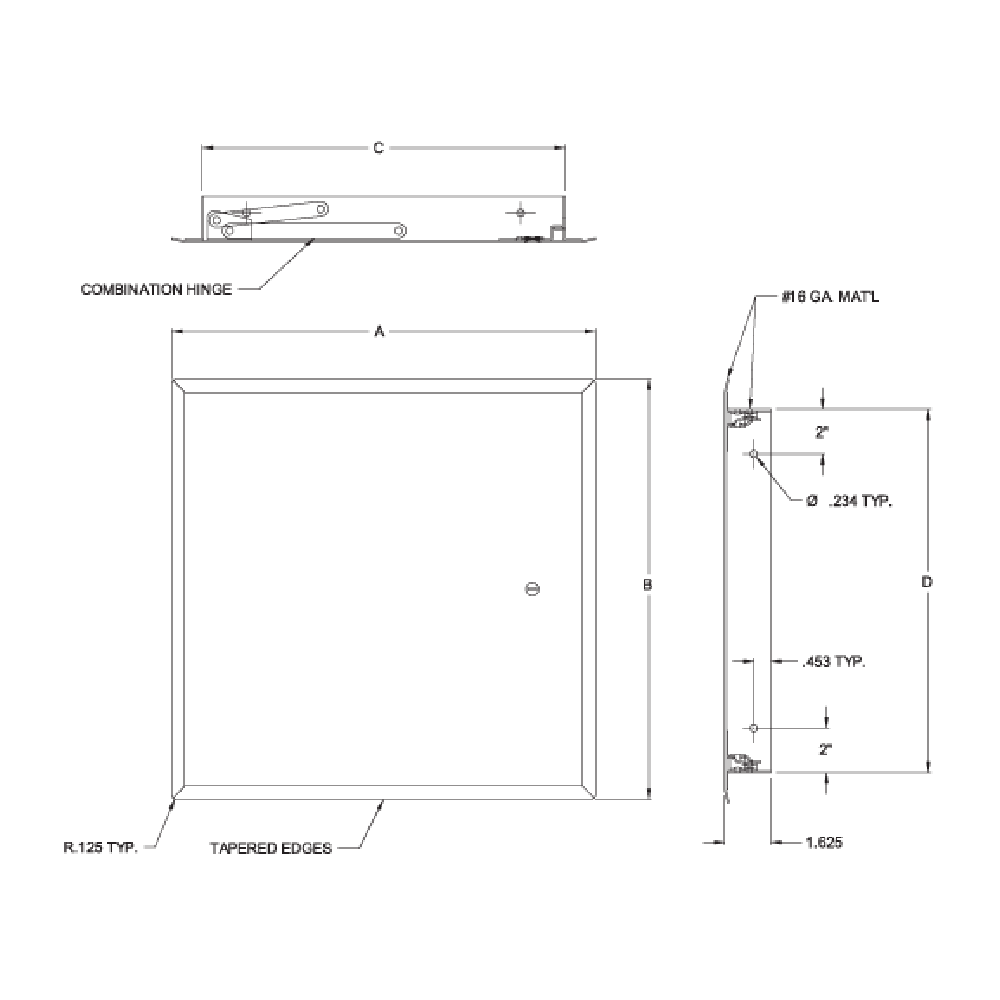

STANDARD SIZES
(other sizes available upon request)
| Nominal Door Size WyH | Weight per Door | ||
|---|---|---|---|
| In, | mm | , lbs.kg | . |
| 8 x 8 | 203 x 203 | 2.0 | 0.9 |
| 12 x 12 | 305 x 305 | 4.0 | 1.8 |
| 16 x 16 | 406 x 406 | 6.0 | 2.7 |
| 18 x 18 | 457 x 457 | 10.0 | 4.5 |
| 24 x 24 | 610 x 610 | 14.0 | 6.4 |
The wall opening is nominal door size + 3/8″ (9 mm).
For detailed specifications, see the presentation sheet
What is the value for you?
Stays flush with the installed surface for a seamless look
Versatile – suitable for installation on walls and ceilings on various surfaces, including masonry, plaster, drywall and tile
Accepts finish paint allowing it to blend into the surrounding surface
Available in multiple design options, including wet areas, corrosive environments, concealed frame, and removable door
Product Features
Installation on drywall, plaster, masonry, tile, or any flush surface
Beveled edge door panel covers hinge and frame
Concealed hinge
16 gauge steel frame and door
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
Contact us at
Do you have any questions about our products and services?
Please ask, we are here to assist you
