UF-5000
Acudor UF-5000 : Installation on drywall, plaster, masonry, tile or any level surface
- Material:
Up to 16 “X 16” – 16 gauge, 18 gauge mounting frame, Over 16 “X 16” – 14 gauge door, 16 gauge mounting frame
- Door:
At frame level with rounded safety corners
- Mounting Frame:
One-piece outer flange welded to the mounting frame
- Hinge:
Continuous, hidden
- Bolt:
Stainless Steel Cam Bolt Operated with Screwdriver
- Optional deadbolts/locks:
Cylinder and key lock, allen head cam bolt, key cam bolt
- Finishing:

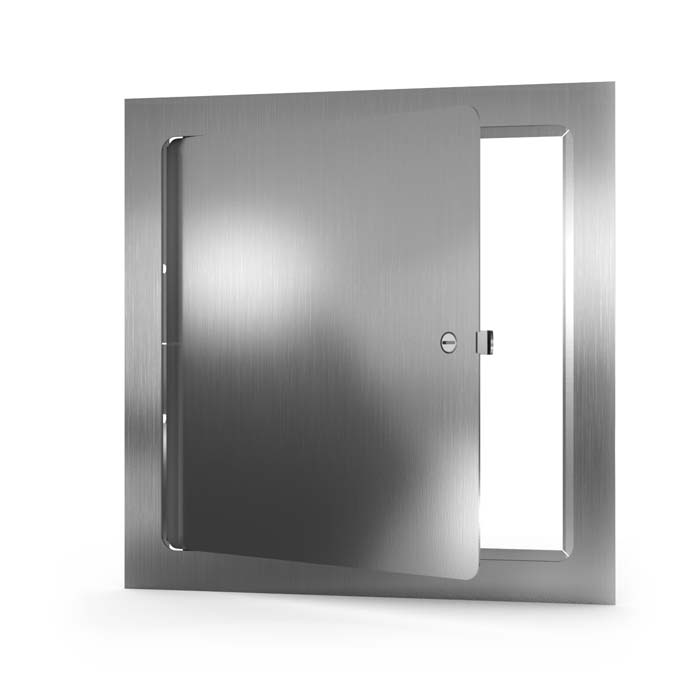

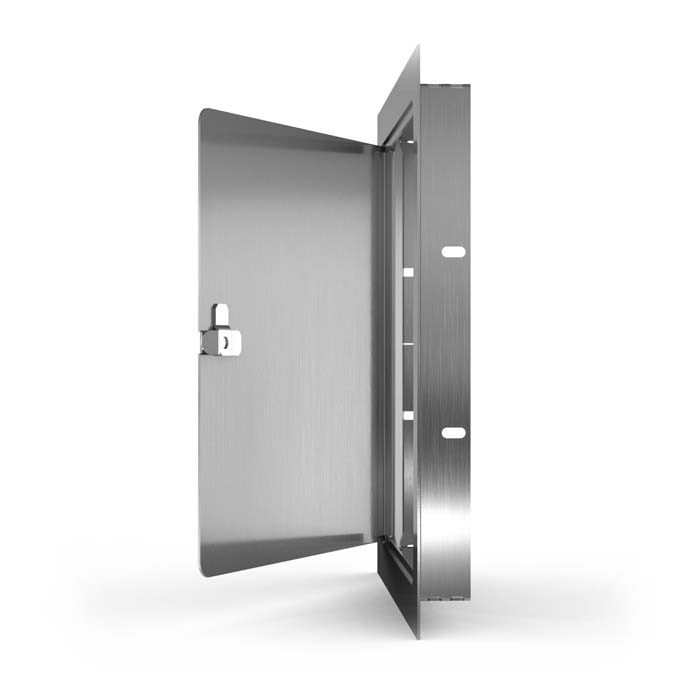

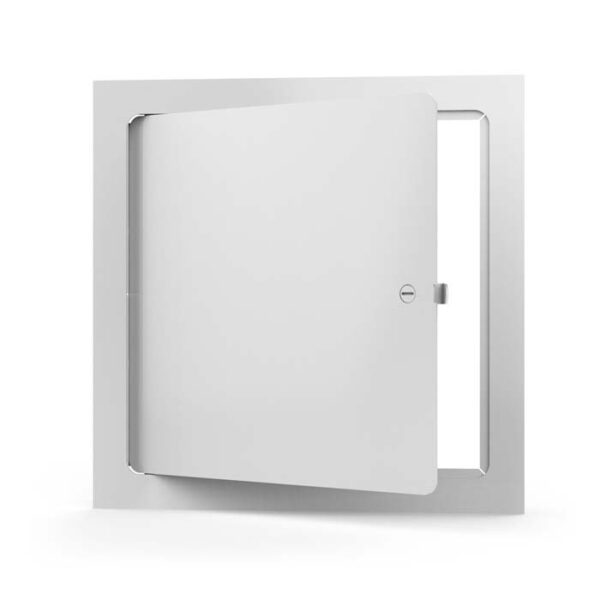

Steel: 5-stage iron phosphate preparation with baked white finish OR Stainless steel: Type 304 – satin polished #4
Product Downloads
Specifications
STANDARD SIZES
Other sizes available on request
| Nominal Size WyH | Door Deadbolt | Weight Per Door | ||
|---|---|---|---|---|
| In, | mm | , lbs.kg | . | |
| 6 X 6 | 152 X 152 | 1 | 1.95 | 0.9 |
| 8 X 8 | 203 X 203 | 1 | 2.5 | 1.1 |
| 8 X 12 | 203 X 305 | 1 | 3.4 | 1.5 |
| 10 X 10 | 254 X 254 | 1 | 3.4 | 1.5 |
| 12 X 12 | 305 X 305 | 1 | 4.6 | 2.1 |
| 12 X 16 | 305 X 406 | 2 | 5.7 | 2.6 |
| 12 X 18 | 305 X 457 | 2 | 7.4 | 3.4 |
| 12 X 24 | 305 X 610 | 2 | 10.4 | 4.7 |
| 14 X 14 | 356 X 356 | 1 | 5.8 | 2.6 |
| 16 X 16 | 406 X 406 | 2 | 7.4 | 3.4 |
| 16 X 24 | 406 X 610 | 2 | 12.4 | 5.6 |
| 18 X 18 | 457 X 457 | 2 | 10.8 | 4.9 |
| 18 X 24 | 457 X 610 | 2 | 12.2 | 5.5 |
| 22 X 22 | 560 X 560 | 4 | 15.3 | 6.9 |
| 22 X 30 | 560 X 762 | 5 | 22.3 | 10.1 |
| 22 X 36 | 560 X 914 | 5 | 27.9 | 12.7 |
| 24 X 24 | 610 X 610 | 4 | 17.7 | 8.0 |
| 24 X 30 | 610 X 762 | 5 | 23.5 | 10.7 |
| 24 X 36 | 610 X 914 | 5 | 27.9 | 12.7 |
| 24 X 48 | 610 X 1220 | 5 | 38.0 | 17.2 |
The wall or ceiling opening is W + 3/8″ (9 mm)

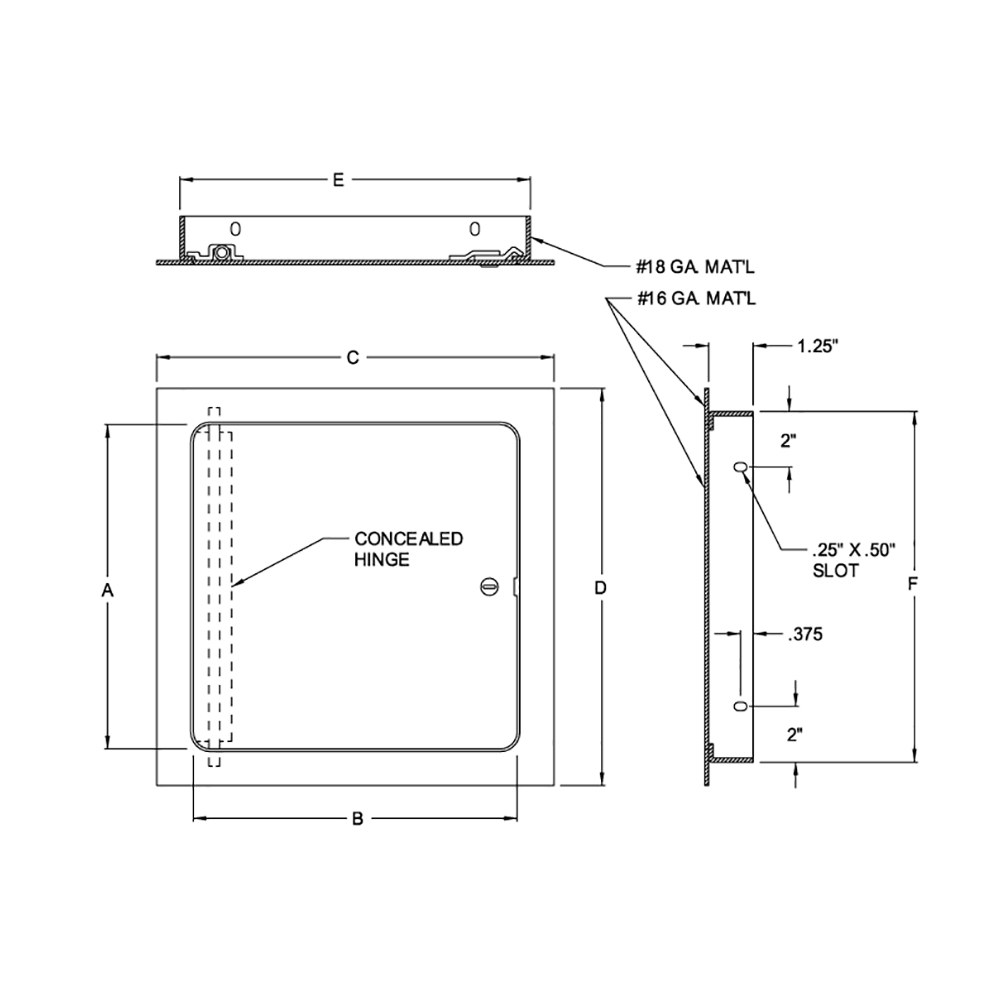

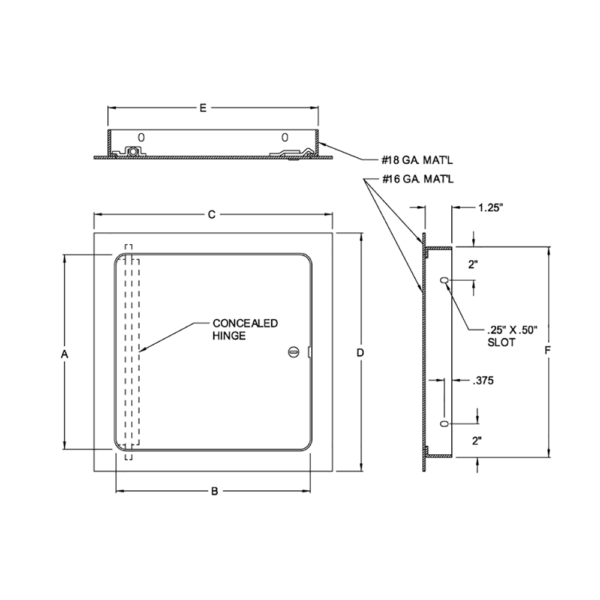

For detailed specifications, see the presentation sheet
What is the value for you?
Stays flush with the installed surface for a seamless look
Versatile – suitable for installation on walls and ceilings on various surfaces, including masonry, plaster, drywall and tile
Accepts finish paint allowing it to blend into the surrounding surface
Available in multiple design options, including wet areas, corrosive environments, concealed frame, and removable door
Product Features
Installation on drywall, plaster, masonry, tile, or any flush surface
The door panel has rounded safety corners that provide an architecturally pleasing appearance
One-piece trim flange will not warp, sag, or distort
Unique continuous concealed hinge that won’t join
Conclusions:
We have locally manufactured Mexican products with a quality that you can feel confident in any construction.
